Cofilin-induced unidirectional cooperative conformational changes in actin filaments revealed by high-speed atomic force microscopy

Abstract

High-speed atomic force microscopy was employed to observe structural changes in actin filaments induced by cofilin binding. Consistent with previous electron and fluorescence microscopic studies, cofilin formed clusters along actin filaments, where the filaments were 2-nm thicker and the helical pitch was ~25% shorter, compared to control filaments. Interestingly, the shortened helical pitch was propagated to the neighboring bare zone on the pointed-end side of the cluster, while the pitch on the barbed-end side was similar to the control. Thus, cofilin clusters induce distinctively asymmetric conformational changes in filaments. Consistent with the idea that cofilin favors actin structures with a shorter helical pitch, cofilin clusters grew unidirectionally toward the pointed-end of the filament. Severing was often observed near the boundaries between bare zones and clusters, but not necessarily at the boundaries.

Keywords: S. cerevisiae; actin; biochemistry; biophysics; cofilin; cooperative conformational change; dictyostelium; human; myosin; structural biology.

Figure 1.. HS-AFM observation of control and cofilin-bound actin filaments.

(A) Control actin filaments without cofilin. (B) Actin filaments fully bound with cofilin over an extended distance. (C) Paracrystals of actin filaments. Bars: 25 nm, Z-scale: 0–12 nm. (D and E) Histograms of peak heights (D) and lengths of half helical pitches (E) in control actin filaments and cofilin-decorated actin segments. N was between 1722 and 2536. (F) Half helical pitches of actin paracrystals (N = 1009). Solid lines show Gaussian fittings with confidence intervals of 99.73%. For comparison, the dark line in (F) shows the Gaussian fitting of control actin filaments. Measurements were made in F buffer containing 1 mM ATP (A), 1 mM ATP, and 75 nM cofilin (B) or 1 mM ATP and 30 mM MgCl₂ (C). Student's t-test comparing control and cofilin-decorated actin segments showed that the differences in peak heights and half helical pitches are statistically significant at p ≤ 0.00001. The mean of the half helical pitches of control actin filaments and paracrystals did not differ significantly. Models of control actin filaments and cofilin-decorated actin filaments with two different orientations on substrates are shown in Figure 1—figure supplement 1. DOI: http://dx.doi.org/10.7554/eLife.04806.003

Figure 1—figure supplement 1.. Models of control actin filaments and cofilin-decorated filaments on a flat substrate.

(A and B) show predicted peak heights of control actin filaments (PDB ID 3G37; Murakami et al. (2010)), and (C and D) show fully cofilin-decorated filaments (PDB ID 3J0S; Galkin et al. (2011)). These images were generated using Chimera software. When the true crossover point coincides with the position of an actin subunit (A) or a bound cofilin molecule (C), the position of the peak is equal to that of the crossover point, and its height is the tallest of the various possible orientations of the filament on the substrate. When the true crossover point is at the middle of two actin subunits (B) or two bound cofilin molecules (D), the peak height is the shortest of the possible orientations. In this latter case, the observed peak position is away from the true crossover point by as much as ∼2.5 nm. Depending on the orientation of the filament, therefore, the distance between the observed peak position and the true crossover point fluctuates between 0 and 2.5 nm. Random distribution of distances between the true crossover points and the highest points of the closest actin subunits would result in ±1.7 nm of error in the estimation of the positions of the true crossover points. If the peak positions at both ends of a half helix have this much error, the half helical pitch would have ±2.3 nm (±1.7 nm × √2) error. This is somewhat smaller than the ±3.0 nm standard deviation of the half helical pitches of actin filament paracrystals, and the difference should derive from small structural fluctuations in the paracrystals and/or measurement error from various other sources. In either case, it is safe to use the 3.0 nm standard deviation as the upper limit of the combined measurement errors and to estimate the lower limit of the structural fluctuations of control and cofilin-bound filaments. DOI: http://dx.doi.org/10.7554/eLife.04806.004

Figure 2.. Asymmetric structure of bare actin zones neighboring a cofilin cluster.

(A and B) HS-AFM image of a short cofilin cluster transiently associating with two S1 molecules (yellow arrowheads), which persisted for ∼1 s, enabling identification of the filament polarity (B). Measurements were made in F buffer containing 20 nM S1, 75 nM cofilin, 1 mM ADP, and 0.1 mM ATP. Bar: 25 nm; Z-scale: 0–12 nm. (C and D) Time-dependent changes in the heights of the indicated peaks (white arrowheads) and half helical pitches between the indicated peaks. (E and F) Histograms of the lengths of the half helical pitches of bare actin segments immediately neighboring cofilin clusters. Filaments were incubated in F buffer containing 1 mM ADP and 0.1 mM ATP for 5 min before observation (E) as in (A and B) or were incubated in F buffer containing 1 mM ADP for 30 min before observation (F). Pitches of the half helices of the first immediate neighbor on each side of cofilin clusters were measured. These values, together with those for the second neighbors, are summarized in Table 1. DOI: http://dx.doi.org/10.7554/eLife.04806.005

Figure 3.. Actin filaments with bound cofilin or cofilin-rod fusion protein.

(A–C) are electron micrographs of negatively stained samples, and (D) is a HS-AFM image of a sample similar to that shown in (B). (A) Actin filaments bound with cofilin-rod. Arrowheads show crossover points in clusters of cofilin-rod. The rod portions of the fusion proteins are not readily visible, which may be due to alignment of the rods along the cofilin clusters. Severing activity and stoichiometric binding of cofilin-rod to actin filaments were confirmed by HS-AFM (Video 1) and co-sedimentation assays (Figure 3—figure supplement 3), respectively. (B) Cofilin-rod molecules sparsely bound to actin filaments, identified by the rod-like structures (black arrowheads). (C) Actin filaments with bound cofilin molecules (without rod fusion). Arrowheads show crossover points in clusters. Actin filaments and cofilin or cofilin-rod were mixed at a 2:1 (A and C) or 1:1 (B) molar ratio in F buffer containing 1 mM ATP. Bars: 25 nm. (D) HS-AFM image of an actin filament and an apparently singly bound cofilin-rod molecule (blue arrowhead in the upper image) near P2 (white arrowhead). Conditions: F buffer containing 1 mM ATP and 75 nM cofilin-rod (without His-tag). Bar: 25 nm. See Video 2. (E) shows heights of the three peaks and (F) shows spacing between them. DOI: http://dx.doi.org/10.7554/eLife.04806.007

Figure 3—figure supplement 1.. Co-sedimentation of cofilin (with or without His-tag) with actin filaments.

(A and B) are SDS-PAGE of supernatant and pellet fractions after ultracentrifugation of mixtures of various concentrations of cofilin with (A) or without (B) His-tag and 1 µM actin filaments, respectively. Acrylamide concentration of the gel was 12%. His-tag was removed by incubation with 1/4 (wt/wt) of His-tagged TEV protease overnight at 5°C and then passed through a Ni-column in the presence of 10 mM imidazole. Lanes 1 to 4 in (C) show His-TEV protease, mixture of His-cofilin and His-TEV after reaction over night, His-cofilin, and the reaction mixture that flowed through a Ni-NTA column (i.e., cofilin without His-tag). Co-sedimentation experiments were performed as follows. Frozen aliquots of cofilin (±His-tag) and rabbit skeletal actin were thawed on ice for 1 hr and were then clarified by ultracentrifugation at 80,000 rpm for 5 min at 5°C. The supernatant was collected, and protein concentrations were measured using Advanced Protein Assay reagent (Cytoskeleton). Actin filaments were prepared by polymerization of G-actin (20 µM) in F buffer containing 1 mM ATP on ice for 30 min. The filaments formed were diluted to 1 µM and gently mixed with the cofilin (±His-tag) of various concentrations (i.e., 0.1, 0.5, 1, and 2 µM) in F buffer containing 1 mM ATP. These protein mixtures were further incubated for 3–5 min at room temperature, followed by ultracentrifugation at 80,000 rpm for 5 min at 25°C. Supernatant and pellet fractions were separately run on a SDS-polyacrylamide gel and stained with Coomassie Blue. Control experiments were performed in the same manner using either 1 µM actin filament only or 2 µM cofilin or its derivative only. DOI: http://dx.doi.org/10.7554/eLife.04806.008

Figure 3—figure supplement 2.. Actin binding curves of cofilin and cofilin without His tag.

Band intensities of gels shown in Figure 3—figure supplement 1 were quantified, and fractions of actin-bound with cofilin ([cofilin]_ppt/[actin]_ppt) were shown as a function of free cofilin concentration ([cofilin]_sup). Mean ± SD are shown (N = 3). DOI: http://dx.doi.org/10.7554/eLife.04806.009

Figure 3—figure supplement 3.. Co-sedimentation of cofilin-rod with (+) and without (−) His-tag.

(A and B) SDS-PAGE analysis of binding of cofilin-rod with and without His-tag to actin filaments, respectively. Experiments were carried out in F buffer containing 1 mM ATP, and protein concentrations used are shown above each gel. Cleavage of His-tag by TEV protease was performed as described in the legend to Figure 3—figure supplement 1. Acrylamide concentration of the gel was 10%. DOI: http://dx.doi.org/10.7554/eLife.04806.010

Figure 3—figure supplement 4.. Representative still images from Video 1, demonstrating cluster formation and severing function of cofilin-rod without His-tag.

Red arrowheads: severing points in end half helices in cofilin clusters; white arrowheads: cofilin-rod clusters. Z-scale: 0–12 nm. Scale bar: 25 nm. DOI: http://dx.doi.org/10.7554/eLife.04806.011

Figure 4.. Growth of cofilin clusters along actin filaments.

Growth of cofilin clusters along actin filaments in F buffer containing 1 mM ADP and 0.1 mM ATP (A), along actin filaments carrying ADP, prepared by incubating filaments in F buffer containing 1 mM ADP, hexokinase, and glucose at room temperature for 30 min (B), and along actin filaments carrying ADP and Pi, prepared by incubating filaments in 1 mM ADP and 10 mM Pi for 10 min at room temperature (C). The concentrations of cofilin were 75 nM (A and B) or 900 nM (C) and those of S1 were 20 nM (A and B) or 150 nM (C). Each panel consists of four sequential snapshots (top), a figure showing the heights of the indicated peaks (middle), and the half helical pitches between the indicated peaks (bottom). Yellow arrowheads show the transient association of S1. Note that P1 in (A) and P3 in (B) rose in two substeps. Bars: 25 nm; Z-scale: 0–12 nm. DOI: http://dx.doi.org/10.7554/eLife.04806.014

Figure 5.. Directional preference of the growth of cofilin clusters.

The growth of cofilin clusters was observed under three buffer conditions: in the presence of 1 mM ADP and 0.1 mM ATP (+ADP +ATP); 1 mM ADP (+ADP) and 1 mM ADP and 10 mM Pi (+ADP +Pi), as in Figure 4. Growth of a cluster by one-half helix was counted as one growth event. The total number of observed growth events was 37, 46, and 188 for each condition. We speculate that at least some of the cluster growth events in the barbed-end direction were actually growth in the preferred direction from invisibly small clusters on the barbed side of a visible cluster. DOI: http://dx.doi.org/10.7554/eLife.04806.018

Figure 6.. Severing of actin filaments near cofilin clusters.

(A–C) Typical cases of filament severing (red arrowheads) within or near cofilin clusters (white arrowheads). The observation buffers were F-buffer containing 1 mM ADP (A and C) and 1 mM ATP (B). Concentration of cofilin was 40 nM (A and C) and 75 nM. The first break in (A) was inside a cluster, while the second was at or near the junction between a bare zone and a cluster. Red, blue, and green arrowheads show severing points within cofilin clusters, in bare zone close to cofilin clusters, and in bare zones more than half a helix away from a cofilin cluster, while white arrowheads show cofilin clusters. Bars: 25 nm; Z-scale: 0–12 nm. See Videos 6–8. (D) Classification of severing sites into four categories: (1) in ‘far’ bare zone (between a tall and a short black arrow or between two short black arrows, indicated by green bars in (E)); (2) in bare zone half helices immediately neighboring a cofilin cluster (between a tall black and a tall orange arrow, indicated by blue bars in (E)); (3) in ‘end’ cofilin cluster half helices immediately neighboring bare zones (between a tall and a short orange arrow, indicated by red bars in (E)); and (4) in ‘inner’ cofilin cluster half helices (between two short orange arrows, indicated by a red bar in (E)). Comparison of the last two categories demonstrates that severing within cofilin clusters occurs preferentially near the ends. Note, however, that this comparison does not necessarily show a quantitative difference in the susceptibility to severing between end and inner half helices, since the number of end and inner helices examined are not the same. (E) A schematic summary of the proposed distributions of bound cofilin molecules (red spheres), segments of normal (yellow) and shortened (orange) helical pitch, and normal (black arrows) and tall (orange arrows) crossover points. Free cofilin molecules tend to bind to the supertwisted bare zone on the pointed-end side of the cluster (gray arrows), driving the growth of the cluster in the pointed-end direction. This is most certainly an oversimplification, ignoring a number of complex issues, some of which are discussed in the main text. DOI: http://dx.doi.org/10.7554/eLife.04806.019

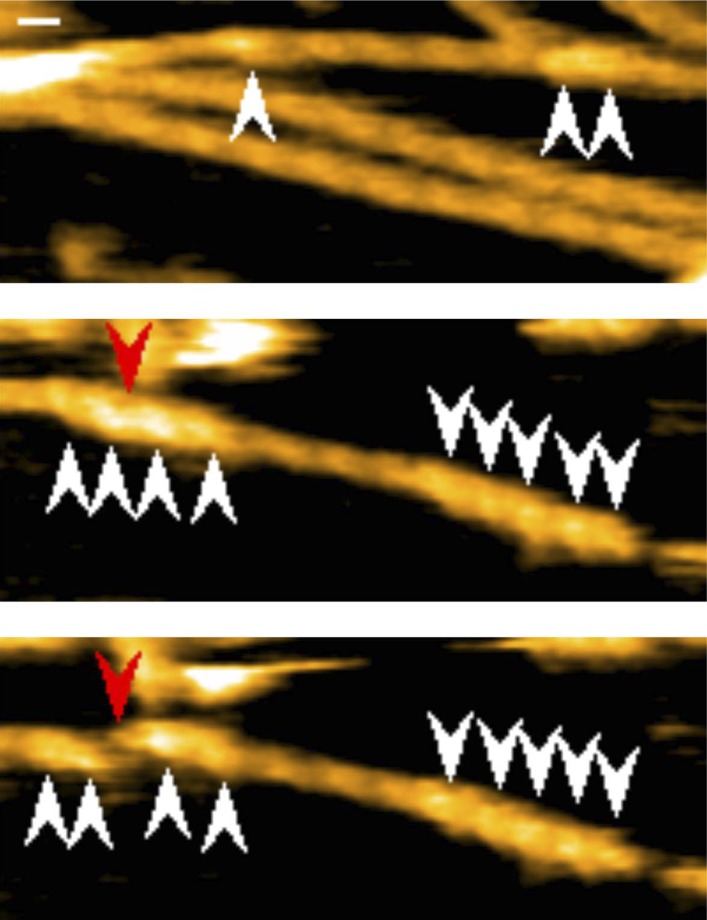

Figure 6—figure supplement 1.. Representative still images from Video 9, demonstrating severing of actin filaments by cofilin with His-tag.

Red, blue, and green arrowheads indicate severing in half helices in cofilin clusters, in a bare half helix immediately neighboring a cofilin cluster, and in bare zones more than half a helix away from cofilin clusters, respectively. White arrowheads: cofilin clusters. Numbers (1–10) refer to the sequence number in the video. Z-scale: 0–12 nm. Scale bar: 25 nm. DOI: http://dx.doi.org/10.7554/eLife.04806.020

Figure 6—figure supplement 2.. Representative still images from Video 10, showing severing of actin filaments by cofilin without His-tag.

Red, blue, and green arrowheads indicate severing in half helices in cofilin clusters, in a bare half helix immediately neighboring a cofilin cluster, and in bare zones more than half a helix away from cofilin clusters, respectively. White arrowheads: cofilin clusters. Numbers (1–7) refer to the sequence number in the video. Z-scale: 0–12 nm. Scale bar: 25 nm. DOI: http://dx.doi.org/10.7554/eLife.04806.021

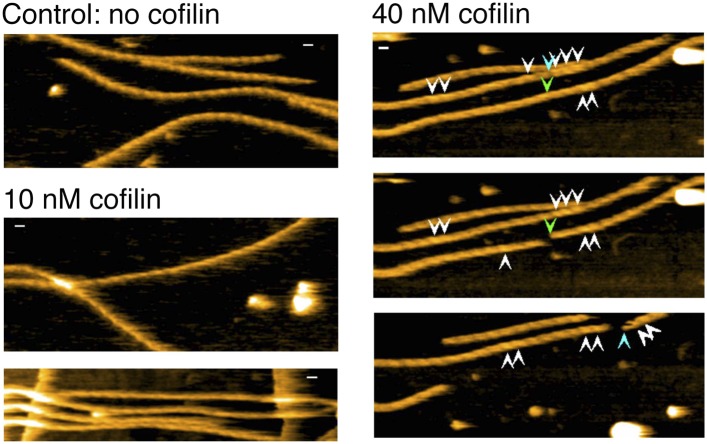

Figure 6—figure supplement 3.. Representative still images from Video 11, showing severing of actin filaments in the presence and absence of low concentration of cofilin.

Blue arrowheads: severing in a bare half helix immediately neighboring a cofilin cluster; green arrowheads: severing in bare zones more than half a helix away from cofilin clusters; white arrowheads: cofilin clusters. Z-scale: 0–12 nm. Scale bar: 25 nm. DOI: http://dx.doi.org/10.7554/eLife.04806.022

Figure 6—figure supplement 4.. Representative still images from Video 12, showing severing in actin filaments decorated with high concentrations of cofilin.

Red arrowheads: severing in half helices in cofilin clusters; blue arrowheads: severing in a bare half helix immediately neighboring a cofilin cluster; white arrowheads: cofilin clusters. Z-scale: 0–12 nm. Scale bar: 25 nm. DOI: http://dx.doi.org/10.7554/eLife.04806.023
