. 2015 Feb 4;7(273):273ra14.

doi: 10.1126/scitranslmed.3009951.

Local iontophoretic administration of cytotoxic therapies to solid tumors

James D Byrne¹, Mohammad R N Jajja², Adrian T O'Neill², Lissett R Bickford², Amanda W Keeler³, Nabeel Hyder⁴, Kyle Wagner⁴, Allison Deal⁵, Ryan E Little⁶, Richard A Moffitt², Colleen Stack⁷, Meredith Nelson², Christopher R Brooks⁸, William Lee⁹, J Chris Luft¹⁰, Mary E Napier², David Darr², Carey K Anders¹¹, Richard Stack¹², Joel E Tepper¹³, Andrew Z Wang¹³, William C Zamboni¹⁴, Jen Jen Yeh¹⁵, Joseph M DeSimone¹⁶

Affiliations

¹ Division of Molecular Pharmaceutics, Eshelman School of Pharmacy, University of North Carolina at Chapel Hill, Chapel Hill, NC 27599, USA. School of Medicine, University of North Carolina at Chapel Hill, Chapel Hill, NC 27599, USA.
² Lineberger Comprehensive Cancer Center, University of North Carolina at Chapel Hill, Chapel Hill, NC 27599, USA.
³ Division of Pharmacotherapy and Experimental Therapeutics, Eshelman School of Pharmacy, University of North Carolina at Chapel Hill, Chapel Hill, NC 27599, USA.
⁴ Department of Radiation Oncology, University of North Carolina at Chapel Hill, Chapel Hill, NC 27599, USA.
⁵ Lineberger Comprehensive Cancer Center Biostatistics and Clinical Data Management Core, University of North Carolina at Chapel Hill, Chapel Hill, NC 27599, USA.
⁶ School of Medicine, University of North Carolina at Chapel Hill, Chapel Hill, NC 27599, USA.
⁷ Lineberger Comprehensive Cancer Center, University of North Carolina at Chapel Hill, Chapel Hill, NC 27599, USA. School of Medicine, Duke University, Durham, NC 27708, USA. Synecor LLC, Chapel Hill, NC 27517, USA.
⁸ Department of Exercise and Sport Science, University of North Carolina at Chapel Hill, Chapel Hill, NC 27599, USA.
⁹ Department of Chemistry, University of North Carolina at Chapel Hill, Chapel Hill, NC 27599, USA.
¹⁰ Division of Molecular Pharmaceutics, Eshelman School of Pharmacy, University of North Carolina at Chapel Hill, Chapel Hill, NC 27599, USA. Lineberger Comprehensive Cancer Center, University of North Carolina at Chapel Hill, Chapel Hill, NC 27599, USA.
¹¹ Lineberger Comprehensive Cancer Center, University of North Carolina at Chapel Hill, Chapel Hill, NC 27599, USA. Division of Hematology/Oncology, Department of Medicine, University of North Carolina at Chapel Hill, Chapel Hill, NC 27599, USA.
¹² Lineberger Comprehensive Cancer Center, University of North Carolina at Chapel Hill, Chapel Hill, NC 27599, USA. Synecor LLC, Chapel Hill, NC 27517, USA. Division of Cardiology, Department of Medicine, Duke University, Durham, NC 27708, USA.
¹³ Lineberger Comprehensive Cancer Center, University of North Carolina at Chapel Hill, Chapel Hill, NC 27599, USA. Department of Radiation Oncology, University of North Carolina at Chapel Hill, Chapel Hill, NC 27599, USA.
¹⁴ Lineberger Comprehensive Cancer Center, University of North Carolina at Chapel Hill, Chapel Hill, NC 27599, USA. Division of Pharmacotherapy and Experimental Therapeutics, Eshelman School of Pharmacy, University of North Carolina at Chapel Hill, Chapel Hill, NC 27599, USA.
¹⁵ Lineberger Comprehensive Cancer Center, University of North Carolina at Chapel Hill, Chapel Hill, NC 27599, USA. Division of Surgical Oncology, Department of Surgery, University of North Carolina at Chapel Hill, Chapel Hill, NC 27599, USA. Department of Pharmacology, University of North Carolina at Chapel Hill, Chapel Hill, NC 27599, USA. jen_jen_yeh@med.unc.edu desimone@unc.edu.
¹⁶ Division of Molecular Pharmaceutics, Eshelman School of Pharmacy, University of North Carolina at Chapel Hill, Chapel Hill, NC 27599, USA. Lineberger Comprehensive Cancer Center, University of North Carolina at Chapel Hill, Chapel Hill, NC 27599, USA. Department of Chemistry, University of North Carolina at Chapel Hill, Chapel Hill, NC 27599, USA. Department of Pharmacology, University of North Carolina at Chapel Hill, Chapel Hill, NC 27599, USA. Department of Chemical and Biomolecular Engineering, North Carolina State University, Raleigh, NC 27695, USA. jen_jen_yeh@med.unc.edu desimone@unc.edu.

PMID: 25653220
PMCID: PMC4545246
DOI: 10.1126/scitranslmed.3009951

Local iontophoretic administration of cytotoxic therapies to solid tumors

James D Byrne et al. Sci Transl Med. 2015.

. 2015 Feb 4;7(273):273ra14.

doi: 10.1126/scitranslmed.3009951.

Authors

Affiliations

¹ Division of Molecular Pharmaceutics, Eshelman School of Pharmacy, University of North Carolina at Chapel Hill, Chapel Hill, NC 27599, USA. School of Medicine, University of North Carolina at Chapel Hill, Chapel Hill, NC 27599, USA.
² Lineberger Comprehensive Cancer Center, University of North Carolina at Chapel Hill, Chapel Hill, NC 27599, USA.
³ Division of Pharmacotherapy and Experimental Therapeutics, Eshelman School of Pharmacy, University of North Carolina at Chapel Hill, Chapel Hill, NC 27599, USA.
⁴ Department of Radiation Oncology, University of North Carolina at Chapel Hill, Chapel Hill, NC 27599, USA.
⁵ Lineberger Comprehensive Cancer Center Biostatistics and Clinical Data Management Core, University of North Carolina at Chapel Hill, Chapel Hill, NC 27599, USA.
⁶ School of Medicine, University of North Carolina at Chapel Hill, Chapel Hill, NC 27599, USA.
⁷ Lineberger Comprehensive Cancer Center, University of North Carolina at Chapel Hill, Chapel Hill, NC 27599, USA. School of Medicine, Duke University, Durham, NC 27708, USA. Synecor LLC, Chapel Hill, NC 27517, USA.
⁸ Department of Exercise and Sport Science, University of North Carolina at Chapel Hill, Chapel Hill, NC 27599, USA.
⁹ Department of Chemistry, University of North Carolina at Chapel Hill, Chapel Hill, NC 27599, USA.
¹⁰ Division of Molecular Pharmaceutics, Eshelman School of Pharmacy, University of North Carolina at Chapel Hill, Chapel Hill, NC 27599, USA. Lineberger Comprehensive Cancer Center, University of North Carolina at Chapel Hill, Chapel Hill, NC 27599, USA.
¹¹ Lineberger Comprehensive Cancer Center, University of North Carolina at Chapel Hill, Chapel Hill, NC 27599, USA. Division of Hematology/Oncology, Department of Medicine, University of North Carolina at Chapel Hill, Chapel Hill, NC 27599, USA.
¹² Lineberger Comprehensive Cancer Center, University of North Carolina at Chapel Hill, Chapel Hill, NC 27599, USA. Synecor LLC, Chapel Hill, NC 27517, USA. Division of Cardiology, Department of Medicine, Duke University, Durham, NC 27708, USA.
¹³ Lineberger Comprehensive Cancer Center, University of North Carolina at Chapel Hill, Chapel Hill, NC 27599, USA. Department of Radiation Oncology, University of North Carolina at Chapel Hill, Chapel Hill, NC 27599, USA.
¹⁴ Lineberger Comprehensive Cancer Center, University of North Carolina at Chapel Hill, Chapel Hill, NC 27599, USA. Division of Pharmacotherapy and Experimental Therapeutics, Eshelman School of Pharmacy, University of North Carolina at Chapel Hill, Chapel Hill, NC 27599, USA.
¹⁵ Lineberger Comprehensive Cancer Center, University of North Carolina at Chapel Hill, Chapel Hill, NC 27599, USA. Division of Surgical Oncology, Department of Surgery, University of North Carolina at Chapel Hill, Chapel Hill, NC 27599, USA. Department of Pharmacology, University of North Carolina at Chapel Hill, Chapel Hill, NC 27599, USA. jen_jen_yeh@med.unc.edu desimone@unc.edu.
¹⁶ Division of Molecular Pharmaceutics, Eshelman School of Pharmacy, University of North Carolina at Chapel Hill, Chapel Hill, NC 27599, USA. Lineberger Comprehensive Cancer Center, University of North Carolina at Chapel Hill, Chapel Hill, NC 27599, USA. Department of Chemistry, University of North Carolina at Chapel Hill, Chapel Hill, NC 27599, USA. Department of Pharmacology, University of North Carolina at Chapel Hill, Chapel Hill, NC 27599, USA. Department of Chemical and Biomolecular Engineering, North Carolina State University, Raleigh, NC 27695, USA. jen_jen_yeh@med.unc.edu desimone@unc.edu.

PMID: 25653220
PMCID: PMC4545246
DOI: 10.1126/scitranslmed.3009951

Abstract

Parenteral and oral routes have been the traditional methods of administering cytotoxic agents to cancer patients. Unfortunately, the maximum potential effect of these cytotoxic agents has been limited because of systemic toxicity and poor tumor perfusion. In an attempt to improve the efficacy of cytotoxic agents while mitigating their side effects, we have developed modalities for the localized iontophoretic delivery of cytotoxic agents. These iontophoretic devices were designed to be implanted proximal to the tumor with external control of power and drug flow. Three distinct orthotopic mouse models of cancer and a canine model were evaluated for device efficacy and toxicity. Orthotopic patient-derived pancreatic cancer xenografts treated biweekly with gemcitabine via the device for 7 weeks experienced a mean log2 fold change in tumor volume of -0.8 compared to a mean log2 fold change in tumor volume of 1.1 for intravenous (IV) gemcitabine, 3.0 for IV saline, and 2.6 for device saline groups. The weekly coadministration of systemic cisplatin therapy and transdermal device cisplatin therapy significantly increased tumor growth inhibition and doubled the survival in two aggressive orthotopic models of breast cancer. The addition of radiotherapy to this treatment further extended survival. Device delivery of gemcitabine in dogs resulted in more than 7-fold difference in local drug concentrations and 25-fold lower systemic drug levels than the IV treatment. Overall, these devices have potential paradigm shifting implications for the treatment of pancreatic, breast, and other solid tumors.

PubMed Disclaimer

Conflict of interest statement

Competing interests: J.D.B., M.E.N., J.J.Y., and J.M.D. have filed one patent related to the device PCT/US2010/025416. All other authors declare that they have no competing interests or patents to disclose.

Figures

**Fig. 1. Iontophoretic devices used for the delivery of cytotoxic agents to solid tumors**
(A) Front and side images of the implantable and transdermal devices. (B) Device components and assemblies. (C) Device treatment setups in the pancreatic (implanted device) and breast (transdermal device) cancer models where the drug is supplied to the device, using a syringe pump and electrical current via a DC power supply. Positive and negative leads connect to the device and counter electrode, respectively. (D) Device parameters of drug concentration (at constant current and time) and applied current (at constant concentration and time) were evaluated in mice with patient-derived pancreatic cancer xenografts. Data are means ± SD (n = 5). P values were determined by one-way ANOVA with unpaired t test. (E) Role of current on drug transport in ex vivo tumor and human skin tissue. Gemcitabine transport through PDX tumor tissue was evaluated by applying a current of 2 or 0 mA for 10 min and comparing drug transport into tumor. Data are means ± SD (n = 6). Cisplatin transport into human skin was evaluated by applying a current of 1 or 0 mA for 25 min and comparing drug transport into and through the skin. Data are means ± SD (n = 5). P values were determined by unpaired t test. NS, not significant.

**Fig. 2. PK of gemcitabine and cisplatin delivered by iontophoretic devices in mouse models of human pancreatic and breast cancers**
Iontophoretic device delivery was compared with IV delivery. PK of gemcitabine (20 mg/ml) delivered by device compared to IV was evaluated in an orthotopic PDX model of pancreatic cancer. Mice were administered a single treatment of gemcitabine through the device. Organs were collected from each animal at various times, and total gemcitabine concentrations were analyzed. Data are means ± SD (n = 3 to 5 animals per group). The limit of gemcitabine quantitation was 1 μg/ml. P values were determined by unpaired t test. PK of cisplatin delivered by device compared to IV and device + IV was evaluated in SUM149 orthotopic xenografts of breast cancer. Mice were administered a single treatment of cisplatin. Organs were collected from each animal at various times, and total platinum concentrations were analyzed. Data are means ± SD (n = 5 animals per group). The limit of platinum quantitation was 5 ng/ml. P values were determined by one-way ANOVA with unpaired t test comparing device cisplatin and device + IV cisplatin.

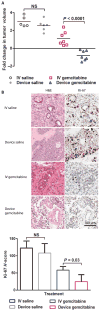

**Fig. 3. Therapeutic effect of gemcitabine delivered iontophoretically in a pancreatic cancer PDX model**
(A) Efficacy of device gemcitabine, IV gemcitabine, device saline, and IV saline in PDX mice treated twice per week for 7 weeks. Data are fold change in tumor volume (log₂) (n = 7 for IV and device gemcitabine, n = 5 to 6 for IV and device saline). (B) Histological staining of representative tumors in (A) for Ki-67. Ki-67 staining was quantified according to H-score. P values were determined by one-way ANOVA with unpaired t test.

**Fig. 4. Therapeutic effect of cisplatin delivered iontophoretically in mouse tumor xenograft and syngeneic models of breast cancer**
(A) Treatment schedule according to mouse model. (B) Efficacy and survival of animals treated with device cisplatin, IV cisplatin (5 mg/kg), device + IV cisplatin (5 mg/kg), device saline, and IV saline. SUM149 tumor xenografts were treated once per week for a total of four doses (n = 8 to 9 per treatment group). T11 syngeneic tumors were treated once per week for a total of two doses (n = 9 per treatment group). The study endpoint was time to tumor progression to 2.0 cm in one dimension. Volume data are means ± SD. (C) Representative images of murine skin before and after 4 weeks of transdermal device treatment. (D) γH2AX staining of tumors harvested from SUM149 xenografts 24 hours after a single treatment. γH2AX staining was quantified according to H-score. P values were determined by one-way ANOVA with unpaired t test. (E) Efficacy and survival of animals with T11 syngeneic tumors after a single treatment of radiation (dose), device cisplatin, device cisplatin + radiation, IV cisplatin (dose), IV cisplatin (dose) + radiation, device + IV cisplatin, or device + IV cisplatin + radiation. Data are mean tumor volumes ± SEM (n = 8 per treatment group). P values for tumor growth inhibition were determined by one-way ANOVA with unpaired t test; P values for survival determined by log-rank test.

**Fig. 5. Evaluation of single device treatments in dogs**
(A) Device to be implanted directly onto the canine pancreas. (B) Plasma PK of gemcitabine during the single device (10 or 40 mg/ml) or IV (1 g/m²) treatment. (C) Organs were removed 1 hour after the initiation of treatment, and gemcitabine content was quantified in the pancreas of dogs after the administration of a single treatment. (D) Distance of gemcitabine transport away from the device and into the pancreatic tissue. Data are means ± SD (n = 5). P values were determined by Wilcoxon rank sum tests.

See this image and copyright information in PMC

References

1. Goodman LS, Wintrobe MM, Dameshek W, Goodman MJ, Gilman MA, McLennan MT. Nitrogen mustard therapy; use of methyl-bis (β-chloroethyl) amine hydrochloride and tris (β-chloroethyl) amine hydrochloride for Hodgkin’s disease, lymphosarcoma, leukemia and certain allied and miscellaneous disorders. J Am Med Assoc. 1946;132:126–132. - PubMed
1. Neoptolemos JP, Stocken DD, Friess H, Bassi C, Dunn JA, Hickey H, Beger H, Fernandez-Cruz L, Dervenis C, Lacaine F, Falconi M, Pederzoli P, Pap A, Spooner D, Kerr DJ, Büchler; MW European Study Group for Pancreatic Cancer. A randomized trial of chemoradiotherapy and chemotherapy after resection of pancreatic cancer. N Engl J Med. 2004;350:1200–1210. - PubMed
1. Sauer R, Becker H, Hohenberger W, Rödel C, Wittekind C, Fietkau R, Martus P, Tschmelitsch J, Hager E, Hess CF, Karstens JH, Liersch T, Schmidberger H, Raab; R German Rectal Cancer Study Group. Preoperative versus postoperative chemoradiotherapy for rectal cancer. N Engl J Med. 2004;351:1731–1740. - PubMed
1. Cunningham D, Allum WH, Stenning SP, Thompson JN, Van de Velde CJ, Nicolson M, Scarffe JH, Lofts FJ, Falk SJ, Iveson TJ, Smith DB, Langley RE, Verma M, Weeden S, Chua; YJ MAGIC Trial Participants. Perioperative chemotherapy versus surgery alone for resectable gastroesophageal cancer. N Engl J Med. 2006;355:11–20. - PubMed
1. Cunningham D, Starling N, Rao S, Iveson T, Nicolson M, Coxon F, Middleton G, Daniel F, Oates J, Norman; AR Upper Gastrointestinal Clinical Studies Group of the National Cancer Research Institute of the United Kingdom. Capecitabine and oxaliplatin for advanced esophagogastric cancer. N Engl J Med. 2008;358:36–46. - PubMed

Publication types

Actions
Actions

MeSH terms

Actions
Actions
Actions
Actions
Actions
Actions
Actions
Actions
Actions
Actions
Actions
Actions
Actions
Actions
Actions
Actions
Actions
Actions
Actions
Actions
Actions
Actions
Actions
Actions
Actions
Actions
Actions
Actions
Actions
Actions
Actions
Actions
Actions
Actions
Actions

Substances

Actions
Actions
Actions
Actions

Grants and funding

LinkOut - more resources

Full Text Sources
Other Literature Sources
- The Lens - Patent Citations Database
- scite Smart Citations

Save citation to file

Email citation

Add to Collections

Add to My Bibliography

Your saved search

Create a file for external citation management software

Your RSS Feed

Local iontophoretic administration of cytotoxic therapies to solid tumors

Affiliations

Local iontophoretic administration of cytotoxic therapies to solid tumors

Authors

Affiliations

Abstract

Conflict of interest statement

Figures

References

Publication types

MeSH terms

Substances

Grants and funding

LinkOut - more resources

Full Text Sources

Other Literature Sources
