. 2015 Mar 19;10(3):e0116770.
doi: 10.1371/journal.pone.0116770. eCollection 2015.

Easy to use plastic optical fiber-based biosensor for detection of butanal

Nunzio Cennamo  1 , Stefano Di Giovanni  2 , Antonio Varriale  2 , Maria Staiano  2 , Fabio Di Pietrantonio  3 , Andrea Notargiacomo  4 , Luigi Zeni  1 , Sabato D'Auria  5
Affiliations

Easy to use plastic optical fiber-based biosensor for detection of butanal

Nunzio Cennamo et al. PLoS One. .

Abstract

The final goal of this work is to achieve a selective detection of butanal by the realization of a simple, small-size and low cost experimental approach. To this end, a porcine odorant-binding protein was used in connection with surface plasmon resonance transduction in a plastic optical fiber tool for the selective detection of butanal by a competitive assay. This allows to reduce the cost and the size of the sensing device and it offers the possibility to design a "Lab-on-a-chip" platform. The obtained results showed that this system approach is able to selectively detect the presence of butanal in the concentration range from 20 μM to 1000 μM.

PubMed Disclaimer

Conflict of interest statement

Competing Interests: The authors confirm that co-author Sabato D’Auria is a PLOS ONE Editorial Board member. This does not alter the authors’ adherence to PLOS ONE Editorial policies and criteria.

Figures

Fig 1
Fig 1. Optical biosensor based on SPR in a POF and experimental setup.
Scheme of synthesis of derivatized SAM on chip POF. The gold surface was treated sequentially with a solution of α-lipoic acid (a), ethylenediamine (b) and butyric acid (c).
Fig 2

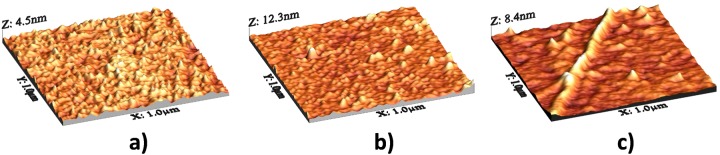

Fig 2. Atomic force microscopy.
3D rendering of: a gold coated Si substrate a) before and b) after functionalization with lipoic acid, and c) after additional subsequent functionalization with butyric acid and pOBP. Note that a different Z scale was used for the three images.
Fig 3
Fig 3. Porcine Odorant Binding Protein structure.
Cartoon representation of the structure pOBP with butanal. The image was produced by Protein workshop Right.
Fig 4
Fig 4. Binding experiment-SPR results.
(a) SPR transmission spectra, normalized to the air spectrum, for different pOBP concentrations in the case of sensor with gold layer with bio-receptor. Inset: Zoom of the resonance wavelengths region. (b) Resonance wavelength variation as a function of pOBP concentrations [μM].
Fig 5
Fig 5. Control—SPR experimental results.
SPR transmission spectra, normalized to the air spectrum, for different pOBP concentrations in the case of the reference sensor with gold layer—SAM without bio-receptor. Inset: Zoom of the resonance wavelengths region.
Fig 6
Fig 6. Competitive assay-SPR.
(a) SPR transmission spectra, normalized to the air spectrum, for different concentration in solution of butanal and with a fixed concentrations of pOBP (1.27 μM), in the case of sensor with gold layer with bio-receptor. Inset: Zoom of the resonance wavelengths region. (b) Resonance wavelength variation as a function of butanal concentration, obtained with binding of a fixed concentration of pOBP in presence of increasing concentration of butanal during pre-incubation time.
See this image and copyright information in PMC

References

    1. Beránek J, Kubátová A (2008) Evaluation of solid-phase microextraction methods for determination of trace concentration aldehydes in aqueous solution. Journal of Chromatography A 1209: 44–54. 10.1016/j.chroma.2008.09.013 - DOI - PubMed
    1. McGregor D, Bolt H, Cogliano V, Richter-Reichhelm HB (2006) Formaldehyde and glutaraldehyde and nasal cytotoxicity: case study within the context of the 2006 IPCS Human Framework for the Analysis of a cancer mode of action for humans. Crit Rev Toxicol 36: 821 - PubMed
    1. Schmarr HG, Potouridis T, Gan S, Sang W, Kopp B, et al. (2008) Analysis of carbonyl compounds via headspace solid-phase microextraction with on-fiber derivatization and gas chromatographic-ion trap tandem mass spectrometric determination of their O-(2,3,4,5,6-pentafluorobenzyl)oxime derivatives. Anal Chim Acta 617: 119–131. 10.1016/j.aca.2008.02.002 - DOI - PubMed
    1. Deng CH, Zhang XM (2004) A simple, rapid and sensitive method for determination of aldehydes in human blood by gas chromatography/mass spectrometry and solid-phase microextraction with on-fiber derivatization. Rapid Commun Mass Spectrom 18: 1715–1720. - PubMed
    1. Abbas A, Linman MJ, Cheng Q (2011) New trends in instrumental design for surface plasmon resonance-based biosensors. Biosens Bioelectron 26: 1815–1824. 10.1016/j.bios.2010.09.030 - DOI - PMC - PubMed
