BioPreDyn-bench: a suite of benchmark problems for dynamic modelling in systems biology

Abstract

Background: Dynamic modelling is one of the cornerstones of systems biology. Many research efforts are currently being invested in the development and exploitation of large-scale kinetic models. The associated problems of parameter estimation (model calibration) and optimal experimental design are particularly challenging. The community has already developed many methods and software packages which aim to facilitate these tasks. However, there is a lack of suitable benchmark problems which allow a fair and systematic evaluation and comparison of these contributions.

Results: Here we present BioPreDyn-bench, a set of challenging parameter estimation problems which aspire to serve as reference test cases in this area. This set comprises six problems including medium and large-scale kinetic models of the bacterium E. coli, baker's yeast S. cerevisiae, the vinegar fly D. melanogaster, Chinese Hamster Ovary cells, and a generic signal transduction network. The level of description includes metabolism, transcription, signal transduction, and development. For each problem we provide (i) a basic description and formulation, (ii) implementations ready-to-run in several formats, (iii) computational results obtained with specific solvers, (iv) a basic analysis and interpretation.

Conclusions: This suite of benchmark problems can be readily used to evaluate and compare parameter estimation methods. Further, it can also be used to build test problems for sensitivity and identifiability analysis, model reduction and optimal experimental design methods. The suite, including codes and documentation, can be freely downloaded from the BioPreDyn-bench website, https://sites.google.com/site/biopredynbenchmarks/ .

Figure 1

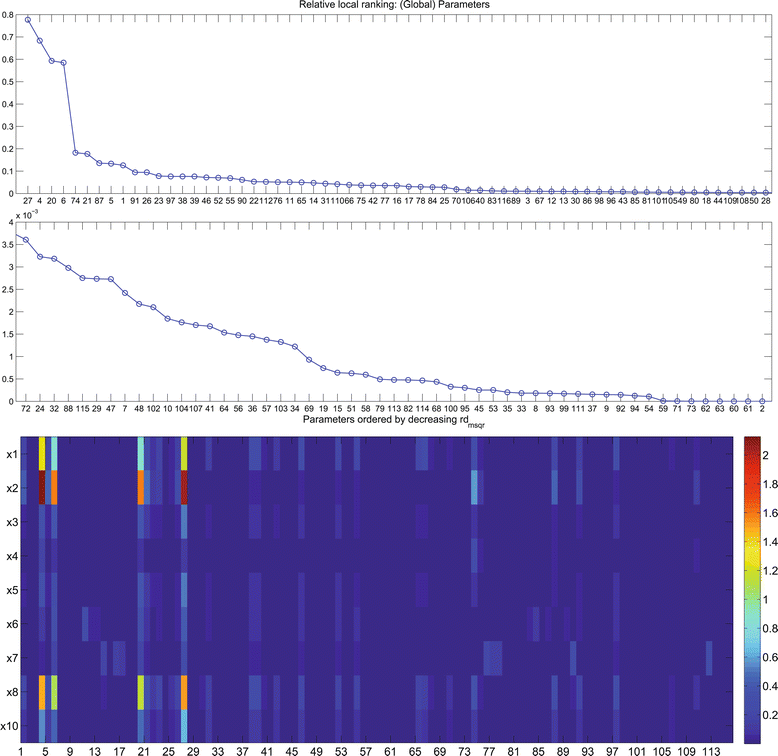

Benchmark 2: sensitivities. The two panels on top show the local rank of the parameters, i.e., the parameters ordered in decreasing order of their influence on the system’s behaviour (${\delta }_p^{\mathit{\text{msqr}}}$, as defined in equations (9) and (10)). Note that the middle panel is a continuation of the upper one with a smaller y-axis scale. The array in the bottom panel shows the sensitivity of the 9 state variables (metabolite concentrations, in columns) of the model with respect to the 116 parameters. The colour bar in the right shows the sensitivity range: high sensitivities are plotted in red, low sensitivities in blue.

Figure 2

Benchmark 3. Histograms of local searches. The X axis shows the values of the solutions found by the DHC local method, and the Y axis shows their frequency. Of the total of 1000 local searches launched, only the 188 that converged are shown.

Figure 3

Convergence curves. Representative results of parameter estimation runs of the six benchmarks, carried out with the eSS method. The curves plot the (logarithmic) objective function value as a function of the (logarithmic) computation time. For ease of visualization, the values in the curves have been divided by the final value reached by each of them, i.e. the y axis plots J/J _f. Note that, since the benchmarks have different number of variables and data points, and different noise levels, the objective function values are not equivalent for different models. Results obtained on a computer with Intel Xeon Quadcore processor, 2.50 GHz, using Matlab 7.9.0.529 (R2009b) 32-bit.

Figure 4

Dispersion of convergence curves. Results of 20 parameter estimation runs of the B4 benchmark (CHO cells) with the eSS method. The figures plot the objective function value as a function of the computation time (in log-log scale). Results obtained on a computer with Intel Xeon Quadcore processor, 2.50 GHz, using Matlab 7.9.0.529 (R2009b) 32-bit.

Figure 5

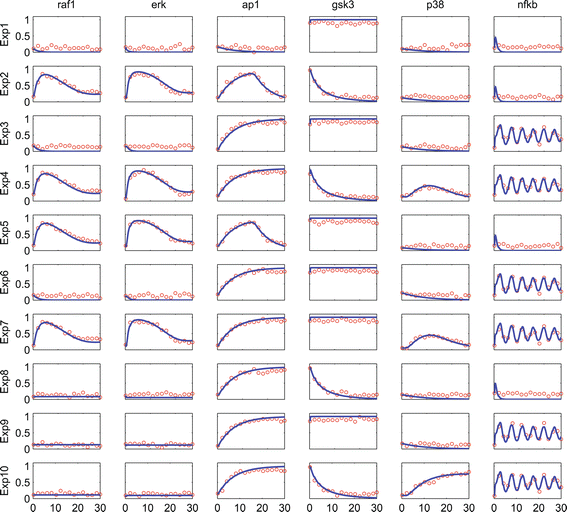

Benchmark 5. Data fits: time courses. Pseudo-experimental data (red circles) vs. optimal solution (solid blue lines) for the 6 observed states. X axis: time [minutes]. Y axis: activation level [0 ÷1].

Figure 6

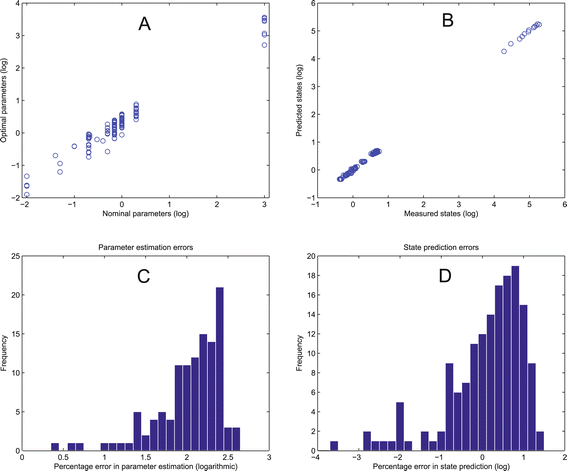

Benchmark 4, typical parameter estimation results. (A) Optimal vs. nominal parameters. (B) Pseudo-experimental (“measured states”) vs. simulated data (“predicted states”). (C) Errors in the parameters: histogram of the differences between the nominal parameter vector and the optimal solution, in %. (D) Errors in the predictions: histogram of the difference between pseudo-experimental and simulated data, in %.
