. 2015 Apr-Jun;6(2):198-201.
doi: 10.4103/0976-3147.153227.

The effects of needle deformation during lumbar puncture

Hasan Hüseyin Özdemir  1 , Caner F Demir  2 , Sefer Varol  1 , Demet Arslan  1 , Mustafa Yıldız  3 , Eşref Akil  1
Affiliations

The effects of needle deformation during lumbar puncture

Hasan Hüseyin Özdemir et al. J Neurosci Rural Pract. 2015 Apr-Jun.

Abstract

Objective: The aim of this study is to assess deformation of the tip and deflection from the axis of 22-gauge Quincke needles when they are used for diagnostic lumbar puncture (LP). Thus, it can be determined whether constructional alterations of needles are important for predicting clinical problems after diagnostic LP.

Materials and methods: The 22-gauge Quincke needles used for diagnostic LP were evaluated. A specially designed protractor was used for measurement and evaluation. Waist circumference was measured in each patient. Patients were questioned about headaches occurring after LP.

Results: A total of 115 Quincke-type spinal needles used in 113 patients were evaluated. No deflection was detected in 38 (33.1%) of the needles. Deflection between 0.1° and 5° occurred in 43 (37.3%) of the needles and deflection ≥ 5.1° occurred in 34 patients (29.6%). Forty-seven (41.5%) patients experienced post lumbar puncture headache (PLPH) and 13 (11.5%) patients experienced intracranial hypotension (IH). No statistically significant correlation between the degree of deflection and headache was found (P > 0.05). Epidural blood patch was performed for three patients. Deformity in the form of bending like a hook occurred in seven needles and IH occurred in six patients using these needles. Two of the needles used in three patients requiring blood patch were found to be bent.

Conclusion: Deformation of needles may increase complications after LP. Needle deformation may lead to IH. In case of deterioration in the structure of the needle, termination of the puncture procedure and the use of a new needle could reduce undesirable clinical consequences, especially IH.

Keywords: Headache; Lumbar puncture; intracranial hypotension; needle deflection.

PubMed Disclaimer

Conflict of interest statement

Conflict of Interest: None declared.

Figures

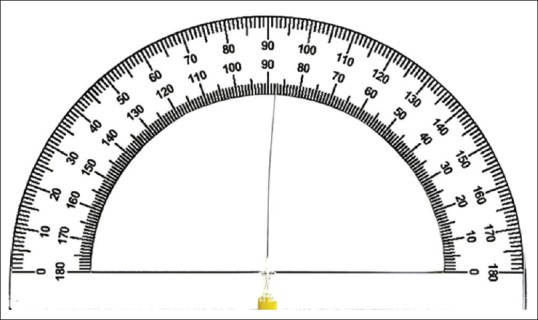

Figure 1
Figure 1
Angle meter (protractor)

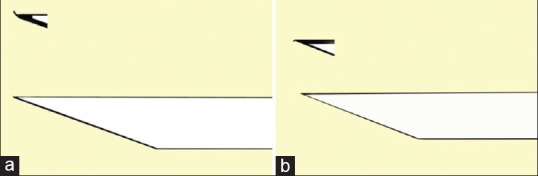

Figure 2
Figure 2
(a) The curl outward. (b) The curl inward

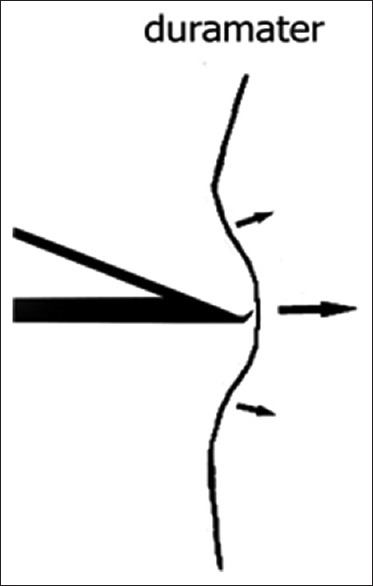

Figure 3
Figure 3
Tent (flap-valve) effect
See this image and copyright information in PMC

Similar articles

See all similar articles

Cited by

References

    1. Edelman JD, Wingard DW. Subdural hematomas after lumbar dural puncture. Anesthesiology. 1980;52:166–7. - PubMed
    1. Carson D, Serpell M. Choosing the best needle for diagnostic lumbar puncture. Neurology. 1996;47:33–7. - PubMed
    1. The clinical anatomy of several invasive procedures. American Association of Clinical Anatomists, Educational Affairs Committee. Clin Anat. 1999;12:43–54. - PubMed
    1. Reina MA, López A, Badorrey V, De Andrés JA, Martín S. Dura-arachnoid lesions produced by 22 gauge Quincke spinal needles during a lumbar puncture. J Neurol Neurosurg Psychiatry. 2004;75:893–7. - PMC - PubMed
    1. Headache Classification Subcommittee of the International Headache Society. The International Classification of Headache Disorders. Cephalalgia. (2nd ed) 2004;24(Supp 1):9–160. - PubMed
