. 2015 Apr;57(4):283-8.
doi: 10.3340/jkns.2015.57.4.283. Epub 2015 Apr 24.

The effectiveness of infrared thermography in patients with whiplash injury

Young Seo Lee  1 , Sung Hwa Paeng  1 , Hooman F Farhadi  2 , Won Hee Lee  1 , Sung Tae Kim  1 , Kun Su Lee  1
Affiliations

The effectiveness of infrared thermography in patients with whiplash injury

Young Seo Lee et al. J Korean Neurosurg Soc. 2015 Apr.

Abstract

Objective: This study aims to visualize the subjective symptoms before and after the treatment of whiplash injury using infrared (IR) thermography.

Methods: IR thermography was performed for 42 patients who were diagnosed with whiplash injury. There were 19 male and 23 female patients. The mean age was 43.12 years. Thermal differences (ΔT) in the neck and shoulder and changes in the thermal differences (ΔdT) before and after treatment were analyzed. Pain after injury was evaluated using visual analogue scale (VAS) before and after treatment (ΔVAS). The correlations between ΔdT and ΔVAS results before and after the treatment were examined. We used Digital Infrared Thermal Imaging equipment of Dorex company for IR thermography.

Results: The skin temperature of the neck and shoulder immediately after injury showed 1-2℃ hyperthermia than normal. After two weeks, the skin temperature was normal range. ΔT after immediately injuy was higher than normal value, but it was gradually near the normal value after two weeks. ΔdT before and after treatment were statistically significant (p<0.05). VAS of the neck and shoulder significantly reduced after 2 week (p=0.001). Also, there was significant correlation between ΔdT and reduced ΔVAS (the neck; r=0.412, p<0.007) (the shoulder; r=0.648, p<0.000).

Conclusion: The skin temperature of sites with whiplash injury is immediately hyperthermia and gradually decreased after two weeks, finally it got close to normal temperature. These were highly correlated with reduced VAS. IR thermography can be a reliable tool to visualize the symptoms of whiplash injury and the effectiveness of treatment in clinical settings.

Keywords: Infrared thermography; Pain; Thermal difference; Visual analogue scale; Whiplash injury.

PubMed Disclaimer

Figures

Fig. 1
Fig. 1. A 49-year female admitted after in car traffic accident (rear collision), complaining of severe posterior neck pain and shoulder pain, limitation of motion of neck. A : Cervical anteroposterior/lateral X-ray showing straight or kyphotic cervical curvature. B : No abnormality on cervical MRI. C : IR thermography showing 1-2℃ thermal elevation than normal value in areas on the neck (34.26, 34.28℃) and shoulder (32.58, 32.66℃) after cervical whiplash injury (VAS 8) (arrows). D : IR thermography showing significantly normal skin surface temperature (neck : 33.82, 33.89℃, shoulder : 31.53, 31.76℃) after 2 weeks management and symmetric state (VAS 4) (arrows). IR : infrared, VAS : visual analogue scale.
Fig. 2
Fig. 2. Changes in VAS after whiplash injury. VAS : visual analogue scale.
Fig. 3

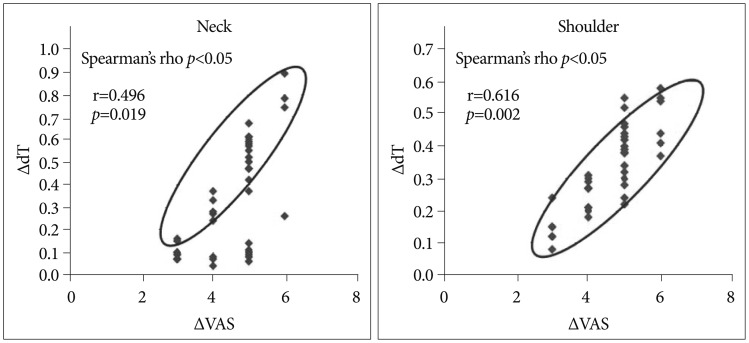

Fig. 3. Correlation analysis between changes in thermal difference and VAS before and after treatment (ΔdT & ΔVAS). VAS : visual analogue scale.
See this image and copyright information in PMC

Similar articles

See all similar articles

Cited by

References

    1. Ammer K, Schartelmueller T, Melnizky P. Thermal imaging in acute herpes zoster or post-zoster neuralgia. Skin Res Technol. 2001;7:219–222. - PubMed
    1. Anbar M. Quantitative Dynamic Telethermometry in Medical Diagnosis and Management. Florida: CRC press; 1994. pp. 13–35.
    1. Anbar M, Gratt BM, Hong D. Thermology and facial telethermography. Part I : history and technical review. Dentomaxillofac Radiol. 1998;27:61–67. - PubMed
    1. Barnsley L, Lord S, Bogduk N. The pathophysiology of whiplash. In: Malanga GA, editor. Spine : State of the Art Reviews. Philadelphia: Hanley & Belfus; 1998. pp. 209–242.
    1. Bogduk N. The anatomy and pathophysiology of whiplash. Clin Biomech (Bristol, Avon) 1986;1:92–101. - PubMed
