Accessing to arteriovenous blood flow dynamics response using combined laser speckle contrast imaging and skin optical clearing

Rui Shi  1 , Min Chen  2 , Valery V Tuchin  3 , Dan Zhu  4
Affiliations

Accessing to arteriovenous blood flow dynamics response using combined laser speckle contrast imaging and skin optical clearing

Rui Shi et al. Biomed Opt Express. .

Abstract

Laser speckle contrast imaging (LSCI) shows a great potential for monitoring blood flow, but the spatial resolution suffers from the scattering of tissue. Here, we demonstrate the capability of a combination method of LSCI and skin optical clearing to describe in detail the dynamic response of cutaneous vasculature to vasoactive noradrenaline injection. Moreover, the superior resolution, contrast and sensitivity make it possible to rebuild arteries-veins separation and quantitatively assess the blood flow dynamical changes in terms of flow velocity and vascular diameter at single artery or vein level.

Keywords: (120.6150) Speckle imaging; (150.1135) Algorithms; (170.1470) Blood or tissue constituent monitoring; (290.0290) Scattering.

PubMed Disclaimer

Figures

Fig. 1
Fig. 1
The schematic of the LSCI system.
Fig. 2
Fig. 2
Monitoring cutaneous vasculature and blood flow at status of turbid skin; OCA-5 min; and 5-, 10-, 15-, 25-, 30-min after saline injection accompanied with OCA-treatment: white-light images (a); blood flow velocity maps (b); profiles of the flow velocity along the horizontal white line (c), respectively. Bar = 500 μm.
Fig. 3
Fig. 3
The steps of arteries-veins separation (a): speckle contrast image (step 1); vasculature network image (step 2), bright is the vasculature network and dark is non-vascular region; weighted temporal minimum intensity image (step 3); arteries-veins separation image (step 4). Saline injection-induced relative changes in vascular diameter and flow velocity in artery A (b, c); and vein V (d, e) during OCA- treatment. The injection time is set to be 0, which is consistent with the arrow shown in (b-e). Bar = 500 μm.
Fig. 4
Fig. 4
Monitoring cutaneous blood flow dynamics at status of turbid skin; OCA-5 min; and 5-, 10-, 15-, 25-, 30-min after NA injection accompanied with OCA-treatment: white-light images (a); blood flow velocity maps (b); profiles of the flow velocity along the horizontal white line (c), respectively. Bar = 500 μm.
Fig. 5
Fig. 5
Speckle contrast image (a); arteries-veins separation image (b); NA injection-induced relative changes in vascular diameter and flow velocity in artery A1 (c, d); vein V1 (e, f); and vein V2 (g, h) accompanied with OCA- treatment. The injection time is set to be 0, which is consistent with the arrow shown in (c-h). Bar = 500 μm.
Fig. 6
Fig. 6

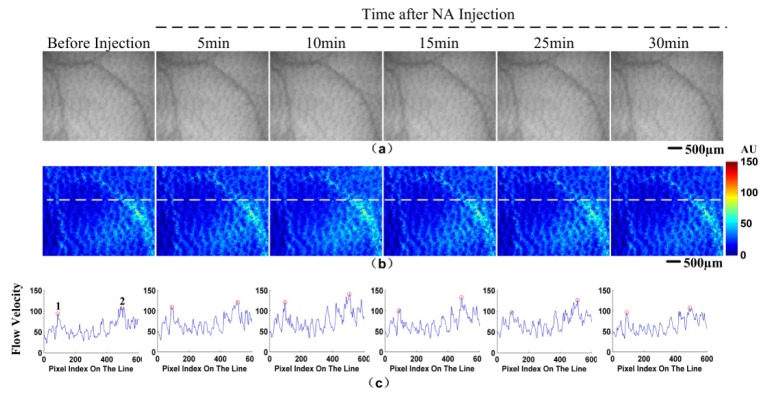

Monitoring cutaneous blood flow dynamics before NA injection; and 5-, 10-, 15-, 25-, 30-min after NA injection through the turbid skin: white-light images (a); blood flow velocity maps (b); profiles of the flow velocity along the horizontal white line (c), respectively. Bar = 500 μm.
