Case Reports
. 2015 Jun 19;4(6):2058460115589338.
doi: 10.1177/2058460115589338. eCollection 2015 Jun.

Stent-graft treatment for extrahepatic portal vein hemorrhage after pancreaticoduodenectomy

Kojiro Suzuki  1 , Tsuyoshi Igami  2 , Tomohiro Komada  1 , Yoshine Mori  1 , Yukihiro Yokoyama  2 , Tomoki Ebata  2 , Shinji Naganawa  1 , Masato Nagino  2
Affiliations
Case Reports

Stent-graft treatment for extrahepatic portal vein hemorrhage after pancreaticoduodenectomy

Kojiro Suzuki et al. Acta Radiol Open. .

Abstract

We report a case of intraperitoneal hemorrhage from the extrahepatic portal vein after pancreaticoduodenectomy for distal bile duct carcinoma. A stent-graft was deployed from the superior mesenteric vein to the main portal vein using a transhepatic approach. After the procedure, the patient remained free of intraperitoneal hemorrhage and was discharged 2 months later.

Keywords: Stent-graft; hemorrhage; pancreaticoduodenectomy; portal vein.

PubMed Disclaimer

Figures

Fig. 1.
Fig. 1.

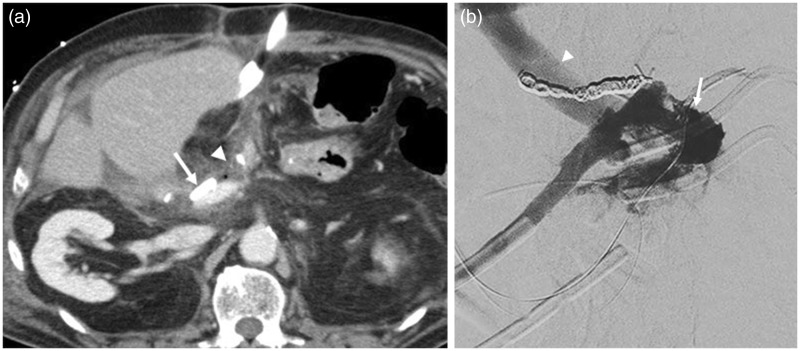

(a) Contrast-enhanced CT 7 days after surgery shows fluid collection (arrowhead) around the pancreatic anastomosis and main portal vein. A drain (arrow) that was placed intraoperatively is seen crossing the main portal vein. (b) Contrast-enhanced study via the drainage tube shows the main portal vein (arrowhead) and peritoneal cavity (arrow). The common hepatic artery had already been embolized with microcoils.
Fig. 2.
Fig. 2.

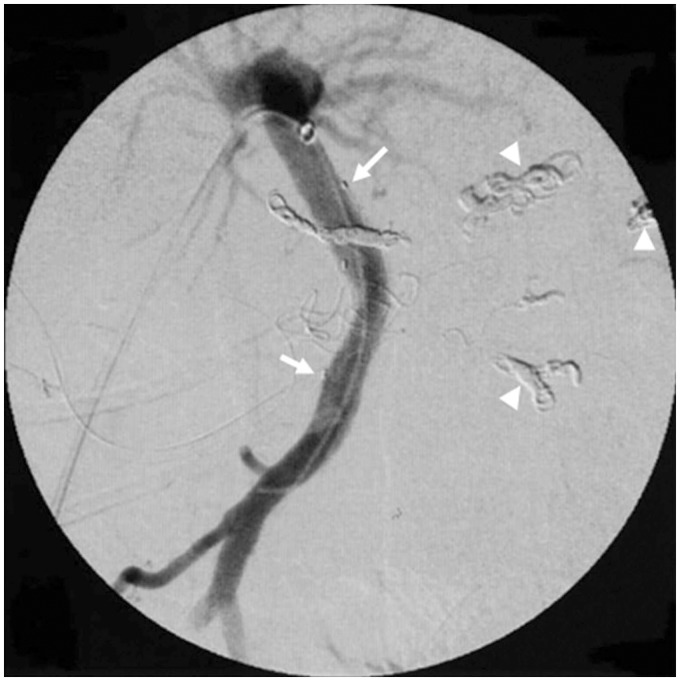

Portography from the superior mesenteric vein after stent-graft deployment (arrows) shows good portal flow to the liver through the stent-graft. To prevent endoleak, the splenic vein, left gastric vein, and inferior mesenteric vein were embolized with coils and microcoils before stent-graft deployment (arrowheads).
See this image and copyright information in PMC

Similar articles

See all similar articles

Cited by

See all "Cited by" articles

References

    1. Schmidt CM, Powell ES, Yiannoutsos CT, et al. Pancreaticoduodenectomy, a 20-years experience in 516 patients. Arch Surg 2004; 139: 718–727. - PubMed
    1. Roulin D, Cerantola Y, Demartines N, et al. Systematic review of delayed postoperative hemorrhage after pancreatic resection. J Gastrointest Surg 2011; 15: 1055–1062. - PubMed
    1. van der Steenhoven TJ, Heyligers JM, Tielliu IF, et al. The upside down Gore Excluder contralateral leg without extracorporeal predeployment for aortic or iliac aneurysm exclusion. J Vasc Surg 2011; 53: 1738–1741. - PubMed
    1. Bassi C, Molinari E, Malleo G, et al. Early versus late drain removal after standard pancreatic resections: results of a prospective randomized trial. Ann Surg 2010; 252: 207–214. - PubMed
    1. Gwon DI, Ko GY, Sung KB, et al. Endovascular management of extrahepatic artery hemorrhage after pancreatobiliary surgery: clinical features and outcomes of transcatheter arterial embolization and stent-graft placement. Am J Roentgenol 2011; 196: W627–634. - PubMed
