Stress Distribution Around Single Short Dental Implants: A Finite Element Study

Abstract

Bone height restrictions are more common in the posterior regions of the mandible, because of either bone resorption resulting from tooth loss or even anatomic limitations, such as the position of the inferior alveolar nerve. In situations where adequate bone height is not available in the posterior mandible region, smaller lengths of implants may have to be used but it has been reported that the use of long implants (length ≥10 mm) is a positive factor in osseointegration and authors have reported failures with short implants. Hence knowledge about the stress generated on the bone with different lengths of implants needs scientific evaluation. The purpose of this study was to compare and evaluate the influence of different lengths of implants on stress upon bone in mandibular posterior area. A 3 D finite element model was made of the posterior mandible using the details from a CT scan, using computer software (ANSYS 12). Four simulated implants with lengths 6 mm, 8 mm, 10 mm and 13 mm were placed in the centre of the bone. A static vertical force of 250 N and a static horizontal force of 100 N were applied. The stress generated in the cortical and cancellous bone around the implant were recorded and evaluated with the help of ANSYS. In this study, Von Mises stress on a 6 mm implant under a static vertical load of 250 N appeared to be almost in the same range of 8 and 10 mm implant which were more as compared to 13 mm implant. Von Mises stress on a 6mm implant under a static horizontal load of 100 N appeared to be less when compared to 8, 10 and 13 mm implants. From the results obtained it may be inferred that under static horizontal loading conditions, shorter implants receive lesser load and thus may tend to transfer more stresses to the surrounding bone. While under static vertical loading the shorter implants bear more loads and comparatively transmit lesser load to the surrounding bone.

Keywords: Finite element analysis; Implant length; Posterior mandible.

Fig. 1

Different colours indicate the amount of stress around the implant region

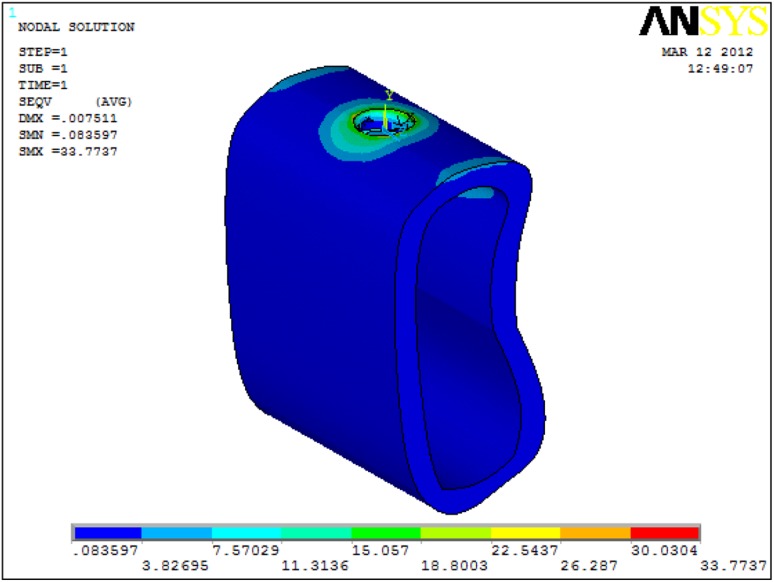

Fig. 2

Von Mises stress only in cortical bone with 6 mm Implant under 250 N vertical load

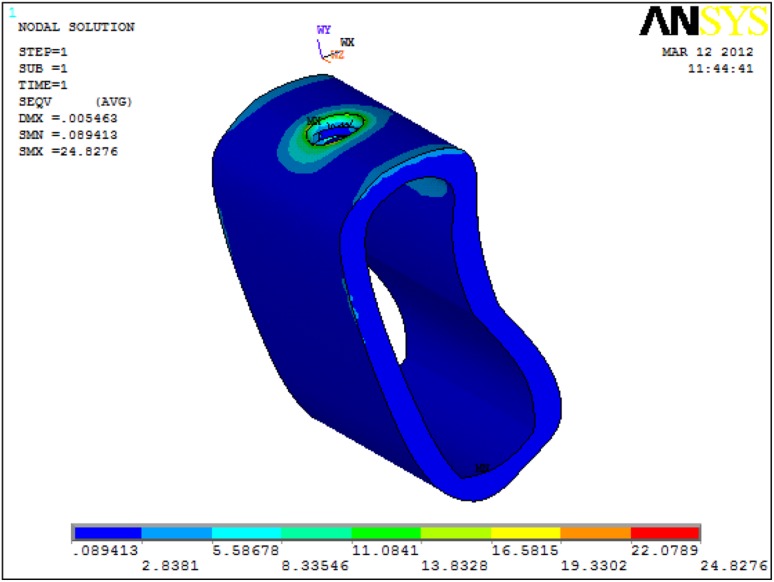

Fig. 3

Von Mises stress only in cortical bone with 13 mm Implant under 250 N vertical load

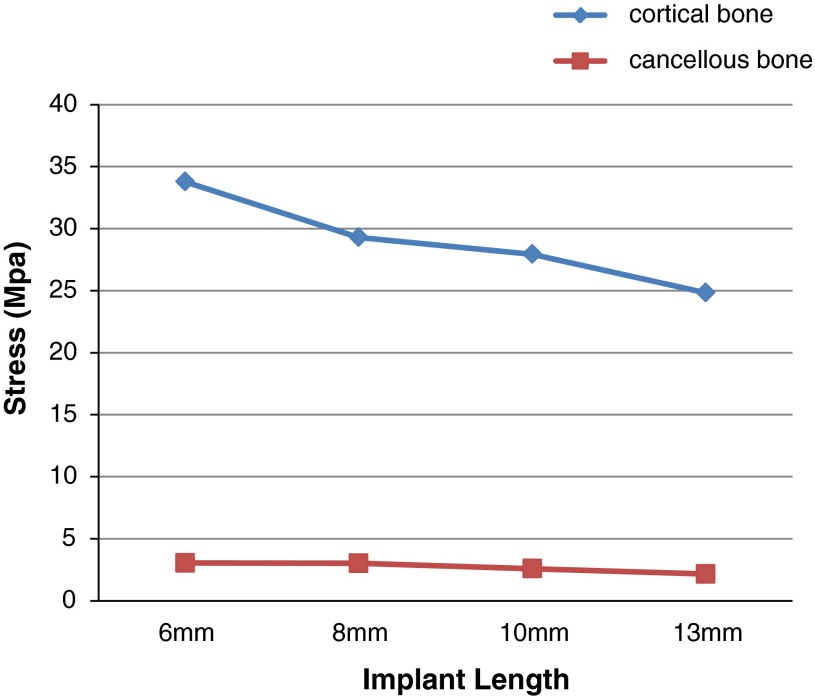

Graph 1

Von Mises stress on cortical and cancellous bone under 250 N vertical load

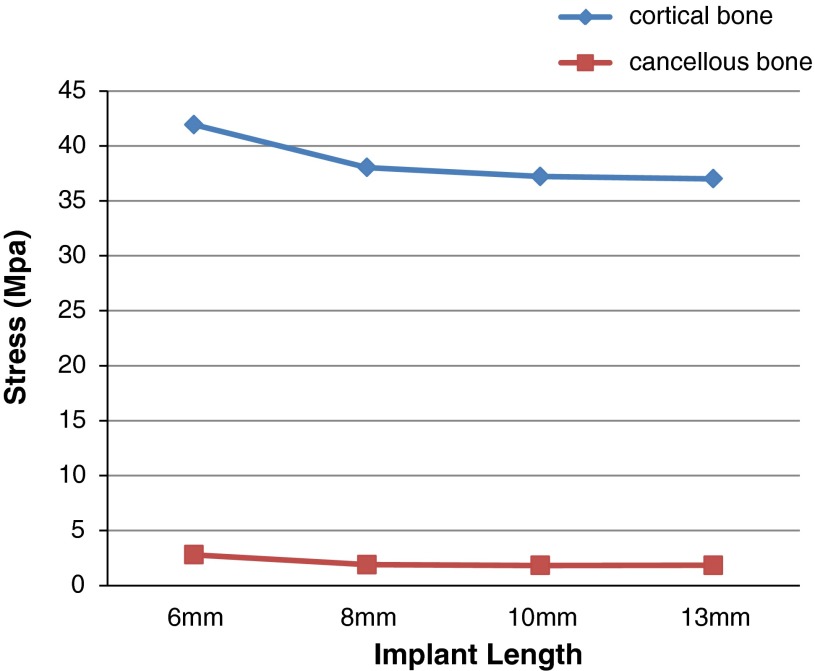

Graph 2

Von Mises stress on cortical and cancellous bone under 100 N horizontal load

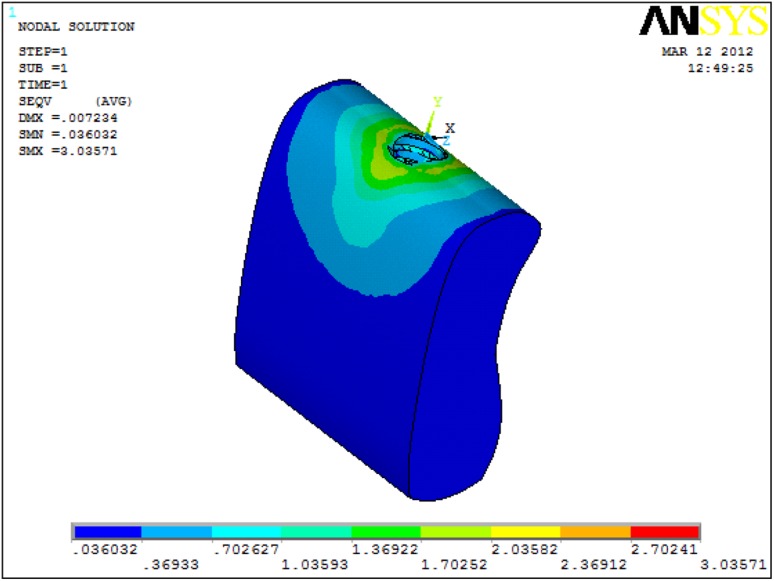

Fig. 4

Von Mises stress only in cancellous bone with 6 mm Implant under 250 N vertical load

Fig. 5

Von Mises stress only in cancellous bone with 13 mm Implant under 250 N vertical load

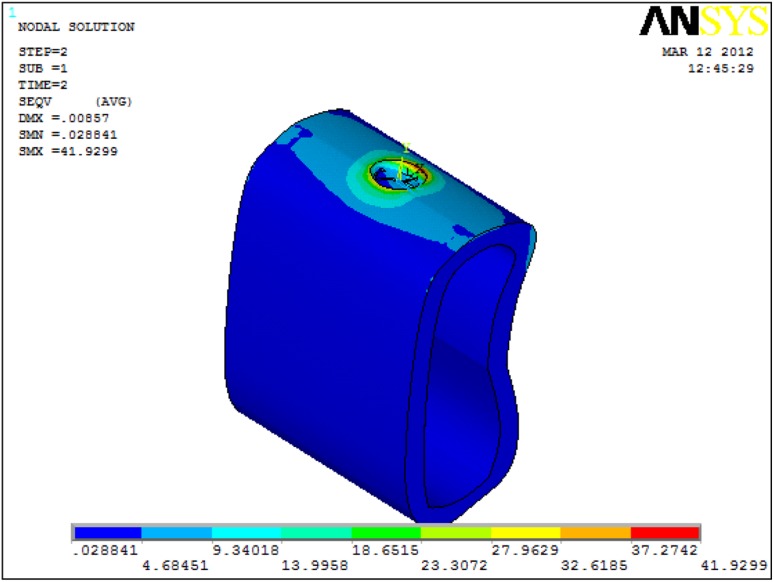

Fig. 6

Von Mises stress only in cortical bone with 6 mm Implant under 100 N horizontal load

Fig. 7

Von Mises stress only in cortical bone with 13 mm Implant under 100 N horizontal load

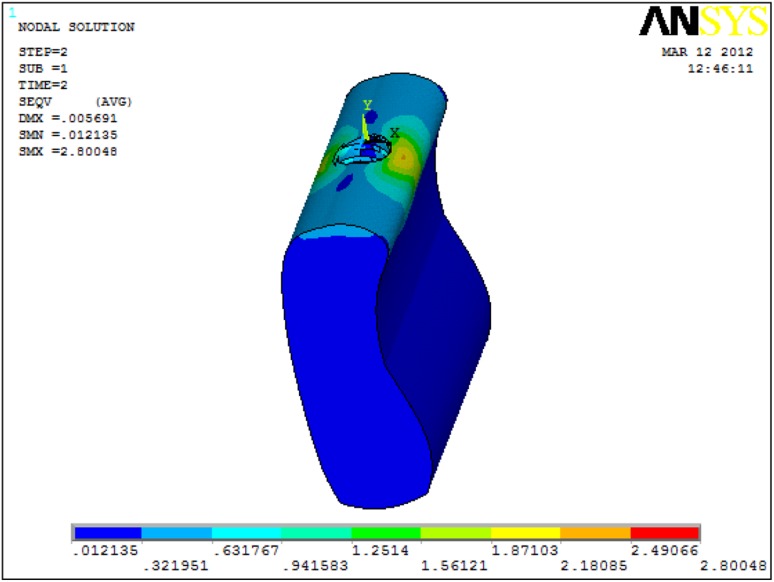

Fig. 8

Von Mises stress only in cancellous bone with 6 mm Implant under 100 N horizontal load

Fig. 9

Von Mises stress only in cancellous bone with 13 mm Implant under 100 N horizontal load
