. 2015 Sep;14(3):799-807.
doi: 10.1007/s12663-014-0718-5. Epub 2014 Nov 5.

Study of Efficacy and the Comparison Between 2.0 mm Locking Plating System and 2.0 mm Standard Plating System in Mandibular Fractures

B Pavan Kumar  1 , K A Jeevan Kumar  1 , V Venkatesh  1 , A P Mohan  1 , K Ramesh  1 , K Mallikarjun  1
Affiliations

Study of Efficacy and the Comparison Between 2.0 mm Locking Plating System and 2.0 mm Standard Plating System in Mandibular Fractures

B Pavan Kumar et al. J Maxillofac Oral Surg. 2015 Sep.

Abstract

Purpose: The purpose of this study was to evaluate the efficacy and comparison between 2.0 mm locking plate system and 2.0 mm Champy's titanium mini plating system in mandible fractures.

Materials and methods: A total of 20 patients with mandibular fractures were selected and divided into two groups A and B on randomized basis. Group A was treated with open reduction internal fixation using 2.0 mm locking plates and group B with 2.0 mm Champy's titanium miniplates. All patients were followed up for 12 weeks postoperatively.

Results: Results of the study show less screw loosening, less precision in plate adaptation and less alteration of the osseous or occlusal relationship upon screw tightening in group A. Chi square test was applied to compare the results between the two groups. Statistical analysis did not show significant difference of incidence of malocclusion between the two groups (p value = 0.606). Statistical analysis using un-paired t test showed significant difference of working time between the two groups (p value = 0.00296). When comparing the overall complication rates according to plates used, the χ(2) test showed no statistically significant difference between the locking and nonlocking plates (p > 0.05).

Conclusion: It is observed in our study that the locking plate/screw system offers significant advantages over the conventional plating system. The precise adaptation required for using conventional plates is not needed when this locking plate/screw system is used. Locking plate/screw system provides better stability than the conventional plate/screw system.

Keywords: Champy’s mini plates; Locking plate and screw system; Mandibular fractures; Open reduction internal fixation (ORIF).

PubMed Disclaimer

Figures

Fig. 1
Fig. 1

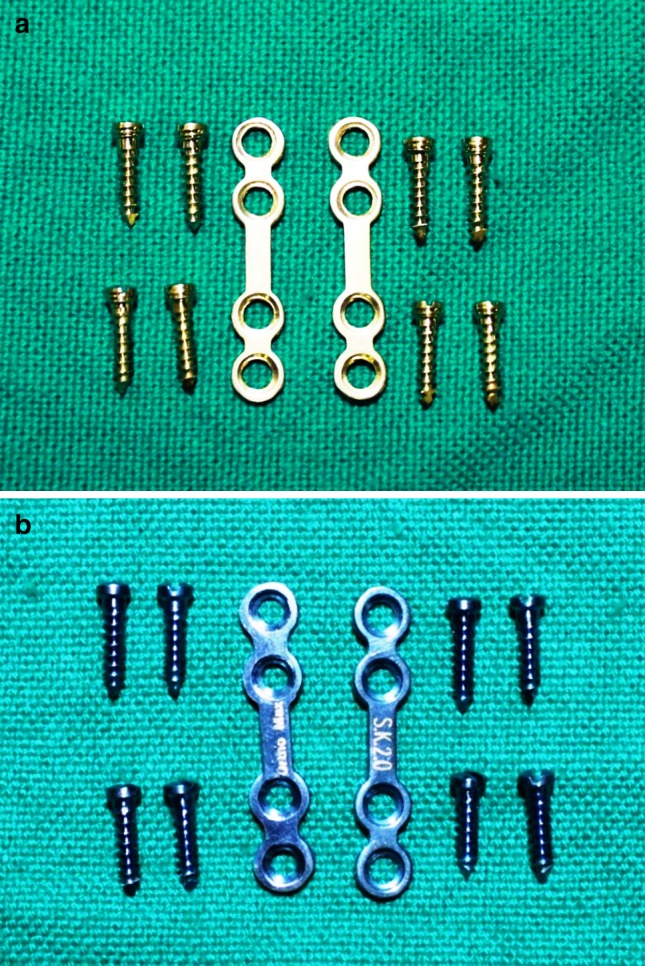

a 2.0 mm locking plate with 2 × 8 mm screws. b 2.0 mm Champy’s titanium mini plates with 2 × 8 mm screws
Fig. 2
Fig. 2
Panoramic radiograph (3 months postoperatively) of bilateral parasymphysis fracture treated with two-miniplate-fixation technique
Fig. 3
Fig. 3
a 2.0 mm locking plate secured at the fracture site. b 2.0 mm standard titanium miniplate secured at the fracture site
Fig. 4
Fig. 4
a, b Preoperative and postoperative occlusion in group-A. c, d Preoperative and postoperative occlusion in group-B
Fig. 5
Fig. 5
Comparison of occlusion disturbance
Fig. 6
Fig. 6
Comparison of postoperative infection
Fig. 7
Fig. 7

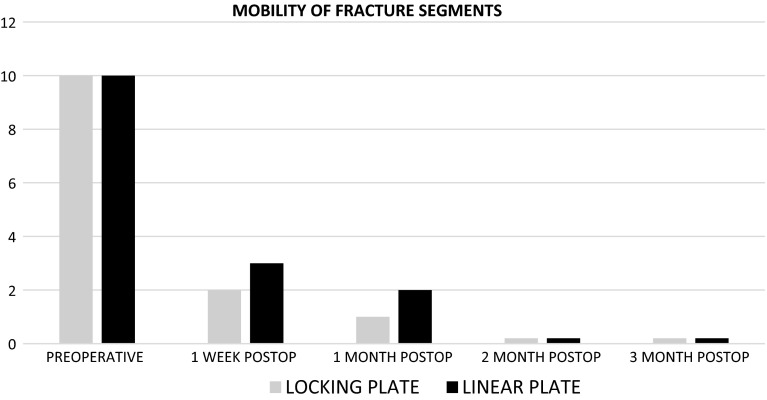

Comparison of mobility of fracture segments
Fig. 8
Fig. 8

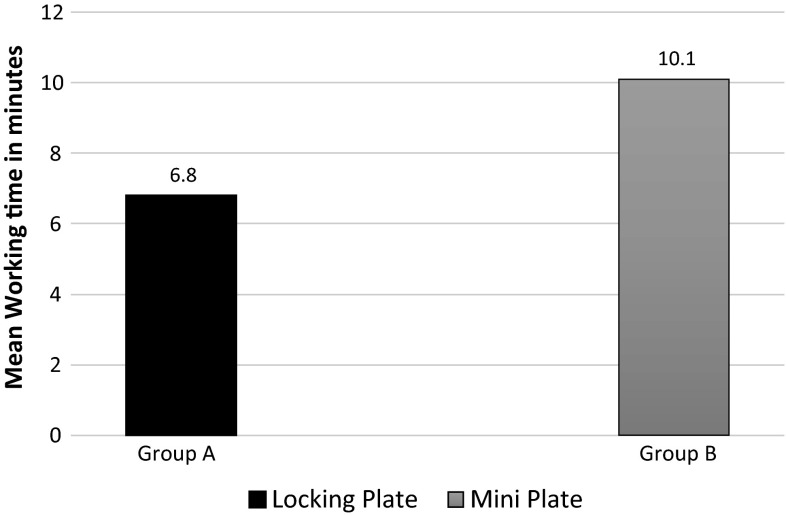

Comparison of operating time in group A and group B
Fig. 9
Fig. 9

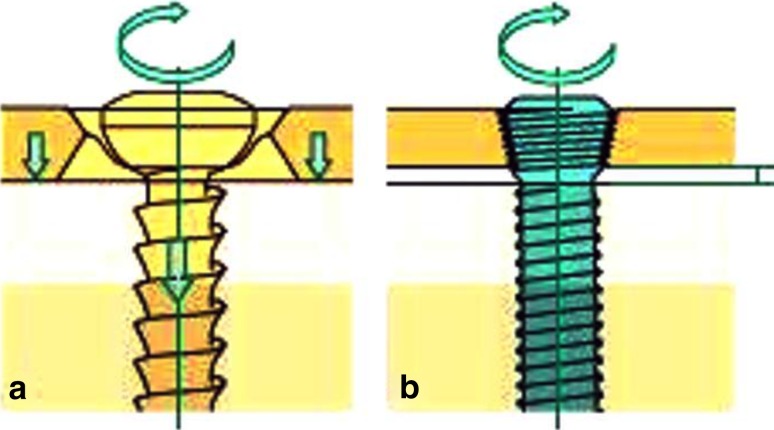

Conventional screw and locking screw. a Conventional screw pressing the plate against the bone. b Locking head screw stabilizing the plate without direct bone/plate contact
See this image and copyright information in PMC

References

    1. Champy M, Loddé JP, Schmitt R, Jaeger JH, Muster D. Mandibular osteosynthesis by miniature screwed plates via a buccal approach. J Maxillofac Surg. 1978;6(1):14–21. doi: 10.1016/S0301-0503(78)80062-9. - DOI - PubMed
    1. Champy M, Wilk A, Schnebelen JM. Treatment of mandibular fractures by means of osteosynthesis without intermaxillary immobilization according to F.X. Michelet’s technic. Zahn Mund Kieferheilkd Zentralbl. 1975;63(4):339–341. - PubMed
    1. Champy M, Lodde JP, Jaeger JH, Wilk A. Mandibular osteosynthesis according to the Michelet technic. I. Biomechanical bases. Rev Stomatol Chir Maxillofac. 1976;77(3):569–576. - PubMed
    1. Champy M, Lodde JP, Jaeger JH, Wilk A, Gerber JC. Mandibular osteosynthesis according to the Michelet technic. II. Presentation of new material. Results. Rev Stomatol Chir Maxillofac. 1976;77(3):577–582. - PubMed
    1. Champy M, Lodde JP, Muster D, Wilk A, Gastelo L. Osteosynthesis using miniaturized screws on plates in facial and cranial surgery. Indications and results in 400 cases. Ann Chir Plast. 1977;22(4):261–264. - PubMed
