Prognostic value of extravascular lung water assessed with lung ultrasound score by chest sonography in patients with acute respiratory distress syndrome

Abstract

Background: The prognostic value of extravascular lung water indices (EVLWI) has been widely investigated, which is determined by lung ultrasound B-lines. However, the clinical value of lung ultrasound B-lines for determining prognosis/intensive care unit (ICU) outcomes in patients with acute respiratory distress syndrome (ARDS) has been rarely reported.

Methods: Twenty-one ARDS patients admitted to the ICU of Fu Xing Hospital underwent both lung ultrasonography and pulse index continuous cardiac output (PiCCO) monitoring on the first, second, and third days after diagnosis. The correlation between lung ultrasound score (LUS) and EVLWI measured by the PiCCO system was investigated. The prognostic clinical value of lung ultrasonography in ARDS patients was explored. Chest ultrasound was performed using the 12 regions method. The comprehensive score of lung ultrasound was determined according to the level of lung aeration.

Results: With ICU mortality as the end point, 21 patients were divided into a survivor group (8 patients, 39.1 %) and a non-survivor group (13 patients, 61.9 %). Significant positive linear correlations were found between LUS and EVLWI, including predicted body weight (r (2) = 0.906), sequential organ failure assessment score (r (2) = 0.815), lung injury score (r (2) = 0.361), and PaO2/FiO2 (r (2) = 0.472). Significantly different LUSs were found between the non-survivor and survivor groups (F = 77.64, P <0.01) by repeated-measures analysis of variance. There were no significant differences between the two groups on different days. The areas under the receiver operating characteristic curves of LUS and EVLW measured by PiCCO were 0.846 (P < 0.01) and 0.918 (P < 0.01), respectively. The cut-off of LUS for prognosis prediction was 16.5.

Conclusions: Lung ultrasonography is a non-invasive, economic, simple, user-friendly, and radiation-free bedside method for predicting the prognosis of ARDS patients. Early measurement of LUS is a better prognostic indicator in patients with ARDS.

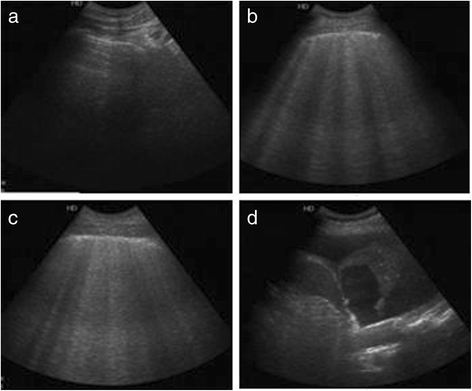

Fig. 1

Four ultrasound patterns according to lung aeration. a normal aeration (N): presence of lung sliding with A lines or fewer than two isolated B lines; b moderate loss of lung aeration: multiple, well-defined B lines (B1 lines); c severe loss of lung aeration: multiple coalescent B lines (B2 lines); and d lung consolidation (C), the presence of a tissue pattern. For a given region of interest, points were allocated according to the worst ultrasound pattern observed: N = 0, B1 lines = 1, B2 lines = 2, C = 3

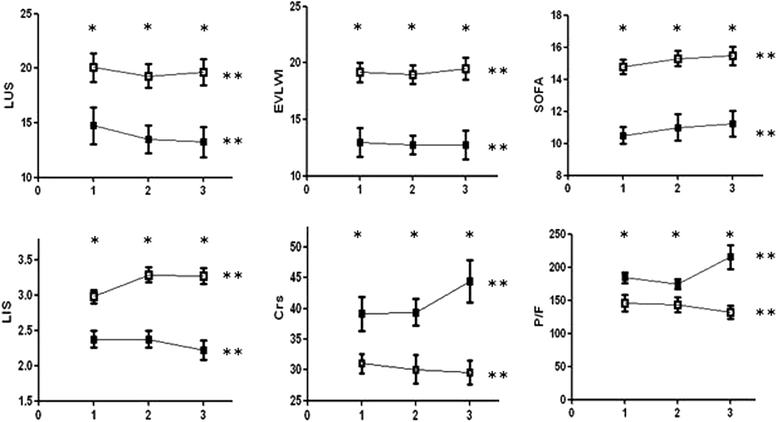

Fig. 2

Lung dysfunction in the first 3 days following diagnosis of acute respiratory distress syndrome. Non-survivors are represented by unfilled squares and survivors are represented by filled ones. Plots show the means of values of 3 days vs. time for the following: lung ultrasound score (LUS); EVLWI: extra-vascular lung water indexed to predicted body weight (EVLWI) measured by pulse index continuous cardiac output (PiCCO); sequential organ failure assessment (SOFA); lung injury score (LIS); static respiratory system compliance (Crs); PaO₂/FiO₂(P/F). *: P < 0.05, significant differences were found between the non-survivor and survivor groups. **: P > 0.05, no significant differences were found between the two groups on different days

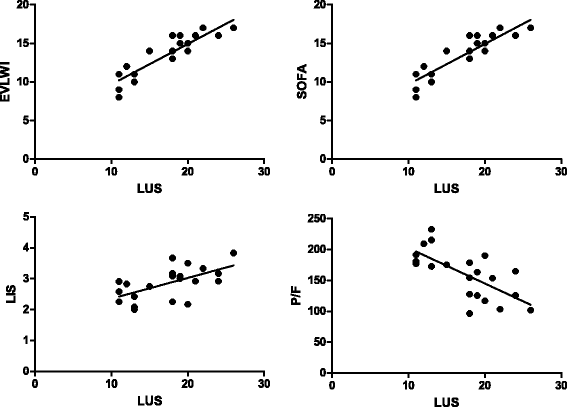

Fig. 3

Scatterplots demonstrating the correlation between lung ultrasound score (LUS) and lung dysfunction. The graphs show pooled average data for all 3 days for survivors and non-survivors. EVLWI, extravascular lung water indexed to predicted body weight; P/F PaO₂/FiO₂; SOFA, sequential organ failure assessment score; LIS, lung injury score. Significant positive linear correlations were found between LUS and EVLWI, SOFA, LIS, P/F (r² = 0.906, 0.815, 0.361, 0.472, P < 0.01)

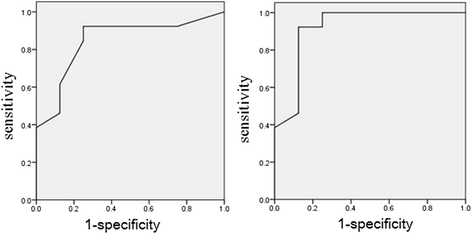

Fig. 4

Receiver operating characteristic curves of lung ultrasound score (LUS) and extra-vascular lung water (EVLW) for mortality. The area under the curve (95 % confidence interval [CI]) was 0.846 ± 0.91 and 0.918 ± 0.72 for LUS and EVLW, respectively
