. 2015 Aug 25;17(1):228.
doi: 10.1186/s13075-015-0735-x.

A systematic review of the relationship between subchondral bone features, pain and structural pathology in peripheral joint osteoarthritis

Andrew J Barr  1 , T Mark Campbell  2   3 , Devan Hopkinson  4 , Sarah R Kingsbury  5 , Mike A Bowes  6 , Philip G Conaghan  7
Affiliations

A systematic review of the relationship between subchondral bone features, pain and structural pathology in peripheral joint osteoarthritis

Andrew J Barr et al. Arthritis Res Ther. .

Abstract

Introduction: Bone is an integral part of the osteoarthritis (OA) process. We conducted a systematic literature review in order to understand the relationship between non-conventional radiographic imaging of subchondral bone, pain, structural pathology and joint replacement in peripheral joint OA.

Methods: A search of the Medline, EMBASE and Cochrane library databases was performed for original articles reporting association between non-conventional radiographic imaging-assessed subchondral bone pathologies and joint replacement, pain or structural progression in knee, hip, hand, ankle and foot OA. Each association was qualitatively characterised by a synthesis of the data from each analysis based upon study design, adequacy of covariate adjustment and quality scoring.

Results: In total 2456 abstracts were screened and 139 papers were included (70 cross-sectional, 71 longitudinal analyses; 116 knee, 15 hip, six hand, two ankle and involved 113 MRI, eight DXA, four CT, eight scintigraphic and eight 2D shape analyses). BMLs, osteophytes and bone shape were independently associated with structural progression or joint replacement. BMLs and bone shape were independently associated with longitudinal change in pain and incident frequent knee pain respectively.

Conclusion: Subchondral bone features have independent associations with structural progression, pain and joint replacement in peripheral OA in the hip and hand but especially in the knee. For peripheral OA sites other than the knee, there are fewer associations and independent associations of bone pathologies with these important OA outcomes which may reflect fewer studies; for example the foot and ankle were poorly studied. Subchondral OA bone appears to be a relevant therapeutic target.

Systematic review: PROSPERO registration number: CRD 42013005009.

PubMed Disclaimer

Figures

Fig. 1
Fig. 1

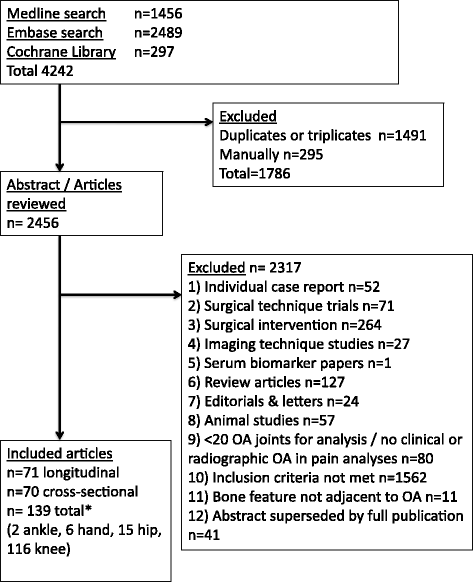

Search strategy results and article exclusion. *Two articles included both cross-sectional and longitudinal data. Longitudinal data included 16 case–control studies and 55 cohort studies
See this image and copyright information in PMC

References

    1. Felson DT, Naimark A, Anderson J, Kazis L, Castelli W, Meenan RF. The prevalence of knee osteoarthritis in the elderly. The Framingham Osteoarthritis Study. Arthritis Rheum. 1987;30:914–918. - PubMed
    1. Bijlsma JW, Berenbaum F, Lafeber FP. Osteoarthritis: an update with relevance for clinical practice. Lancet. 2011;377:2115–2126. - PubMed
    1. EMA. European Medicines Agency. Guideline on clinical investigation of medicinal products used in the treatment of osteoarthritis. 2010. http://www.ema.europa.eu/docs/en_GB/document_library/Scientific_guidelin...
    1. FDA. Food and Drug Administration. Guidance for industry: Clinical development programs for drugs, devices, and biological products intended for the treatment of osteoarthritis (OA). 1999. FDA document 07/1999.
    1. Guermazi A, Niu J, Hayashi D, Roemer FW, Englund M, Neogi T, et al. Prevalence of abnormalities in knees detected by MRI in adults without knee osteoarthritis: population based observational study (Framingham Osteoarthritis Study). BMJ. 2012;345. - PMC - PubMed
