Meta-Analysis
. 2015 Sep 22;2015(9):CD009552.
doi: 10.1002/14651858.CD009552.pub3.

Tiotropium versus ipratropium bromide for chronic obstructive pulmonary disease

Affiliations
Meta-Analysis

Tiotropium versus ipratropium bromide for chronic obstructive pulmonary disease

Leanne Cheyne et al. Cochrane Database Syst Rev. .

Abstract

Background: Tiotropium and ipratropium bromide are both recognised treatments in the management of people with stable chronic obstructive pulmonary disease (COPD). There are new studies which have compared tiotropium with ipratropium bromide, making an update necessary.

Objectives: To compare the relative effects of tiotropium to ipratropium bromide on markers of quality of life, exacerbations, symptoms, lung function and serious adverse events in patients with COPD using available randomised controlled trial (RCT) data.

Search methods: We identified RCTs from the Cochrane Airways Group Specialised Register of trials (CAGR) and ClinicalTrials.gov up to August 2015.

Selection criteria: We included parallel group RCTs of 12 weeks duration or longer comparing treatment with tiotropium with ipratropium bromide for patients with stable COPD.

Data collection and analysis: Two review authors independently assessed studies for inclusion and then extracted data on study quality and outcome results. We contacted trial sponsors for additional information. We analysed the data using Cochrane Review Manager.

Main results: This review included two studies of good methodological quality that enrolled 1073 participants with COPD. The studies used a similar design and inclusion criteria and were of at least 12 weeks duration; the participants had a mean forced expiratory volume in one second (FEV1) of 40% predicted value at baseline. One study used tiotropium via the HandiHaler (18 µg) for 12 months and the other via the Respimat device (5 µg and 10 µg) for 12 weeks. In general, the treatment groups were well matched at baseline but not all outcomes were reported for both studies. Overall the risk of bias across the included RCTs was low.For primary outcomes this review found that at the three months trough (the lowest level measured before treatment) FEV1 significantly increased with tiotropium compared to ipratropium bromide (mean difference (MD) 109 mL; 95% confidence interval (CI) 81 to 137, moderate quality evidence, I(2) = 62%). There were fewer people experiencing one or more non-fatal serious adverse events on tiotropium compared to ipratropium (odds ratio (OR) 0.5; 95% CI 0.34 to 0.73, high quality evidence). This represents an absolute reduction in risk from 176 to 97 per 1000 people over three to 12 months. Concerning disease specific adverse events, the tiotropium group were also less likely to experience a COPD-related serious adverse event when compared to ipratropium bromide (OR 0.59; 95% CI 0.41 to 0.85, moderate quality evidence).For secondary outcomes, both studies reported fewer hospital admissions in the tiotropium group (OR 0.34; 95% CI 0.15 to 0.70, moderate quality evidence); as well as fewer patients experiencing one or more exacerbations leading to hospitalisation in the people on tiotropium in both studies (OR 0.56; 95% CI 0.31 to 0.99, moderate quality evidence). There was no significant difference in mortality between the treatments (OR 1.39; 95% CI 0.44 to 4.39, moderate quality evidence). One study measured quality of life using the St George's Respiratory Questionnaire (SGRQ); the mean SGRQ score at 52 weeks was lower in the tiotropium group than the ipratropium group (lower on the scale is favourable) (MD -3.30; 95% CI -5.63 to -0.97, moderate quality evidence). There were fewer participants suffering one of more exacerbations in the tiotropium arm (OR 0.71; 95% CI 0.52 to 0.95, high quality evidence) and there was also a reported difference in the mean number of exacerbations per person per year which reached statistical significance (MD -0.23; 95% CI -0.39 to -0.07, P = 0.006, moderate quality evidence). From the 1073 participants there were significantly fewer withdrawals from the tiotropium group (OR 0.58; 95% CI 0.41 to 0.83, high quality evidence).

Authors' conclusions: This review shows that tiotropium treatment, when compared with ipratropium bromide, was associated with improved lung function, fewer hospital admissions (including those for exacerbations of COPD), fewer exacerbations of COPD and improved quality of life. There were both fewer serious adverse events and disease specific events in the tiotropium group, but no significant difference in deaths with ipratropium bromide when compared to tiotropium. Thus, tiotropium appears to be a reasonable choice (instead of ipratropium bromide) for patients with stable COPD, as proposed in guidelines. A recent large double-blind trial of the two delivery devices found no substantial difference in mortality using 2.5 µg or 5 µg of tiotropium via Respimat in comparison to 18 µg via Handihaler.

PubMed Disclaimer

Conflict of interest statement

LC and MI: none known.

JW has received funding from Boehringer Ingleheim and Pfizer to provide an educational session in primary care on the management of respiratory conditions.

Figures

1
1
study flow diagram.
2
2
Risk of bias summary: review authors' judgements about each risk of bias item for each included study.
1.1
1.1. Analysis
Comparison 1 Tiotropium versus ipratropium, Outcome 1 Change in baseline trough FEV1 at 3 months.
1.2
1.2. Analysis
Comparison 1 Tiotropium versus ipratropium, Outcome 2 Change in baseline trough FEV1 at 12 months.
1.3
1.3. Analysis
Comparison 1 Tiotropium versus ipratropium, Outcome 3 Patients with at least one serious adverse event.
1.4

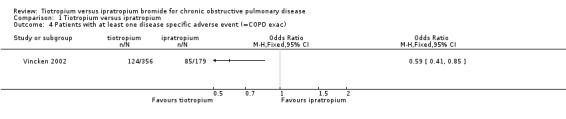

1.4. Analysis
Comparison 1 Tiotropium versus ipratropium, Outcome 4 Patients with at least one disease specific adverse event (=COPD exac).
1.5
1.5. Analysis
Comparison 1 Tiotropium versus ipratropium, Outcome 5 Patients with at least one hospital admission (all cause).
1.6
1.6. Analysis
Comparison 1 Tiotropium versus ipratropium, Outcome 6 Patients with at least one exacerbation requiring hospitalisation.
1.7
1.7. Analysis
Comparison 1 Tiotropium versus ipratropium, Outcome 7 All cause mortality.
1.8
1.8. Analysis
Comparison 1 Tiotropium versus ipratropium, Outcome 8 SGRQ.
1.9
1.9. Analysis
Comparison 1 Tiotropium versus ipratropium, Outcome 9 Withdrawals.
1.10
1.10. Analysis
Comparison 1 Tiotropium versus ipratropium, Outcome 10 Patients with one or more exacerbations.
1.11
1.11. Analysis
Comparison 1 Tiotropium versus ipratropium, Outcome 11 Mean number of exacerbations per patient per year.
1.12
1.12. Analysis
Comparison 1 Tiotropium versus ipratropium, Outcome 12 BDI.
1.13
1.13. Analysis
Comparison 1 Tiotropium versus ipratropium, Outcome 13 TDI.
1.14
1.14. Analysis
Comparison 1 Tiotropium versus ipratropium, Outcome 14 Change from baseline in total SGRQ score.

Update of

Comment in

References

References to studies included in this review

Vincken 2002 {published data only}
    1. Oostenbrink JB, Rutten‐van Molken MP, Al MJ, Noord JA, Vincken W. One‐year cost‐effectiveness of tiotropium versus ipratropium to treat chronic obstructive pulmonary disease. European Respiratory Journal 2004;23(2):241‐9. - PubMed
    1. Noord JA, Bantje TA, Eland ME, Korducki L, Cornelissen PJG. A randomised controlled comparison of tiotropium and ipratropium in the treatment of chronic obstructive pulmonary disease. Thorax 2000;55(4):289‐94. - PMC - PubMed
    1. Vincken W, Noord JA, Greefhorst A, Bantje TA, Kesten S, Korducki L, et al. Improved health outcomes in patients with COPD during 1 yr's treatment with tiotropium. European Respiratory Journal 2002;19(2):209‐16. - PubMed
Voshaar 2008 {published data only}
    1. 205.251. SPIRIVA ® – Pulmonary Disease, Chronic Obstructive (Clinical trial 205.251). http://trials.boehringer‐ingelheim.com/trial_results/clinical_trials_overview/205/205_251.html (accessed 2 September 2015).
    1. 205.252. SPIRIVA ® – Pulmonary Disease, Chronic Obstructive. http://trials.boehringer‐ingelheim.com/trial_results/clinical_trials_overview/205/205_252.html (accessed 2 September 2015).
    1. Voshaar T, Lapidus R, Maleki‐Yazdi R, Timmer W, Rubin E, Lowe L, et al. A randomized study of tiotropium Respimats Soft MistTM Inhaler vs. ipratropium pMDI in COPD. Respiratory Medicine 2008;102:32‐41. - PubMed

References to studies excluded from this review

Kerwin 2013 {unpublished data only}
    1. Kerwin EM, Fogarty C, Dunn K, Singh D, Tutuncu A. Cardiovascular safety of nebulized glycopyrrolate (SUN‐101) compared with tiotropium, ipratropium and placebo in patients with COPD. American Journal of Respiratory and Critical Care Medicine 2013;187:A1483.
Kim 2005 {published data only}
    1. Kim SJ, Kim MS, Lee SH, Kim YK, Moon HS, Park SH, et al. A comparison of tiotropium 18mug, once daily and ipratropium 40mug, 4 times daily in a double‐blind, double‐dummy, efficacy and safety study in adults with chronic obstructive pulmonary disease. Tuberculosis and Respiratory Diseases 2005;58(5):498‐506.
NCT02172443 {unpublished data only}
    1. NCT02172443. Comparison of 18 mcg of tiotropium inhalation capsules and atrovent metered dose inhaler (2 puffs of 20 mcg) in a double blind, double dummy, efficacy and safety study in adults with chronic obstructive pulmonary disease (COPD). https://clinicaltrials.gov/ct2/show/NCT02172443 (accessed 1 September 2015).
NCT02172469 {unpublished data only}
    1. NCT02172469. A comparison of 18 µg of tiotropium inhalation capsules and Atrovent® metered dose inhaler (2 puffs of 20 µg, 4 times daily) in a double‐blind, double‐dummy, efficacy and safety study in adults with chronic obstructive pulmonary disease (COPD). https://clinicaltrials.gov/ct2/show/study/NCT02172469 (accessed 1 September 2015).
Niewoehner 2009 {published data only}
    1. Niewoehner DE, Lapidus R, Cote C, Sharafkhaneh A, Plautz M, Johnson P, et al. Therapeutic conversion of the combination of ipratropium and albuterol to tiotropium in patients with chronic obstructive pulmonary disease. Pulmonary Pharmacology and Therapeutics 2009;22(6):587‐92. - PubMed
Serby 2002 {published data only}
    1. Serby CW, Schwartzstein RM, Jones PW, Ries AL, Killian KJ. Tiotropium: 1‐Yr studies versus placebo/ipratropium. European Respiratory Review 2002;12(82):40‐2.
Wang 2007 {published data only}
    1. Wang HY, Xiao Y, Shi LL, Gong Q, Wen ZG. Study on efficacy and safety of tiotropium powder in patients with stable COPD. Chinese Journal of New Drugs 2007;16(14):1119‐22.
Zheng 2006 {published data only}
    1. Zheng JP, Kang J, Cai BQ, Zhou X, Cao ZL, Bai CX, et al. Comparison of tiotropium inhalation capsules and ipratropium metered dose inhaler in a randomized, double‐blind, double‐dummy, efficacy and safety study in patients with chronic obstructive pulmonary disease. Chinese Journal of Tuberculosis and Respiratory Diseases 2006;29(6):363‐7. - PubMed

Additional references

Barnes 2000
    1. Barnes P. The pharmacological properties of tiotropium. Chest 2000;117:63S. - PubMed
Barr 2005
    1. Barr RG, Bourbeau J, Camargo Carlos A. Tiotropium for stable chronic obstructive pulmonary disease. Cochrane Database of Systematic Reviews 2005, Issue 2. [DOI: 10.1002/14651858.CD002876.pub2] - DOI - PMC - PubMed
BNF
    1. British National Formulary. www.bnf.org (accessed 1 November 2011).
Celli 2010
    1. Celli B, Decramer M, Leimer I, Vogel U, Kesten S, Tashkin DP. Cardiovascular safety of tiotropium in patients with COPD. Chest 2010;137(1):20‐30. - PubMed
Dong 2013
    1. Dong YH, Lin HH, Shau WY, Wu YC, Chang CH, Lai MS. Comparative safety of inhaled medications in patients with chronic obstructive pulmonary disease: systematic review and mixed treatment comparison meta‐analysis of randomised controlled trials. Thorax 2013;68(1):48‐56. - PubMed
GOLD 2015
    1. GOLD. From the Global Strategy for the Diagnosis, Management and Prevention of COPD, Global Initiative for Chronic Obstructive Lung Disease (GOLD) 2015. http://www.goldcopd.org/uploads/users/files/GOLD_Report_2015_Apr2.pdf (accessed 2 September 2015).
Healthcare Commission 2006
    1. Great Britain. Commission for Healthcare Audit and Inspection. Clearing the air: A national study of chronic obstructive pulmonary disease. Healthcare Commission. The Healthcare Commission (Jun. 2006), 2006.
Higgins 2008
    1. Higgins JPT, Green S, editors. Cochrane Handbook for Systematic Reviews of Interventions Version 5.1 [updated March 2011]. The Cochrane Collaboration, 2011. Available from www.cochrane‐handbook.org.
Karner 2011
    1. Karner C, Cates CJ. The added effect of inhaled corticosteroids to tiotropium and long‐acting beta2‐agonists for chronic obstructive pulmonary disease. Cochrane Database of Systematic Reviews 2011, Issue 3. [DOI: 10.1002/14651858.CD009039] - DOI - PMC - PubMed
Karner 2011a
    1. Karner C, Cates CJ. Combination inhaled steroid and long‐acting beta2‐agonist in addition to tiotropium versus tiotropium or combination alone for chronic obstructive pulmonary disease. Cochrane Database of Systematic Reviews 2011, Issue 3. [DOI: 10.1002/14651858.CD008532.pub2] - DOI - PMC - PubMed
Karner 2011b
    1. Karner C, Cates CJ. Long‐acting beta2‐agonist in addition to tiotropium versus either tiotropium or long‐acting beta2‐agonist alone for chronic obstructive pulmonary disease. Cochrane Database of Systematic Reviews 2011, Issue 2. [DOI: 10.1002/14651858.CD008989] - DOI - PubMed
Karner 2012
    1. Karner C, Chong J, Poole P. Tiotropium versus placebo for chronic obstructive pulmonary disease. Cochrane Database of Systematic Reviews 2012, Issue 7. [DOI: 10.1002/14651858.CD009285.pub2] - DOI - PubMed
Kesten 2009
    1. Kesten S, Celli B, Decramer M, Leimer I, Tashkin D. Tiotropium HandiHaler® in the treatment of COPD: A safety review. International Journal of Chronic Obstructive Pulmonary Disease 2009;4:397‐409. - PMC - PubMed
Lubinski 2004
    1. Lubinski W. Tiotropium as a controller of bronchoconstriction. Polski Merkuriusz Lekarski 2004;16:75‐76, 78. - PubMed
NICE 2010
    1. NICE. Chronic obstructive pulmonary disease: Management of chronic obstructive pulmonary disease in adults in primary and secondary care (partial update). https://www.nice.org.uk/guidance/cg101 (accessed 2 September 2015).
Ogale 2010
    1. Ogale SS, Lee TA, Au DH, Boudreau DM, Sullivan SD. Cardiovascular events associated with ipratropium bromide in COPD. Chest 2010;137(1):13‐9. [0012‐3692] - PubMed
Ram 2011
    1. Ram FS. Tiotropium mist inhaler for COPD increases risk of mortality compared with placebo. Evidence Based Medicine 2011;16(6):189‐90. - PubMed
RevMan 5 [Computer program]
    1. The Nordic Cochrane Centre, The Cochrane Collaboration. Review Manager (RevMan). Version 5.3. Copenhagen: The Nordic Cochrane Centre, The Cochrane Collaboration, 2014.
Salpeter 2006
    1. Salpeter R, Buckley N, Salpeter E. Meta‐analysis: Anticholinergics, but not beta agonists, reduce severe exacerbations and respiratory mortality in COPD. Journal of General Internal Medicine 2006;21(10):1011‐9. - PMC - PubMed
Sears 2008
    1. Sears M, Hamilton M. Long‐acting bronchodilators in COPD. Chest 2008;133(5):1057‐8. - PubMed
Singh 2008
    1. Singh S, Loke YK, Furberg CD. Inhaled anticholinergics and risk of major adverse cardiovascular events in patients with chronic obstructive pulmonary disease: a systematic review and meta‐analysis. JAMA 2008;300(12):1439‐50. - PubMed
Singh 2013
    1. Singh S, Loke YK, Enright P, Furberg CD. Pro‐arrhythmic and pro‐ischaemic effects of inhaled anticholinergic medications. Thorax 2013;68(1):114‐6. - PubMed
Welsh 2010
    1. Welsh EJ, Cates CJ, Poole P. Combination inhaled steroid and long‐acting beta2‐agonist versus tiotropium for chronic obstructive pulmonary disease. Cochrane Database of Systematic Reviews 2010, Issue 5. [DOI: 10.1002/14651858.CD007891.pub2] - DOI - PubMed
Wise 2013
    1. Wise RA, Anzueto A, Cotton D, Dahl R, Devins T, Disse B, et al. Tiotropium respimat inhaler and the risk of death in COPD. New England Journal of Medicine 2013;369(16):1491‐501. - PubMed
Yohannes 2011
    1. Yohannes AW, Willgoss TG, Vestbo J. Tiotropium for treatment of stable COPD: A meta‐analysis of clinically relevant outcomes. Respiratory Care 2011;56(4):477‐87. - PubMed
