. 2015 Aug 15;71(Pt 9):o661-2.
doi: 10.1107/S205698901501484X. eCollection 2015 Sep 1.

Crystal structure of l-tryptophan-fumaric acid-water (1/1/1)

M Lydia Caroline  1 , S Kumaresan  1 , P G Aravindan  2 , M Peer Mohamed  3 , G Mani  1
Affiliations

Crystal structure of l-tryptophan-fumaric acid-water (1/1/1)

M Lydia Caroline et al. Acta Crystallogr E Crystallogr Commun. .

Abstract

In the title compound, C11H12N2O2·C4H4O4·H2O, the l-tryp-to-phan mol-ecule crystallized as a zwitterion, together with a neutral fumaric acid mol-ecule and a water solvent mol-ecule. In the crystal, the three components are linked by a series of N-H⋯O, O-H⋯O and C-H⋯O hydrogen bonds, forming slabs lying parallel to (001). The slabs are connected by O-H⋯O hydrogen bonds, involving inversion-related fumaric acid groups, leading to the formation of a three-dimensional structure.

Keywords: crystal structure; fumaric acid; hydrogen bonding; l-tryptophan; three-dimensional structure.

PubMed Disclaimer

Figures

Fig. 1.
Fig. 1.

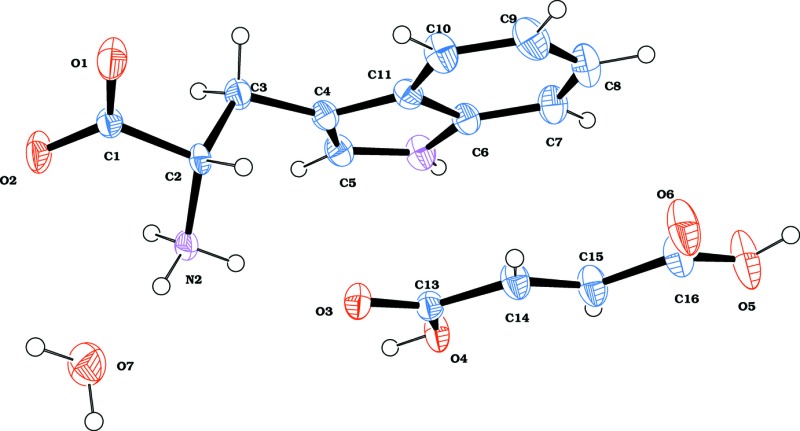

The molecular structure of the title compound, with atom labelling. Displacement ellipsoids are drawn at the 40% probability level.
Fig. 2.
Fig. 2.
The crystal packing of the title compound, viewed along the a axis. The hydrogen bonds are shown as dashed lines (see Table 1 for details).
Fig. 3.
Fig. 3.
The crystal packing of the title compound, viewed along the b axis. The hydrogen bonds are shown as dashed lines (see Table 1 for details).
See this image and copyright information in PMC

References

    1. Altomare, A., Cascarano, G., Giacovazzo, C., Guagliardi, A., Burla, M. C., Polidori, G. & Camalli, M. (1994). J. Appl. Cryst. 27, 435.
    1. Bakke, O., Mostad, A., Grynfarb, M., Bartfai, T. & Enzell, C. R. (1980). Acta Chem. Scand. 34b, 559–570.
    1. Bednowitz, A. L. & Post, B. (1966). Acta Cryst. 21, 566–571.
    1. Bruker (2004). APEX2, SAINT and SADABS. Bruker AXS Inc., Madison, Wisconsin, USA.
    1. Bye, E., Mostad, A., Rømming, C., Husebye, S., Klaeboe, P. & Swahn, C. (1973). Acta Chem. Scand. 27, 471–484.
