Meta-Analysis
. 2015 Nov 7;2015(11):CD006876.
doi: 10.1002/14651858.CD006876.pub4.

Electromechanical and robot-assisted arm training for improving activities of daily living, arm function, and arm muscle strength after stroke

Jan Mehrholz  1 , Marcus Pohl, Thomas Platz, Joachim Kugler, Bernhard Elsner
Affiliations
Meta-Analysis

Electromechanical and robot-assisted arm training for improving activities of daily living, arm function, and arm muscle strength after stroke

Jan Mehrholz et al. Cochrane Database Syst Rev. .

Update in

Abstract

Background: Electromechanical and robot-assisted arm training devices are used in rehabilitation, and may help to improve arm function after stroke.

Objectives: To assess the effectiveness of electromechanical and robot-assisted arm training for improving activities of daily living, arm function, and arm muscle strength in people after stroke. We also assessed the acceptability and safety of the therapy.

Search methods: We searched the Cochrane Stroke Group's Trials Register (last searched February 2015), the Cochrane Central Register of Controlled Trials (CENTRAL) (the Cochrane Library 2015, Issue 3), MEDLINE (1950 to March 2015), EMBASE (1980 to March 2015), CINAHL (1982 to March 2015), AMED (1985 to March 2015), SPORTDiscus (1949 to March 2015), PEDro (searched April 2015), Compendex (1972 to March 2015), and Inspec (1969 to March 2015). We also handsearched relevant conference proceedings, searched trials and research registers, checked reference lists, and contacted trialists, experts, and researchers in our field, as well as manufacturers of commercial devices.

Selection criteria: Randomised controlled trials comparing electromechanical and robot-assisted arm training for recovery of arm function with other rehabilitation or placebo interventions, or no treatment, for people after stroke.

Data collection and analysis: Two review authors independently selected trials for inclusion, assessed trial quality and risk of bias, and extracted data. We contacted trialists for additional information. We analysed the results as standardised mean differences (SMDs) for continuous variables and risk differences (RDs) for dichotomous variables.

Main results: We included 34 trials (involving 1160 participants) in this update of our review. Electromechanical and robot-assisted arm training improved activities of daily living scores (SMD 0.37, 95% confidence interval (CI) 0.11 to 0.64, P = 0.005, I² = 62%), arm function (SMD 0.35, 95% CI 0.18 to 0.51, P < 0.0001, I² = 36%), and arm muscle strength (SMD 0.36, 95% CI 0.01 to 0.70, P = 0.04, I² = 72%), but the quality of the evidence was low to very low. Electromechanical and robot-assisted arm training did not increase the risk of participant drop-out (RD 0.00, 95% CI -0.02 to 0.03, P = 0.84, I² = 0%) with moderate-quality evidence, and adverse events were rare.

Authors' conclusions: People who receive electromechanical and robot-assisted arm and hand training after stroke might improve their activities of daily living, arm and hand function, and arm and hand muscle strength. However, the results must be interpreted with caution because the quality of the evidence was low to very low, and there were variations between the trials in the intensity, duration, and amount of training; type of treatment; and participant characteristics.

PubMed Disclaimer

Conflict of interest statement

Jan Mehrholz: was a co‐author of one included trial (Hesse 2005). He did not participant in the quality assessment or data extraction of this study. Marcus Pohl: was a co‐author of one included trial (Hesse 2005). He did not participant in the quality assessment or data extraction of this study. Thomas Platz: none known. Joachim Kugler: none known. Bernhard Elsner: none known.

Figures

Figure 1
Figure 1
Study flow diagram. Please note that several studies have been published in multiple full‐text articles. Hence the number of assessed full‐text articles and the number of identified studies may differ.
Figure 2

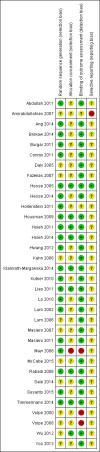

Figure 2
Risk of bias summary: review authors' judgements about each risk of bias item for each included study.
Figure 3
Figure 3
Funnel plot of comparison: 1 Electromechanical and robotic assisted training versus all other intervention, outcome: 1.1 Activities of daily living at the end of intervention phase.
Figure 4
Figure 4
Funnel plot of comparison: 1 Electromechanical and robotic assisted training versus all other intervention, outcome: 1.3 Arm function at the end of intervention phase.
Figure 5
Figure 5
Funnel plot of comparison: 1 Electromechanical and robotic assisted training versus all other intervention, outcome: 1.4 Arm muscle strength at the end of intervention phase.
Analysis 1.1
Analysis 1.1
Comparison 1 Electromechanical and robotic assisted training versus all other intervention, Outcome 1 Activities of daily living at the end of intervention phase.
Analysis 1.2
Analysis 1.2
Comparison 1 Electromechanical and robotic assisted training versus all other intervention, Outcome 2 Activities of daily living at the end of intervention phase: subgroup analysis comparing acute and chronic phase.
Analysis 1.3
Analysis 1.3
Comparison 1 Electromechanical and robotic assisted training versus all other intervention, Outcome 3 Arm function at the end of intervention phase.
Analysis 1.4
Analysis 1.4
Comparison 1 Electromechanical and robotic assisted training versus all other intervention, Outcome 4 Arm muscle strength at the end of intervention phase.
Analysis 1.5
Analysis 1.5
Comparison 1 Electromechanical and robotic assisted training versus all other intervention, Outcome 5 Acceptability: drop‐outs during intervention period.
Analysis 2.1
Analysis 2.1
Comparison 2 Sensitivity analysis: by trial methodology, Outcome 1 Activities of daily living.
Analysis 2.2
Analysis 2.2
Comparison 2 Sensitivity analysis: by trial methodology, Outcome 2 Arm function.
Analysis 3.1
Analysis 3.1
Comparison 3 Subgroup analysis by treatment approach, Outcome 1 Activities of daily living at the end of intervention phase: subgroup analysis comparing different device groups.
Analysis 3.2
Analysis 3.2
Comparison 3 Subgroup analysis by treatment approach, Outcome 2 Arm function at the end of intervention phase: subgroup analysis comparing different device groups.
See this image and copyright information in PMC

Update of

References

References to studies included in this review

    1. Abdullah HA, Tarry C, Lambert C, Barreca S, Allen BO. Results of clinicians using a therapeutic robotic system in an inpatient stroke rehabilitation unit. Journal of NeuroEngineering and Rehabilitation 2011;8:50. - PMC - PubMed
    2. Tarry C, Lambert C, Barreca S, Allen BO. Results of clinicians using a therapeutic robotic system in an inpatient stroke rehabilitation unit. Journal of NeuroEngineering and Rehabilitation2011; Vol. 8:50. [MEDLINE: ; 1743‐0003] - PMC - PubMed
    1. Amirabdollahian F, Loureiro R, Gradwell E, Collin C, Harwin W, Johnson G. Multivariate analysis of the Fugl‐Meyer outcome measures assessing the effectiveness of GENTLE/S robot‐mediated stroke therapy. Journal of NeuroEngineering and Rehabilitation 2007;4:4. - PMC - PubMed
    2. Coote S, Murphy BT, Stokes EK. The effect of robot mediated therapy on upper extremity function post stroke. 14th International Congress of the World Confederation for Physical Therapy, Barcelona, Spain. World Confederation for Physical Therapy, 2003.
    3. Coote S, Stokes EK. The effect of robot mediated therapy on upper extremity function following stroke ‐ initial results. Irish Journal of Medical Science 2003;172(2):26‐7.
    1. Ang KK, Guan C, Phua KS, Wang C, Zhou L, Tang KY, et al. Brain‐computer interface‐based robotic end effector system for wrist and hand rehabilitation: Results of a three‐armed randomized controlled trial for chronic stroke. Frontiers in Neuroengineering.2014; Vol. 7:30. - PMC - PubMed
    2. NCT01287975. Brain computer interface (BCI) technology for stroke hand rehabilitation. https://clinicaltrials.gov/ct2/show/NCT01287975 (accessed 3 June 2015).
    1. Brokaw EB, Nichols D, Holley RJ, Lum PS. Robotic therapy provides a stimulus for upper limb motor recovery after stroke that is complementary to and distinct from conventional therapy. Neurorehabilitation and Neural Repair 2014;28(4):367‐76. - PubMed
    2. NCT00995774. Extension of the MIME robotic system for stroke rehabilitation. https://clinicaltrials.gov/ct2/show/NCT00995774 (accessed 3 June 2015).
    1. Burgar CG, Lum PS, Scremin AM, Garber SL, Loos HF, Kenney D, et al. Robot‐assisted upper‐limb therapy in acute rehabilitation setting following stroke: Department of Veterans Affairs multisite clinical trial. Journal of Rehabilitation Research and Development 2011;48(4):445‐58. - PubMed
    2. NCT00011583. Robot assisted upper limb neuro‐rehabilitation. https://clinicaltrials.gov/ct2/show/NCT00011583 (accessed 3 June 2015).

References to studies excluded from this review

    1. Abdollahi F, Case Lazarro ED, Listenberger M, Kenyon RV, Kovic M, Bogey RA, et al. Error augmentation enhancing arm recovery in individuals with chronic stroke: a randomized crossover design. Neurorehabilitation and Neural Repair2014; Vol. 28, issue 2:120‐8. [1552‐6844] - PMC - PubMed
    1. Aisen ML, Krebs HI, Hogan N, McDowell F, Volpe BT. The effect of robot‐assisted therapy and rehabilitative training on motor recovery following stroke. Archives of Neurology 1997;54(4):443‐6. - PubMed
    1. Der‐Yeghiaian L, Sharp KG, See J, Abidi NS, Mai K, Le VH, et al. Robotic therapy after stroke and the influence of baseline motor status. Stroke 2009;40(4):e169.
    2. Dodakian L, Sharp KG, See J, Abidi NS, Mai K, Fling BW, et al. Targeted engagement of a dorsal premotor circuit in the treatment of post‐stroke paresis. NeuroRehabilitation 2013;33(1):13‐24. - PubMed
    1. Fasoli SE, Krebs HI, Stein J, Frontera WR, Hogan N. Effects of robotic therapy on motor impairment and recovery in chronic stroke. Archives of Physical Medicine and Rehabilitation 2003;84(4):477‐82. - PubMed
    2. Stein J, Krebs HI, Frontera WR, Fasoli SE, Hughes R, Hogan N. Comparison of two techniques of robot‐aided upper limb exercise training after stroke. American Journal of Physical Medicine and Rehabilitation 2004;83(9):720‐8. - PubMed
    1. Fluet G. Robotically Facilitated Virtual Rehabilitation of Arm Transport Integrated With Finger Movement Versus Isolated Training of the Arm and Hand in Persons With Hemiparesis [Dissertation]. University of Medicine and Dentistry of New Jersey, 2012. [MEDLINE: ; 978‐1‐267‐42769‐4]

References to studies awaiting assessment

    1. ISRCTN33421390. Arm Intervention After Stroke (AIAS): a feasibility study. http://www.isrctn.com/ISRCTN33421390 (accessed 12 June 2015).
    1. Chisari C, Frisoli A, Sotgiu E, Procopio C, Bertolucci F, Bergamasco M, et al. Training and assessment of upper limb motor function with a robotic exoskeleton in chronic stroke patients. Gait and Posture 2014;40:S27‐8. [MEDLINE: ; 0966‐6362]
    1. Faran S, Kaick S, Eickhoff C, Mahoney R, Mauritz KH. An active and repetitive robot assisted training improves functional motor recovery of the arm in sub‐acute stroke patients. Stroke 2008;39(2):617.
    1. NCT00435617. Study of hand therapy 3 to 24 months after stroke. Clinical assessment of a massed practice therapy device ‐ study of hand therapy 3 to 24 months after stroke. http://clinicaltrials.gov/ct2/show/NCT00435617 (accessed 27 May 2015).
    1. Reinkensmeyer DJ, Wolbrecht ET, Chan V, Chou C, Cramer SC, Bobrow JE. Comparison of three‐dimensional, assist‐as‐needed robotic arm/hand movement training provided with Pneu‐WREX to conventional tabletop therapy after chronic stroke. American Journal of Physical Medicine and Rehabilitation 2012;91(11 Suppl):s232‐41. - PMC - PubMed

References to ongoing studies

    1. Krebs HI, Volpe BT, Williams D, Celestino J, Charles SK, Lynch D, et al. Robot‐aided neurorehabilitation: a robot for wrist rehabilitation. IEEE Transactions on Neural Systems and Rehabilitation Engineering 2007;15(3):327‐34. - PMC - PubMed
    1. Linder SM, Rosenfeldt AB, Reiss A, Buchanan S, Sahu K, Bay CR, et al. The home stroke rehabilitation and monitoring system trial: a randomized controlled trial. International Journal of Stroke2013; Vol. 8, issue 1:46‐53. [MEDLINE: ; 1747‐4949] - PMC - PubMed
    1. NCT00272259. Robots for stroke survivors. http://clinicaltrials.gov/ct2/show/NCT00272259 (accessed 29 May 2015).
    1. NCT00343304. Pilot study ‐ comparison of upper body ergometer vs. robot in upper extremity motor recovery post‐stroke. https://clinicaltrials.gov/ct2/show/NCT00343304 (accessed 3 June 2015).
    1. NCT00453843. Shoulder, or elbow, or wrist: what should we train first after a stroke? The effect of proximal and distal training on stroke recovery. http://clinicaltrials.gov/ct2/show/NCT00453843 (accessed 29 May 2015 ).

Additional references

    1. Adams HP Jr, Bendixen BH, Kappelle LJ, Biller J, Love BB, Gordon DL, et al. Classification of subtype of acute ischemic stroke. Definitions for use in a multicenter clinical trial. TOAST. Trial of Org 10172 in Acute Stroke Treatment. Stroke 1993;24(1):35‐41. - PubMed
    1. Barker RN, Brauer SG. Upper limb recovery after stroke: the stroke survivors' perspective. Disability and Rehabilitation 2005;30(20):1213‐23. - PubMed
    1. Burgar CG, Lum PS, Shor PC, Machiel Van der Loos HF. Development of robots for rehabilitation therapy: the Palo Alto VA/Stanford experience. Journal of Rehabilitation Research and Development 2000;37(6):663‐73. - PubMed
    1. Collin C, Wade D. Assessing motor impairment after stroke: a pilot reliability study. Journal of Neurology, Neurosurgery and Psychiatry 1990;53(7):576‐9. - PMC - PubMed
    1. Coote S, Stokes EK. A Gentle Robot – attitudes to the first European prototype of a robot mediated therapy system. Proceedings of the World Congress of Physical Therapy; 2003 June 7‐12 Barcelona, Spain. Barcelona, Spain: WCPT, 2003:RR‐PL‐1940.

References to other published versions of this review

    1. Mehrholz J, Platz T, Kugler J, Pohl M. Electromechanical and robot‐assisted arm training for improving arm function and activities of daily living after stroke. Cochrane Database of Systematic Reviews 2008, Issue 4. [DOI: 10.1002/14651858.CD006876.pub2] - DOI - PubMed
    1. Mehrholz J, Hädrich A, Platz T, Kugler J, Pohl M. Electromechanical and robot‐assisted arm training for improving generic activities of daily living, arm function, and arm muscle strength after stroke. Cochrane Database of Systematic Reviews 2012, Issue 6. [DOI: 10.1002/14651858.CD006876.pub3] - DOI - PubMed
