. 2015 Sep 7:6:1872-82.
doi: 10.3762/bjnano.6.190. eCollection 2015.

Framework for automatic information extraction from research papers on nanocrystal devices

Thaer M Dieb  1 , Masaharu Yoshioka  1 , Shinjiro Hara  2 , Marcus C Newton  3
Affiliations

Framework for automatic information extraction from research papers on nanocrystal devices

Thaer M Dieb et al. Beilstein J Nanotechnol. .

Abstract

To support nanocrystal device development, we have been working on a computational framework to utilize information in research papers on nanocrystal devices. We developed an annotated corpus called " NaDev" (Nanocrystal Device Development) for this purpose. We also proposed an automatic information extraction system called "NaDevEx" (Nanocrystal Device Automatic Information Extraction Framework). NaDevEx aims at extracting information from research papers on nanocrystal devices using the NaDev corpus and machine-learning techniques. However, the characteristics of NaDevEx were not examined in detail. In this paper, we conduct system evaluation experiments for NaDevEx using the NaDev corpus. We discuss three main issues: system performance, compared with human annotators; the effect of paper type (synthesis or characterization) on system performance; and the effects of domain knowledge features (e.g., a chemical named entity recognition system and list of names of physical quantities) on system performance. We found that overall system performance was 89% in precision and 69% in recall. If we consider identification of terms that intersect with correct terms for the same information category as the correct identification, i.e., loose agreement (in many cases, we can find that appropriate head nouns such as temperature or pressure loosely match between two terms), the overall performance is 95% in precision and 74% in recall. The system performance is almost comparable with results of human annotators for information categories with rich domain knowledge information (source material). However, for other information categories, given the relatively large number of terms that exist only in one paper, recall of individual information categories is not high (39-73%); however, precision is better (75-97%). The average performance for synthesis papers is better than that for characterization papers because of the lack of training examples for characterization papers. Based on these results, we discuss future research plans for improving the performance of the system.

Keywords: annotated corpus; automatic information extraction; nanocrystal device development; nanoinformatics; text mining.

PubMed Disclaimer

Figures

Figure 1
Figure 1

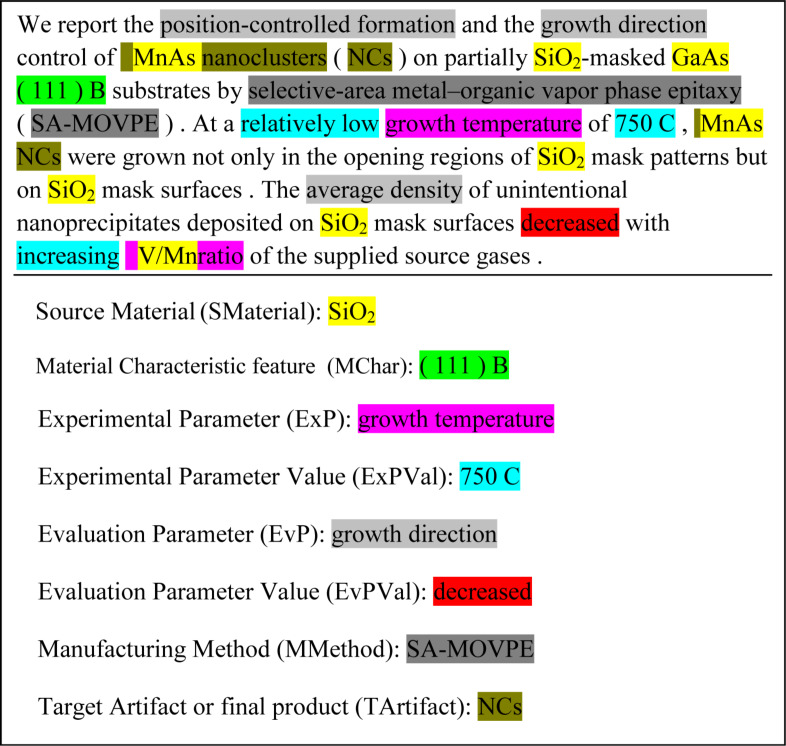

Sample of NaDev corpus.
Figure 2
Figure 2

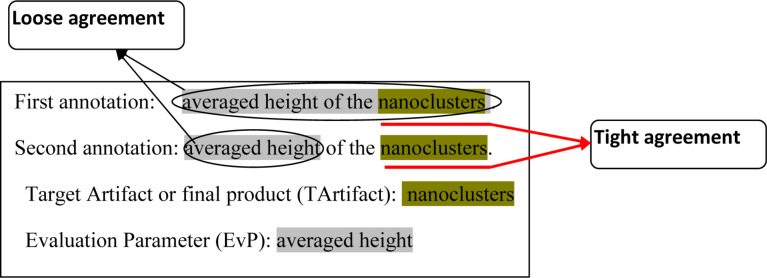

Example of tight and loose agreement.
Figure 3
Figure 3

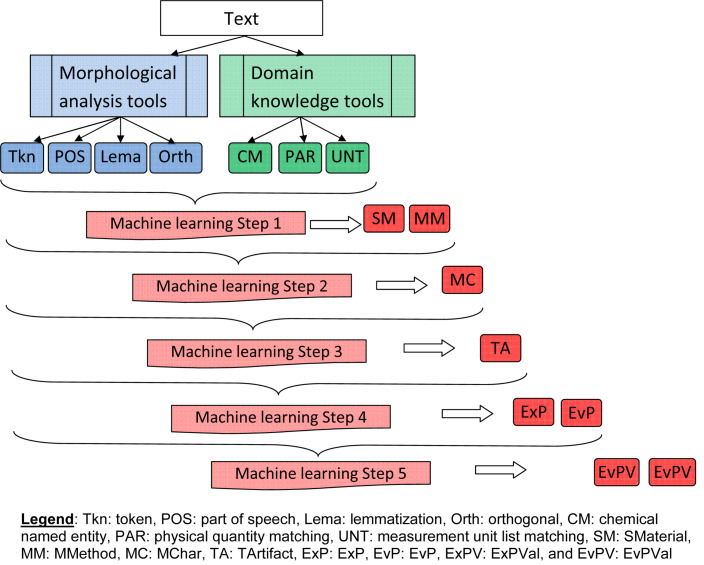

Outline of our automatic information extraction system.
Figure 4
Figure 4

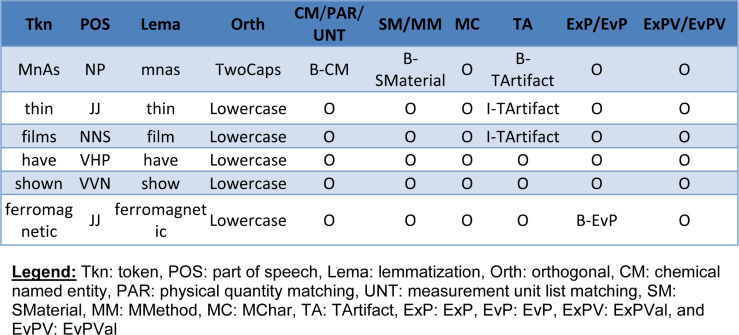

Example of CRF++ input data.
Figure 5
Figure 5

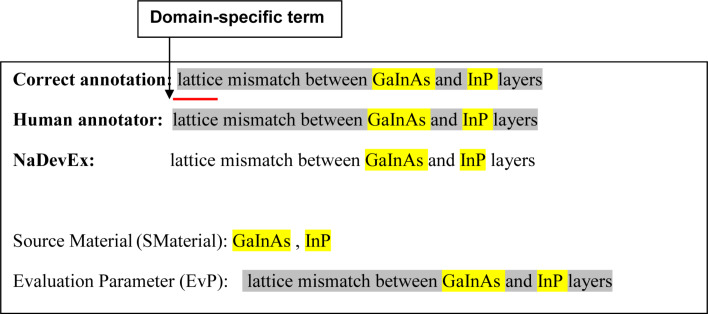

Domain-specific terms in NaDev corpus.
See this image and copyright information in PMC

Similar articles

See all similar articles

Cited by

References

    1. Kozaki K, Kitamura Y, Mizoguchi R. Systematization of nanotechnology knowledge through ontology engineering - A trial development of idea creation support system for materials design based on functional ontology; Poster notes of ISWC2003; 2003. pp. 63–64.
    1. Thomas D G, Pappu R V, Baker N A. J Biomed Inf. 2011;44:59–74. doi: 10.1016/j.jbi.2010.03.001. - DOI - PMC - PubMed
    1. [Jul 6;2015 ];DaNa project. Available from: http://www.nanoobjects.info/en/
    1. Guzan K A, Mills K C, Gupta V, Murry D, Scheier C N, Willis D A, Ostraat M L. Comput Sci Discovery. 2013;6:014007. doi: 10.1088/1749-4699/6/1/014007. - DOI
    1. Xiao L, Tang K, Liu H, Yang X, Chen Z, Xu R. Information extraction from nanotoxicity related publications; Proceedings of IEEE International Conference on Bioinformatics and Biomedicine (BIBM); pp. 25–30.
