. 2015 Dec 12;12(12):15843-59.
doi: 10.3390/ijerph121215025.

A Rapid Monitoring and Evaluation Method of Schistosomiasis Based on Spatial Information Technology

Yong Wang  1 , Dafang Zhuang  2
Affiliations

A Rapid Monitoring and Evaluation Method of Schistosomiasis Based on Spatial Information Technology

Yong Wang et al. Int J Environ Res Public Health. .

Abstract

Thanks to Spatial Information Technologies (SITs) such as Remote Sensing (RS) and Geographical Information System (GIS) that are being quickly developed and updated, SITs are being used more widely in the public health field. The use of SITs to study the characteristics of the temporal and spatial distribution of Schistosoma japonicum and to assess the risk of infection provides methods for the control and prevention of schistosomiasis japonica has gradually become a hot topic in the field. The purpose of the present paper was to use RS and GIS technology to develop an efficient method of prediction and assessment of the risk of schistosomiasis japonica. We choose the Yueyang region, close to the east DongTing Lake (Hunan Province, China), as the study area, where a recent serious outbreak of schistosomiasis japonica took place. We monitored and evaluated the transmission risk of schistosomiasis japonica in the region using SITs. Water distribution data were extracted from RS images. The ground temperature, ground humidity and vegetation index were calculated based on RS images. Additionally, the density of oncomelania snails, which are the Schistosoma japonicum intermediate host, was calculated on the base of RS data and field measurements. The spatial distribution of oncomelania snails was explored using SITs in order to estimate the area surrounding the residents with transmission risk of schistosomiasis japonica. Our research result demonstrated: (1) the risk factors for the transmission of schistosomiasis japonica were closely related to the living environment of oncomelania snails. Key factors such as water distribution, ground temperature, ground humidity and vegetation index can be quickly obtained and calculated from RS images; (2) using GIS technology and a RS deduction technique along with statistical regression models, the density distribution model of oncomelania snails could be quickly built; (3) using SITs and analysis with overlaying population distribution data, the range of transmission risk of schistosomiasis japonica of the study area can be quickly monitored and evaluated. This method will help support the decision making for the control and prevention of schistosomiasis and form a valuable application using SITs for the schistosomiasis research.

Keywords: geographical information system; remote sensing; risk assessment; schistosomiasis; spatial information technology.

PubMed Disclaimer

Figures

Figure 1
Figure 1
Geographical location of the study area.
Figure 2
Figure 2
Monitoring and assessment process of schitosomiasis.
Figure 3
Figure 3
Schistosomiasis risk area assessment process.
Figure 4
Figure 4

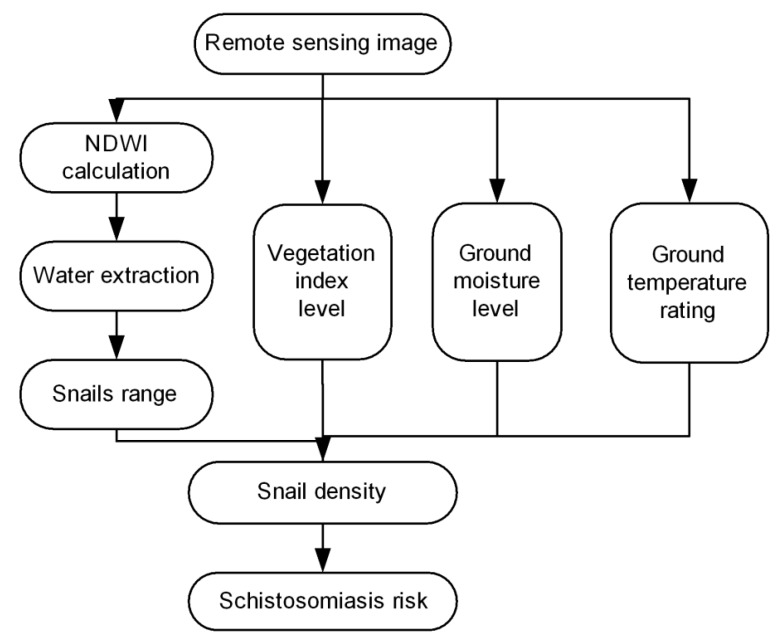

Extraction of environmental element data from remote sensing images.
Figure 5
Figure 5
NDWI variation map during the dry season in March (a) and the raining season in August (b).
Figure 6
Figure 6
The predicted snail distribution.
Figure 7
Figure 7

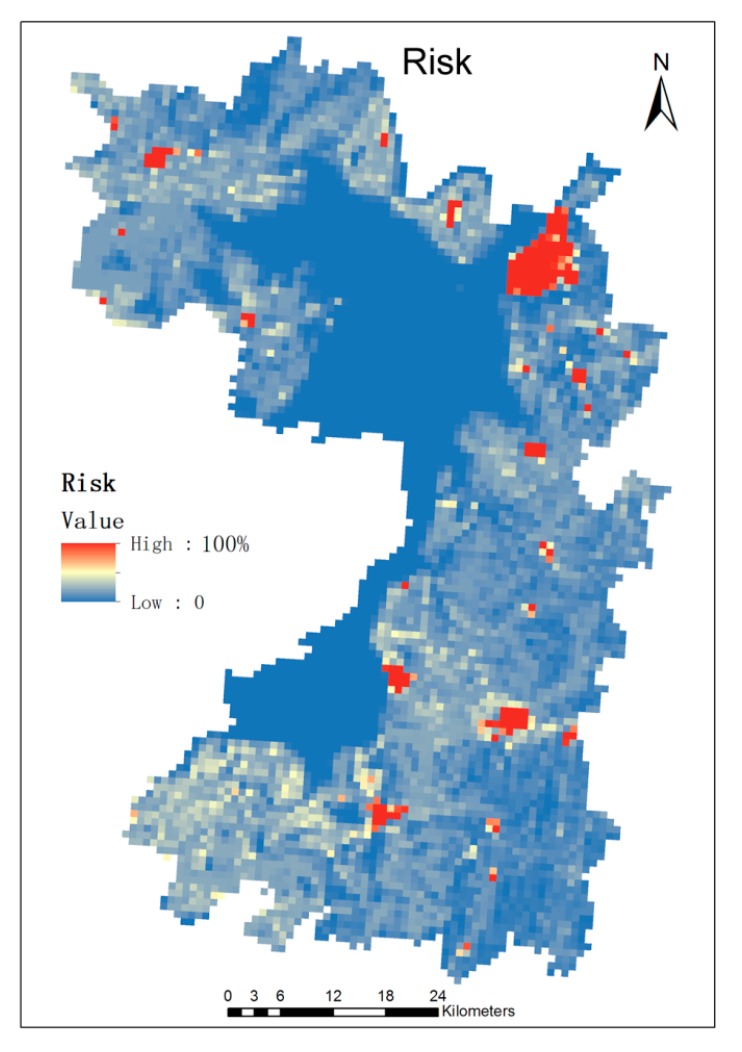

Map of the relative risk of schistosomiasis.
See this image and copyright information in PMC

Similar articles

See all similar articles

Cited by

References

    1. Chen M. Schistosomiasis in the world and its control progress. Chin. J. Schist. Con. 2002;14:81–83.
    1. Engels D., Chitsulo L., Montresor A., Savioli L. The global epidemiological situation of schistosomiasis and new approaches to control and research. Acta Tropica. 2002;82:139–146. doi: 10.1016/S0001-706X(02)00045-1. - DOI - PMC - PubMed
    1. Jiang M., Liu R., Zhao Q., Dong H., Guo Y. Social epidemiological thinking about schistosomiasis. Chin. J. Schist. Con. 2010;22:201–205.
    1. Fang J., Wu Z. Prevention and Control of Schistosomiasis in Hunan Province. Hunan People’s Publishing House; Changsha, China: 2000. pp. 128–132.
    1. Zhou X.N., Xu J., Chen H.G., Wang T.P., Huang X.B., Lin D.D., Wang Q.Z., Tang L., Guo J.G., Wu X.H., et al. Tools to support policy decisions related to treatment strategies and surveillance of Schistosomiasis Japonica towards elimination. PLoS Negl. Trop. Dis. 2011;5 doi: 10.1371/journal.pntd.0001408. - DOI - PMC - PubMed
