. 2016 Jan 12:12:4.
doi: 10.1186/s13005-016-0100-6.

Correlation between preoperative predictions and surgical findings in the parotid surgery for tumors

Michael Vaiman  1 , Judith Luckman  2 , Tal Sigal  3 , Inessa Bekerman  3
Affiliations

Correlation between preoperative predictions and surgical findings in the parotid surgery for tumors

Michael Vaiman et al. Head Face Med. .

Abstract

Background: To compare preoperative CT/MRI based predictions with real surgical findings for deep lobe parotid gland surgery.

Methods: The study analyzed 122 parotidectomies (2004-2014) for benign tumor removal. The facial nerve, the Utrecht line, the Conn's arc, and the retromandibular vein were used as landmarks for CT/MRI presurgical evaluation of patients. We assessed 106 CT images and 86 MRI images. The study compared preoperative evaluation of tumor location with its actual location that was revealed during the operation and assessed the importance of the landmarks.

Results: In general, the agreement between preoperative CT prediction and actual location of the parotid tumors was achieved in 88.7 % (n = 94/106) when facial nerve line was used as a landmark. However, out of 14 tumors in the deep lobe only 5 were located correctly (35.7 %). Of the other existing CT landmarks, none showed more precision over others. The agreement between MRI based prediction and surgical results on actual location of the tumor was achieved in 94.2 %. Out of 12 MRI-investigated tumors in the deep lobe nine were located correctly that gives 75 % agreement with surgical results.

Conclusion: Our data suggests that no existing CT landmark can be accepted as completely reliable in cases when selective deep lobe parotidectomy is planned. If tumor location is suspected in the deep lobe of the gland, MRI imaging is necessary to confirm the diagnosis. An operating surgeon should be prepared that in some cases the true location of the tumor would be revealed only during surgery.

PubMed Disclaimer

Figures

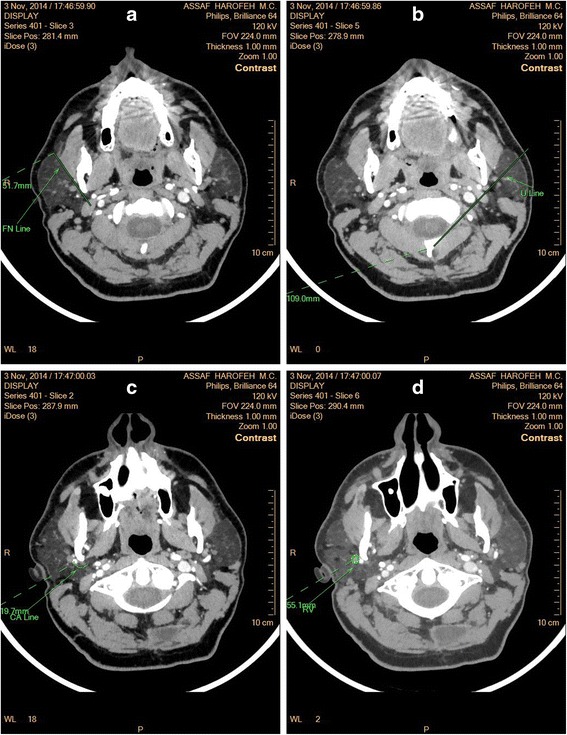

Fig. 1
Fig. 1
a The facial nerve line (FNL) is the line between the lateral surface of the posterior belly of m. digastricus and the lateral surface of the cortex of the ramus part of the mandible as seen at CT scan image. b The Utrecht line (UL) runs from the most dorsal point of the ipsilateral half of the first vertebra to the most dorsal point of the retromandibular vein as seen at CT scan image. c The Conn’s arc (CA) is a 8.5 mm radius semicircle with the center on the most distant point of the posterior edge of the ramus as seen at CT scan image. d The retromandibular vein line (RV) as seen at CT scan image
See this image and copyright information in PMC

References

    1. Lim CY, Chang HS, Nam KH, Chung WY, Park CS. Preoperative prediction of the location of parotid gland tumors using anatomical landmarks. World J Surg. 2008;32(10):2200–3. doi: 10.1007/s00268-008-9663-0. - DOI - PubMed
    1. Lee CO, Ahn CH, Kwon TG, Kim CS, Kim JW. Preoperative prediction of the location of parotid gland tumors using radiographic anatomical landmarks. J Korean Assoc Oral Maxillofac Surg. 2012;38:38–43. doi: 10.5125/jkaoms.2012.38.1.38. - DOI
    1. Ariyoshi Y, Shimahara M. Determining whether a parotid tumor is in the superficial or deep lobe using magnetic resonance imaging. J Oral Maxillofac Surg. 1998;56(1):23–6. doi: 10.1016/S0278-2391(98)90909-0. - DOI - PubMed
    1. de Ru JA, van Benthem PP, Hordijk GJ. The location of parotid gland tumors in relation to the facial nerve on magnetic resonance images and computed tomography scans. J Oral Maxillofac Surg. 2002;60(9):992–4. doi: 10.1053/joms.2002.34402. - DOI - PubMed
    1. Conn IG, Wiesenfeld D, Ferguson MM. The anatomy of the facial nerve in relation to CT/sialography of the parotid gland. Br J Radiol. 1983;56(672):901–5. doi: 10.1259/0007-1285-56-672-901. - DOI - PubMed
