Vectorial capacity and vector control: reconsidering sensitivity to parameters for malaria elimination

Abstract

Background: Major gains have been made in reducing malaria transmission in many parts of the world, principally by scaling-up coverage with long-lasting insecticidal nets and indoor residual spraying. Historically, choice of vector control intervention has been largely guided by a parameter sensitivity analysis of George Macdonald's theory of vectorial capacity that suggested prioritizing methods that kill adult mosquitoes. While this advice has been highly successful for transmission suppression, there is a need to revisit these arguments as policymakers in certain areas consider which combinations of interventions are required to eliminate malaria.

Methods and results: Using analytical solutions to updated equations for vectorial capacity we build on previous work to show that, while adult killing methods can be highly effective under many circumstances, other vector control methods are frequently required to fill effective coverage gaps. These can arise due to pre-existing or developing mosquito physiological and behavioral refractoriness but also due to additive changes in the relative importance of different vector species for transmission. Furthermore, the optimal combination of interventions will depend on the operational constraints and costs associated with reaching high coverage levels with each intervention.

Conclusions: Reaching specific policy goals, such as elimination, in defined contexts requires increasingly non-generic advice from modelling. Our results emphasize the importance of measuring baseline epidemiology, intervention coverage, vector ecology and program operational constraints in predicting expected outcomes with different combinations of interventions.

Keywords: Elimination; Malaria; Modelling; Operational research; Policy; Vector control.

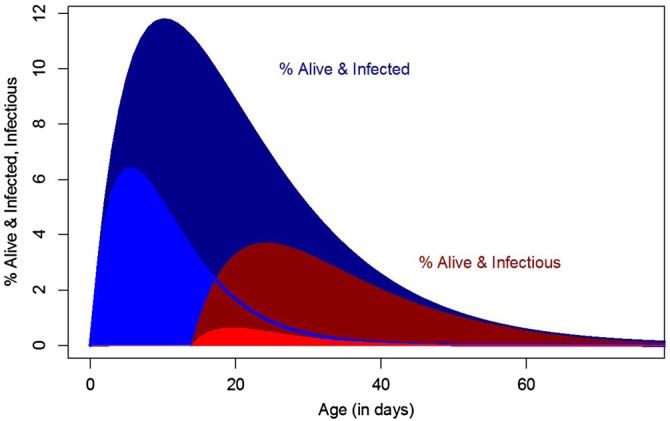

Figure 1.

Simulated output from Macdonald's model of sporozoite rates.^, Curves show the percent of a mosquito cohort that is alive and infected (blue) or infectious (red) for a baseline (darker shades) and with doubled mortality rates (lighter shades). The area under the red curves is proportional to total transmission per adult mosquito. These curves assume approximately 10% of mosquitoes become infectious after biting a human, and f=(3 days)⁻¹; Q=95%; g=1/12 days⁻¹; n=14 days. Changes in the area under the curves are well described by a simple elasticity analysis.

Figure 2.

Changing choices when the technical challenges of achieving coverage levels with different interventions are taken into account. Most models consider how increasing coverage (ϕ) will alter effect size (A), but the effort needed to achieve a given increase in coverage may vary depending on intervention and baseline coverage (B). This may mean that if control program decisions are budgeted by effort (e.g., economic costs or the time commitments of skilled personnel) instead of coverage, the optimal choice of interventions may change (2C). The above considers an initial phase (α) where insecticide treated bednets (ITNs) are scaled up to 40% coverage. In a more intensive second phase, (β), either an additional 60% of the population will be covered (A), or one and a half times the effort expended to reach the 40% coverage with ITNs will be invested (2C). In each of these scenarios the following intervention combinations are available: switch to IRS which has a similar, but slightly less effective, mode of action to ITNs, which, depending on the logistics of deployment, may reach completely different (no overlap in Figure 2) or half overlap (overlap in Figure 2) with those who are already covered by ITNs; switch to larval source management (LSM) which has a different mode of action to ITNs and, depending on mosquito population dynamics, may have independent or synergistic effects in combination with ITNs; continue scaling up ITNs.

Figure 3.

Challenges of meeting policy goals in different epidemiological contexts. Policy goals generally involve reducing transmission down to some target level. In the case of elimination, this requires reaching an effect size sufficient to reduce R_C<1 (i.e., above the dotted line in A–C). Under certain situations this cannot be achieved through scaling-up coverage of a single intervention alone, including: (3A) high baseline transmission (insecticide treated bednets [ITNs] and larval source management [LSM]); (3B) multiple vector species (red and black lines denote a setting where half of vectorial capacity (VC) is due to a species that is insecticide resistant [IR] but still susceptible to LSM in comparison to the blue line where all species are susceptible to all interventions); (3C) mosquito biting plasticity reduces the effectiveness of ITNs (in the red line feeding frequency is unaffected in mosquitoes with opportunistic biting patterns due to the availability of non-human hosts); (3D) the spread of insecticide resistance (plots show the change in effect size as ITN coverage is scaled up to 80% [grey shaded bar] then resistance emerges at half the rate of ITN scale up [fast, red line] or one tenth the rate of scale up [slow, blue line]). Dotted lines show the effect of a second ITN campaign where nets are replaced with a different insecticide.
