. 2016 Jan;23(1):S126-36.
doi: 10.1016/j.sjbs.2015.09.026. Epub 2015 Oct 9.

Mechanical characteristics of antibacterial epoxy resin adhesive wood biocomposites against skin disease

Zi-Xiang Chen  1 , Zhong-Feng Zhang  1 , Wan Syaidatul Aqma  2
Affiliations

Mechanical characteristics of antibacterial epoxy resin adhesive wood biocomposites against skin disease

Zi-Xiang Chen et al. Saudi J Biol Sci. 2016 Jan.

Abstract

Moldy wood can cause some skin disease. However epoxy resin adhesive (EP) can inhibit mold growth. Therefore, antibacterial EP/wood biocomposites were reinforced and analyzed by the nonlinear finite element. Results show that glass fiber cloth and aluminum foil have the obvious reinforced effect under flat pressure, but this was not the case under side pressure. And when the assemble pattern was presented in 5A way, the strengthening effect was better. The nonlinear finite element showed that the aluminum foil and glass fiber cloth have the obvious reinforced effect. The mutual influence and effect of span, thickness and length on the ultimate bearing capacity of specimen were studied. And the simulation results agreed with the test. It provided a theoretical basis on the preparation of antibacterial EP/wood biocomposites against skin disease.

Keywords: Antibacterial effect; EP/wood biocomposites; Reinforced effect; Skin disease.

PubMed Disclaimer

Figures

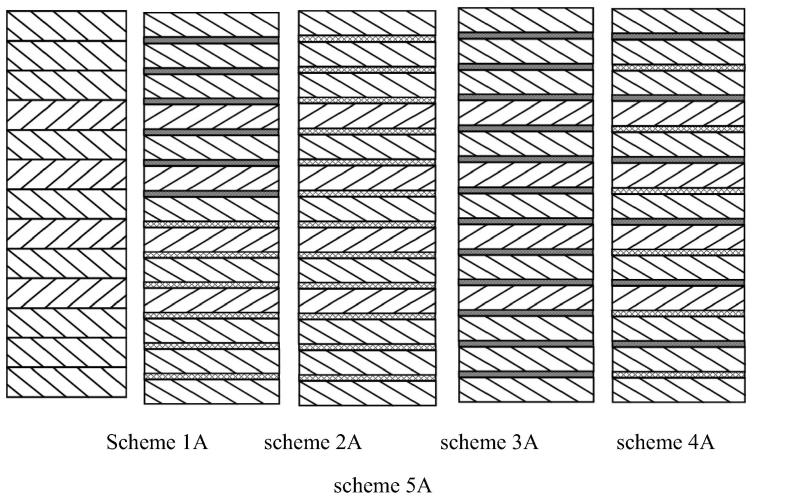

Figure 1
Figure 1
Normal section of the EP/wood biocomposites.

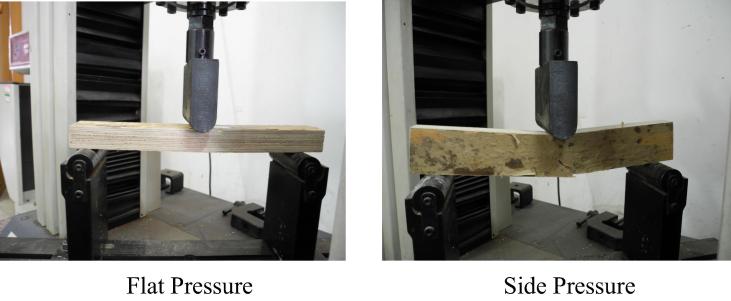

Figure 2
Figure 2
Test load figure of MOR.

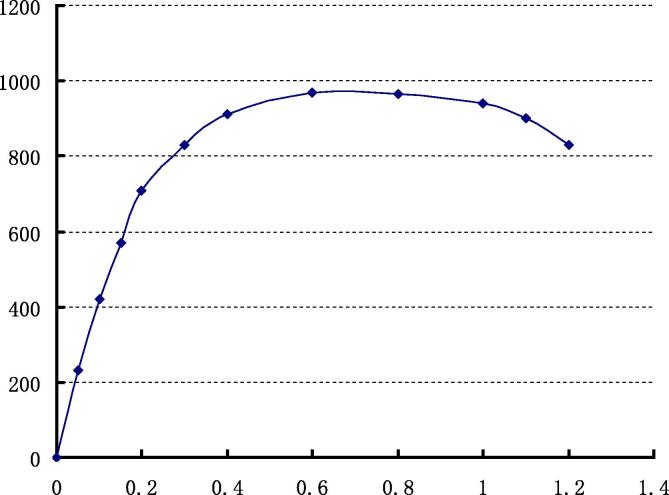

Figure 3
Figure 3
Constitutive relation of GFRP.

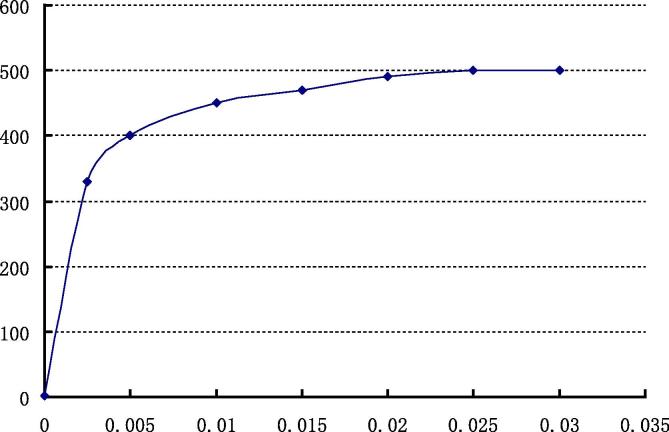

Figure 4
Figure 4
Constitutive relation of aluminum foil reinforcement.

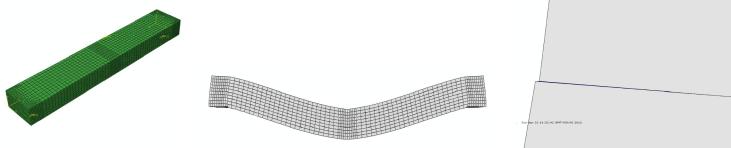

Figure 5
Figure 5
Component stress unit.

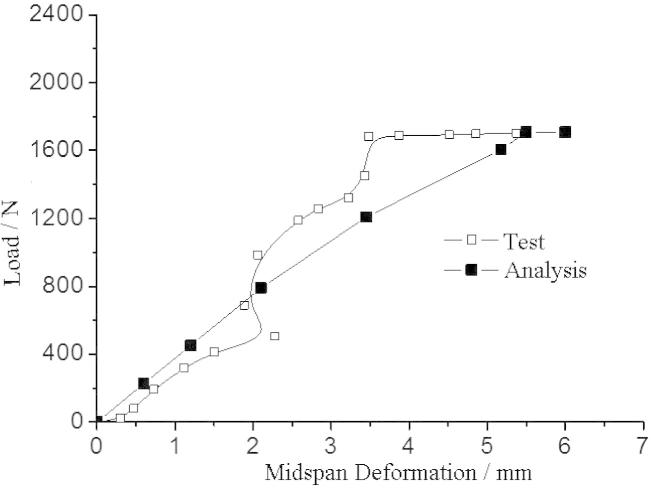

Figure 6
Figure 6
Load and deformation of sample, 2A under flat pressure.

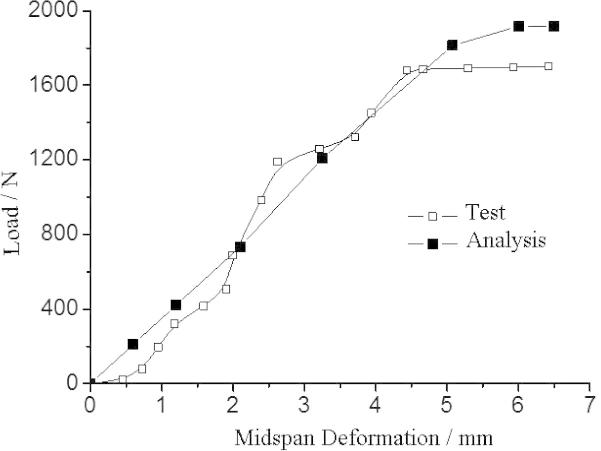

Figure 7
Figure 7
Load and deformation of sample, 2A under side pressure.

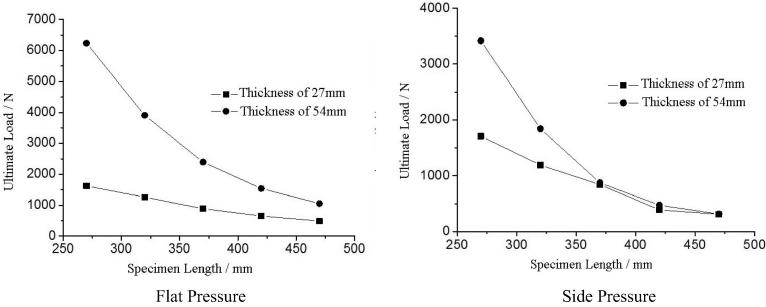

Figure 8
Figure 8
Relations between length, thickness and load of wooden glulam.

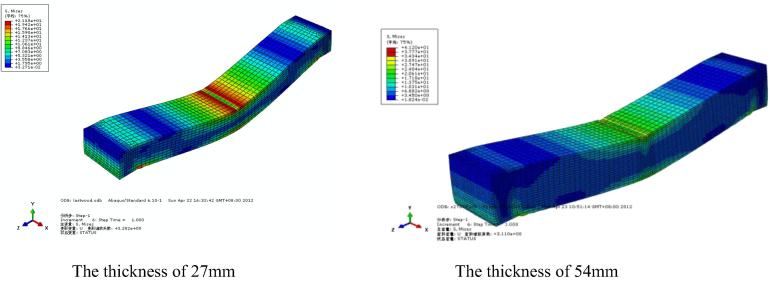

Figure 9
Figure 9
Mise stress diagram of wooden glulam with span 270 mm.

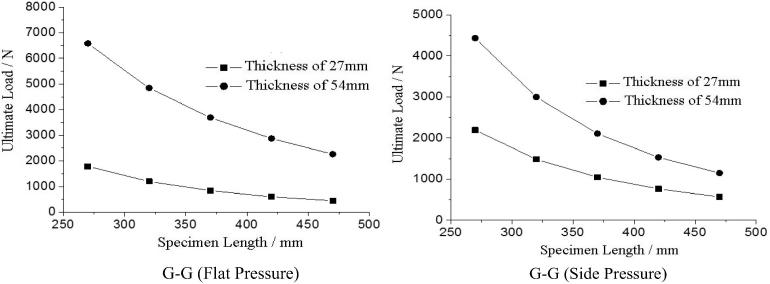

Figure 10
Figure 10
Relations between length, thickness and load of wood–GFRP glulam.

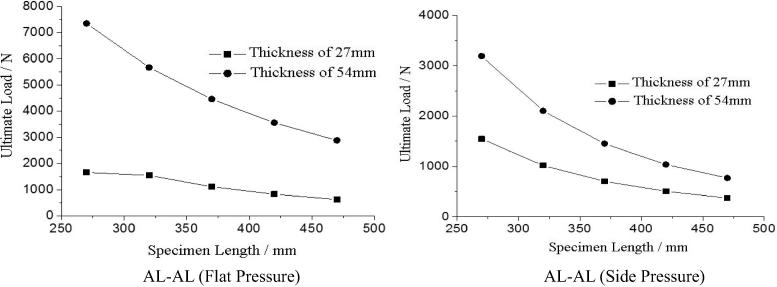

Figure 11
Figure 11
Relations between length, thickness and load of wood–aluminum glulam.

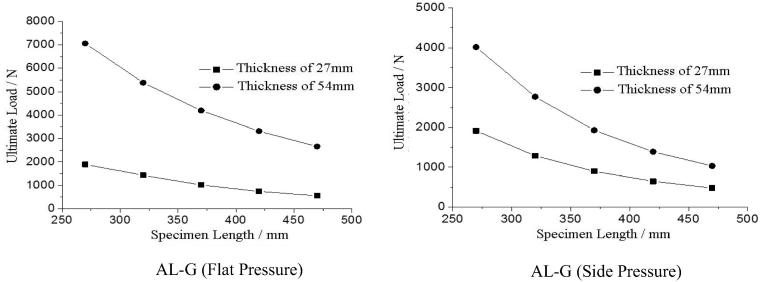

Figure 12
Figure 12
Relations between length, thickness and load of wood–GFRP–aluminum glulam.

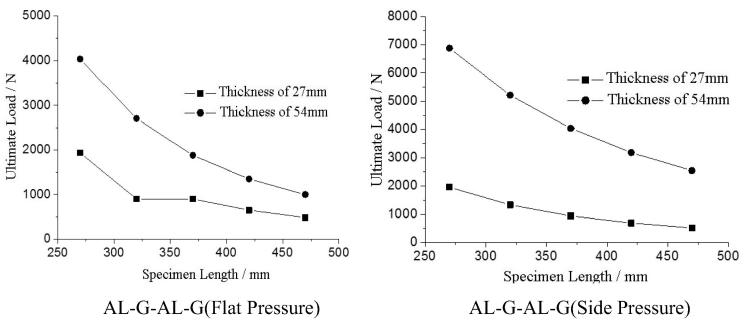

Figure 13
Figure 13
Relations between length, thickness and load of wood–GFRP–aluminum glulam.
See this image and copyright information in PMC
