. 2016 Mar 15:13:26.
doi: 10.1186/s12984-016-0130-0.

Flexible and static wrist units in upper limb prosthesis users: functionality scores, user satisfaction and compensatory movements

M Deijs  1 , R M Bongers  2 , N D M Ringeling-van Leusen  3 , C K van der Sluis  4
Affiliations

Flexible and static wrist units in upper limb prosthesis users: functionality scores, user satisfaction and compensatory movements

M Deijs et al. J Neuroeng Rehabil. .

Abstract

Background: The current study examines the relevance of prosthetic wrist movement to facilitate activities of daily living or to prevent overuse complaints. Prosthesis hands with wrist flexion/extension capabilities are commercially available, but research on the users' experiences with flexible wrists is limited.

Methods: In this study, eight transradial amputees using a myoelectric prosthesis tested two prosthesis wrists with flexion/extension capabilities, the Flex-wrist (Otto Bock) and Multi-flex wrist (Motion Control), in their flexible and static conditions. Differences between the wrists were assessed on the levels of functionality, user satisfaction and compensatory movements after two weeks use.

Results: No significant differences between flexible and static wrist conditions were found on activity performance tests and standardized questionnaires on satisfaction. Inter-individual variation was remarkably large. Participants' satisfaction tended to be in favour of flexible wrists. All participants but one indicated that they would choose a prosthesis hand with wrist flexion/extension capabilities if allowed a new prosthesis. Shoulder joint angles, reflecting compensatory movements, showed no clear differences between wrist conditions.

Conclusions: Overall, positive effects of flexible wrists are hard to objectify. Users seem to be more satisfied with flexible wrists. A person's needs, work and prosthesis skills should be taken into account when prescribing a prosthesis wrist.

Trial registration: Nederlands Trial Register NTR3984 .

Keywords: Compensatory movements; Functionality; Prosthetic limbs; User satisfaction; Wrist.

PubMed Disclaimer

Figures

Fig. 1
Fig. 1

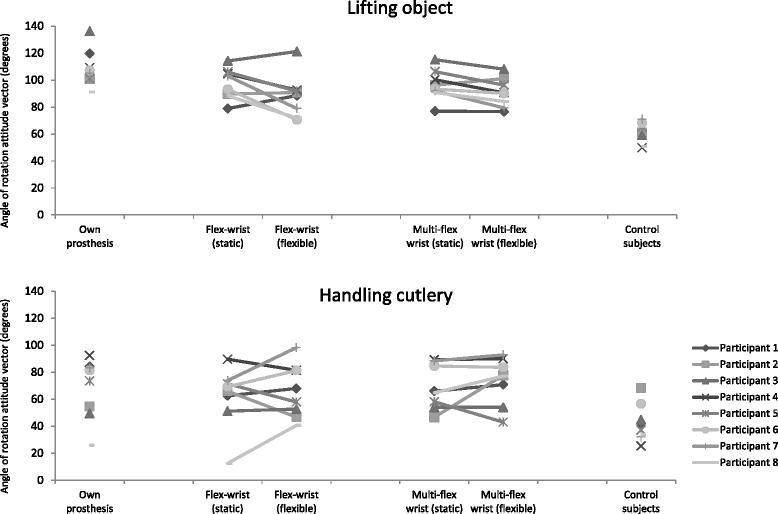

Mean maximum angle of rotation of the shoulder (degrees) for individual participants in different wrist conditions during ADL tasks with small (‘lifting object’, top) and large (‘handling cutlery’, bottom) inter-individual variation
See this image and copyright information in PMC

References

    1. Peerdeman B, Boere D, Witteveen H, in 't Veld RH, Hermens H, Stramigioli S, et al. Myoelectric forearm prostheses: state of the art from a user-centered perspective. J Rehabil Res Dev. 2011;48(6):719–37. doi: 10.1682/JRRD.2010.08.0161. - DOI - PubMed
    1. Biddiss E, Beaton D, Chau T. Consumer design priorities for upper limb prosthetics. Disabil Rehabil. 2007;2(6):346–57. - PubMed
    1. Atkins DJH, Heard DCY, Donovan WH. Epidemiologic overview of individuals with upper-limb loss and their reported research priorities. J Prosthet. Orthot. 1996;8(1):2–11. doi: 10.1097/00008526-199600810-00003. - DOI
    1. Kyberd PJ. The influence of passive wrist joints on the functionality of prosthetic hands. Prosthet Orthot Int. 2012;36(1):33–8. doi: 10.1177/0309364611426905. - DOI - PubMed
    1. Bertels T, Schmalz T, Ludwigs E. Objectifying the functional advantages of prosthetic wrist flexion. J Prosthet. Orthot. 2009;21(2):74–8. doi: 10.1097/JPO.0b013e3181a10f46. - DOI
