Skip to main page content
U.S. flag

An official website of the United States government

Dot gov

The .gov means it’s official.
Federal government websites often end in .gov or .mil. Before sharing sensitive information, make sure you’re on a federal government site.

Https

The site is secure.
The https:// ensures that you are connecting to the official website and that any information you provide is encrypted and transmitted securely.

Access keys NCBI Homepage MyNCBI Homepage Main Content Main Navigation
. 2016 Mar-Apr;13(2):124-31.
doi: 10.4103/1735-3327.178197.

In-vitro comparison of the effect of different bonding strategies on the micro-shear bond strength of a silorane-based composite resin to dentin

Pouran Samimi  1 , Vahid Alizadeh  2 , Kamyar Fathpour  1 , Hamid Mazaheri  1 , Vajihosadat Mortazavi  3
Affiliations

In-vitro comparison of the effect of different bonding strategies on the micro-shear bond strength of a silorane-based composite resin to dentin

Pouran Samimi et al. Dent Res J (Isfahan). 2016 Mar-Apr.

Abstract

Background: The current study evaluated the micro-shear bond strengths of a new low-shrinkage composite resin to dentin.

Materials and methods: In this in-vitro study, 70 extracted premolars were assigned to one of seven groups (n = 10): Group 1: OptiBond Solo Plus (Opt; Kerr); Group 2: SE Bond (SE; Kuraray); Group 3: Silorane System Adhesive (SSA; 3M ESPE); Group 4: OptiBond Solo Plus + LS Bond (Opt LS); Group 5: SE Bond + LS Bond (SE LS); Group 6: OptiBond Solo Plus (Opt Po); and Group 7: SE Bond (SE Po). Occlusal dentin was exposed and restored with Filtek LS (3M ESPE) in groups 1 to 5 and Point 4 (Kerr) in groups 6 and 7. After thermocycling (1000 cycles at 5/55΀C), micro-shear bond test was carried out to measure the bond strengths. The results were submitted to analysis of variance and post hoc Tukeytests (P < 0.05).

Results: Two-way ANOVA showed no significant differences between the two types of composite resin (P = 0.187), between bonding agents (P = 0.06) and between composite resin and bonding agents (P = 0.894). Because P value of bonding agents was near the significance level, one-way ANOVA was used separately between the two composite groups. This analysis showed significant differences between silorane composite resin groups (P = 0.045) and Tukey test showed a significant difference between Groups 4 and 5 (P = 0.03).

Conclusion: The application of total-etch and self-etch methacrylate-based adhesives with and without use of a hydrophobic resin coating resulted in acceptable bond strengths.

Keywords: Low; bond; bonding agents; composite resins; contraction; micro; shear; strength.

PubMed Disclaimer

Figures

Figure 1
Figure 1

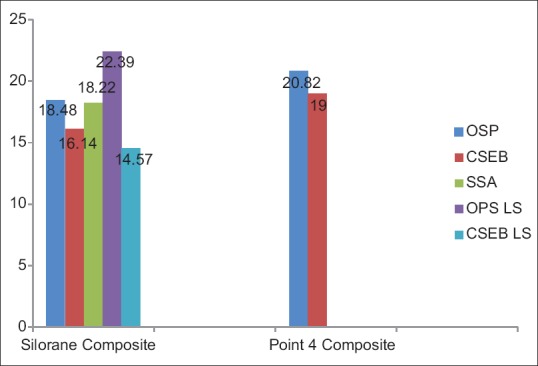

The means and standard deviations of shear bond strengths in different groups. OSP: OptiBond Solo Plus; CSEB: Clearfil SE Bond; SSA: Silorane System Adhesive; LS: LS Bond.
Figure 2
Figure 2
The failure mode frequencies for the micro-shear bond test. OSP: OptiBond Solo Plus; CSEB: Clearfil SE Bond; SSA: Silorane System Adhesive; LS: LS Bond.
Figure 3
Figure 3
Standard error mean image of interface of (OptiBond Solo Plus + LS Bond) and dentin (×1250). CR: Composite resin; T: Resin tag; D: Dentin.
Figure 4
Figure 4
Scanning electron microscopy image of the interface of (Clearfil SE-Bond + LS Bond) and dentin (×1250). CR: Composite resin; T: Resin tag; D: Dentin.
Figure 5
Figure 5
Scanning electron microscopy image of the interface of Silorane System Adhesive and dentin (×1250). CR: Composite resin; T: Resin tag; D: Dentin; H: Hybrid layer.
See this image and copyright information in PMC

References

    1. Braga RR, Ballester RY, Ferracane JL. Factors involved in the development of polymerization shrinkage stress in resin-composites: A systematic review. Dent Mater. 2005;21:962–70. - PubMed
    1. Schneider LF, Cavalcante LM, Silikas N. Shrinkage Stresses Generated during Resin-Composite Applications: A Review. J Dent Biomech 2010. 2010:pii: 131630. - PMC - PubMed
    1. Ilie N, Hickel R. Silorane-based dental composite: Behavior and abilities. Dent Mater J. 2006;25:445–54. - PubMed
    1. Weinmann W, Thalacker C, Guggenberger R. Siloranes in dental composites. Dent Mater. 2005;21:68–74. - PubMed
    1. Moszner N, Völkel T, Fischer UK, Rheinberger V. Polymerization of cyclic monomers, 8. Synthesis and radical polymerization of hybrid 2-vinylcyclopropanes. Macromol Rapid Commun. 1999;20:33–5.

LinkOut - more resources
