In silico modelling of mass transfer & absorption in the human gut

Abstract

An in silico model has been developed to investigate the digestion and absorption of starch and glucose in the small intestine. The main question we are aiming to address is the relative effect of gastric empting time and luminal viscosity on the rate of glucose absorption. The results indicate that all factors have a significant effect on the amount of glucose absorbed. For low luminal viscosities (e.g. lower than 0.1 Pas) the rate of absorption is controlled by the gastric emptying time. For viscosities higher than 0.1 Pas a 10 fold increase in viscosity can result in a 4 fold decrease of glucose absorbed. Our model, with the simplifications used to develop it, indicate that for high viscosity luminal phases, gastric emptying rate is not the controlling mechanism for nutrient availability. Developing a mechanistic model could help elucidate the rate limiting steps that control the digestion process.

Keywords: Gastric emptying; Glucose absorption; Human gut; In silico modelling; Mass transfer.

Fig. 1

plot of half-time of emptying against calories for meals in Table 1, different colours represent different methods of measurements, showing that increasing the calorific content of a meal leads to a longer half time of emptying.

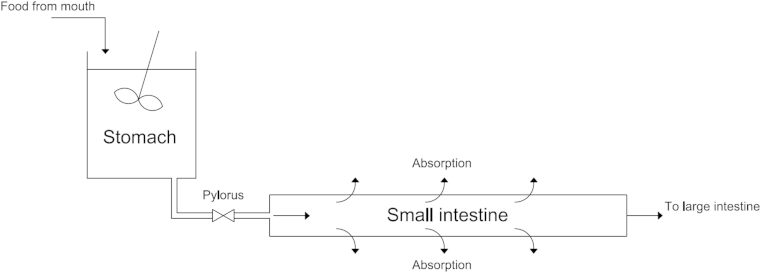

Fig. 2

diagram showing layout of CSTR stomach and PFR small intestine.

Fig. 3

(a) the absorption curves for glucose solutions at different viscosities; (b) graph showing the total absorbed glucose after a 3 h period for solutions of different viscosities (log scale); (c) the fraction of glucose absorbed for the non-dimensionilised model against the characteristic mass transfer coefficient(log scale); (d) the rate at which calories are absorbed at different viscosities.

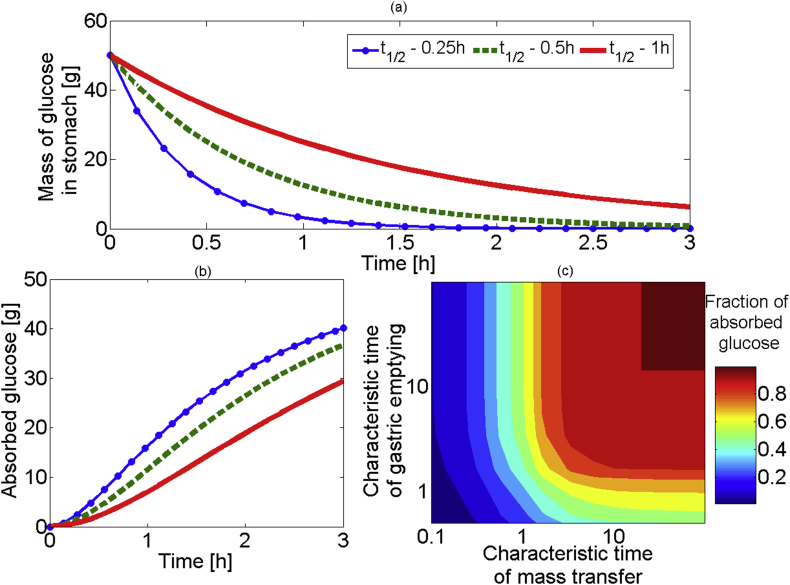

Fig. 4

(a) mass of glucose in stomach over time with different half-time's of emptying and viscosity of 1 mPa s, (b) the absorbed glucose against time for 3 different gastric emptying half-time's, (c) contour plot of the characteristic mass transfer, against the characteristic emptying time on log–log scale, colour representing the fraction of glucose absorbed.

Fig. 5

contour plot from Fig. 4(c) with plots from literature () (Marciani et al., 2000), (■) (Marciani et al., 2001), (●) from the model.

Fig. 6

(a) absorption of glucose with time for systems with different starch hydrolysis rates (gastric emptying half-time 20min, viscosity = 1 mPa s, V_max = 4, 9 and 16 mmol/min), (b) contour plot showing the effect of gastric emptying rate, mass transfer rate and reaction rate for hydrolysis on absorption of glucose.
