. 2016 May 6:4:42.
doi: 10.3389/fped.2016.00042. eCollection 2016.

Sonographic Renal Parenchymal Measurements for the Evaluation and Management of Ureteropelvic Junction Obstruction in Children

Jeremy C Kelley  1 , Jeffrey T White  2 , Jessica T Goetz  2 , Elena Romero  3 , Jeffrey A Leslie  2 , Juan C Prieto  4
Affiliations

Sonographic Renal Parenchymal Measurements for the Evaluation and Management of Ureteropelvic Junction Obstruction in Children

Jeremy C Kelley et al. Front Pediatr. .

Abstract

Purpose: To correlate sonographic renal parenchymal measurements among patients with ureteropelvic junction obstruction (UPJO) labeled society of fetal urology (SFU) hydronephrosis grades 1-4 and to examine whether sonographic renal parenchymal measurements could be used to differentiate conservative vs. surgical management.

Materials and methods: Retrospective chart review and sonographic renal parenchymal measurements (renal length, medullary pyramid thickness, and renal parenchymal thickness) were performed in patients with SFU grades 1-4 hydronephrosis secondary to UPJO managed between 2009 and 2014. Exclusion criteria included other concomitant genitourinary pathology or incomplete follow-up. Anterior-posterior renal pelvic diameter (APRPD) and radionuclide renography were also evaluated when available.

Results: One hundred four patients with UPJO underwent 244 renal and bladder ultrasound (1,464 sonographic renal parenchymal measurements in 488 kidneys). Medullary pyramid thickness and renal parenchymal thickness progressively decreased from SFU grades 1-4 (p < 0.05). A similar trend was appreciated when comparing SFU grades 1 and 2 vs. 3 and 4, as well as SFU grades 3 vs. 4 (p < 0.05). SFU grade 3 and 4 patients who underwent pyeloplasty had longer renal length in comparison to those who were managed conservatively (p < 0.02).

Conclusion: This is the first study that evaluates these objective, quantifiable sonographic renal parenchymal measurements in children with unilateral UPJO. These sonographic renal parenchymal measurements correlate closely with worsening of hydronephrosis graded by the SFU and APRPD classification systems. Prospective studies are needed to elucidate the role of sonographic renal parenchymal measurements in the management of children with UPJO.

Keywords: UPJ obstruction; hydronephrosis; pyeloplasty; renal ultrasound measurements; urinary tract dilation.

PubMed Disclaimer

Figures

Figure 1
Figure 1
Illustration of each sonographic renal parenchymal measurement. MPT, medullary pyramid thickness; RPT, renal parenchymal thickness; RL, renal length.
Figure 2
Figure 2

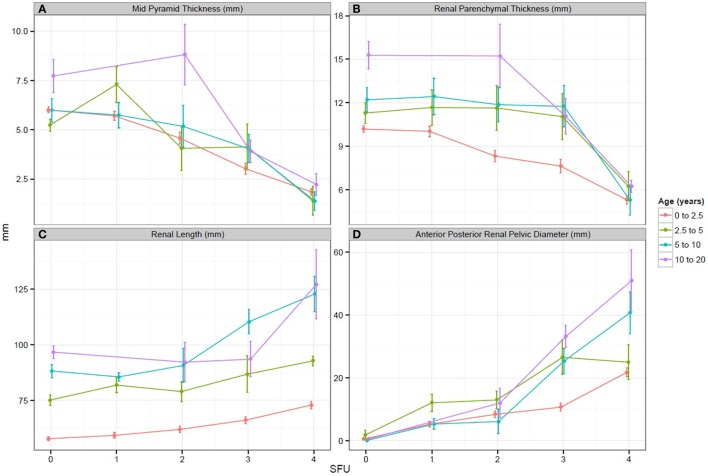

(A–D) Graphs representing the change in each sonographic renal parenchymal measurements with worsening hydronephrosis. SFU, society of fetal urology hydronephrosis grade.
See this image and copyright information in PMC

Similar articles

See all similar articles

Cited by

See all "Cited by" articles

References

    1. Nguyen HT, Herndon CD, Cooper C, Gatti J, Kirsch A, Kokorowski P, et al. The Society for Fetal Urology consensus statement on the evaluation and management of antenatal hydronephrosis. J Pediatr Urol (2010) 6:212.10.1016/j.jpurol.2010.02.205 - DOI - PubMed
    1. Fernbach SK, Maizels M, Conway JJ. Ultrasound grading of hydronephrosis: introduction to the system used by the Society for Fetal Urology. Pediatr Radiol (1993) 23:478.10.1007/BF02012459 - DOI - PubMed
    1. Onen A. An alternative grading system to refine the criteria for severity of hydronephrosis and optimal treatment guidelines in neonates with primary UPJ-type hydronephrosis. J Pediatr Urol (2007) 3:200.10.1016/j.jpurol.2006.08.002 - DOI - PubMed
    1. Onen A, Jayanthi VR, Koff SA. Long-term followup of prenatally detected severe bilateral newborn hydronephrosis initially managed nonoperatively. J Urol (2002) 168:1118.10.1097/00005392-200209000-00067 - DOI - PubMed
    1. Onen A. Treatment and outcome of prenatally detected newborn hydronephrosis. J Pediatr Urol (2007) 3:469.10.1016/j.jpurol.2007.05.002 - DOI - PubMed
