Superconcentrated electrolytes for a high-voltage lithium-ion battery

Abstract

Finding a viable electrolyte for next-generation 5 V-class lithium-ion batteries is of primary importance. A long-standing obstacle has been metal-ion dissolution at high voltages. The LiPF6 salt in conventional electrolytes is chemically unstable, which accelerates transition metal dissolution of the electrode material, yet beneficially suppresses oxidative dissolution of the aluminium current collector; replacing LiPF6 with more stable lithium salts may diminish transition metal dissolution but unfortunately encounters severe aluminium oxidation. Here we report an electrolyte design that can solve this dilemma. By mixing a stable lithium salt LiN(SO2F)2 with dimethyl carbonate solvent at extremely high concentrations, we obtain an unusual liquid showing a three-dimensional network of anions and solvent molecules that coordinate strongly to Li(+) ions. This simple formulation of superconcentrated LiN(SO2F)2/dimethyl carbonate electrolyte inhibits the dissolution of both aluminium and transition metal at around 5 V, and realizes a high-voltage LiNi0.5Mn1.5O4/graphite battery that exhibits excellent cycling durability, high rate capability and enhanced safety.

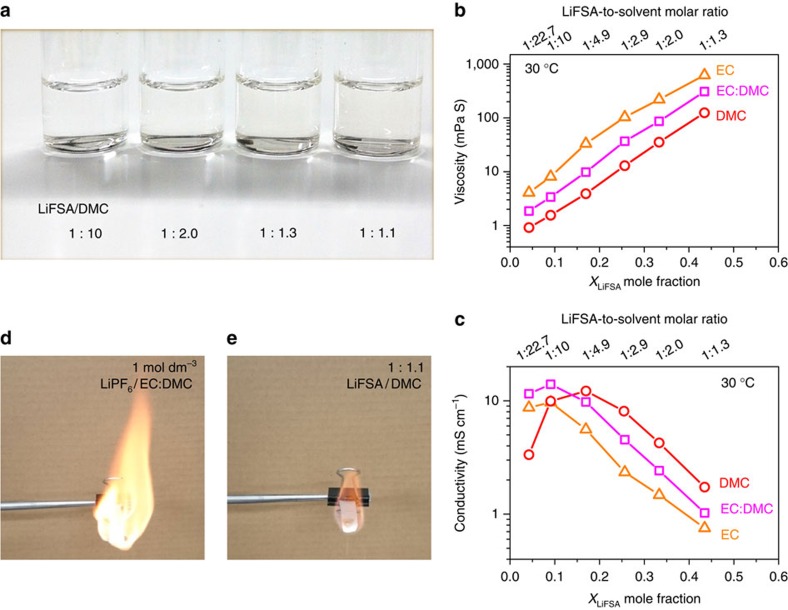

Figure 1. Physicochemical properties dependent on solution concentration.

(a) Images of various salt-to-solvent molar ratios of LiFSA/DMC solutions. Viscosity (b) and ionic conductivity (c) for solutions of LiFSA in DMC, EC and EC:DMC (1:1 by mol.) at 30 °C. The X_LiFSA mole fraction is the molar amount of LiFSA salt divided by the total molar amount of the salt and solvents. The LiFSA-to-solvent molar ratios of the solutions are shown on the upper axis. (d) Flame tests of a commercial dilute electrolyte of 1.0 mol dm⁻³ LiPF₆/EC:DMC (1:1 by vol.) and (e) the lab-made superconcentrated electrolyte of 1:1.1 LiFSA/DMC.

Figure 2. Performance of 5 V-class LiNi_0.5Mn_1.5O₄ electrode in a half-cell.

Charge–discharge voltage curves of LiNi_0.5Mn_1.5O₄|lithium metal half-cells using (a) dilute 1:10.8, (b) moderately concentrated 1:1.9 and (c) superconcentrated 1:1.1 LiFSA/DMC electrolytes at a C/5 rate. Some/all curves of 1st, 2nd, 10th, 50th and 100th cycles are shown. (d) Discharge (Li⁺ intercalation) capacity retention of the half-cells using different concentrations of LiFSA/DMC electrolytes at a C/5 rate. (e) Rate capacity and subsequent cycling retention of the half-cells using 1:1.3 LiFSA-based electrolytes with different carbonate solvents. Charge–discharge tests were conducted at 25 °C with a cutoff voltage of 3.5–4.9 V and a maximum-time restriction of 10 h except for that using the 1:1.1 LiFSA/DMC electrolyte whose cutoff voltage was 3.5–5.2 V. The 1C-rate corresponds to 147 mA g⁻¹ on the weight basis of the LiNi_0.5Mn_1.5O₄ electrode.

Figure 3. Oxidation stability of an aluminium electrode.

LSV of an aluminium electrode in various concentrations of LiFSA/DMC electrolytes in a three-electrode cell. The scan rate was 1.0 mV s⁻¹. The insets are scanning electron microscopy images of the Al surface polarized in the dilute 1:10.8 (left of panel) and superconcentrated 1:1.1 (right of panel) electrolytes. Many corroding pits cover the surface of the Al electrode polarized in the dilute electrolyte, showing a severe anodic Al dissolution. In contrast, no corroding pits appear on the surface of the Al electrode polarized in the superconcentrated electrolyte, indicating a good inhibition of anodic Al dissolution. The white scale bar represents 20 μm.

Figure 4. Li salt−solvent coordination structure dependent on salt concentration.

(a) The several main species in the LiFSA/DMC solutions. (b) Raman spectra of LiFSA/DMC solutions with various salt-to-solvent molar ratios in the range of 890–900 cm⁻¹ (O-CH₃ stretching mode of the DMC solvent) and 700–780 cm⁻¹ (S-N stretching mode of the FSA⁻ anion). Snapshots of typical equilibrium trajectories obtained by DFT-MD simulations: (c) dilute solution (1 LiFSA/25 DMC, <1 mol dm⁻³), (d) moderately concentrated solution (12 LiFSA/24 DMC, ca. 4 mol dm⁻³), and (e) superconcentrated solution (10 LiFSA/11 DMC, ca. 5.5 mol dm⁻³). The coordination of Li⁺−DMC and Li⁺−FSA⁻ is supposed to build up when the involved atoms locate within 2.5 Å from Li⁺. The coordination numbers of solvents and anions to Li⁺ are shown in Supplementary Fig. 8. Li cations are marked in purple. Free and coordinated DMC molecules are marked in light blue and grey, respectively. Free, CIP and AGG states of FSA⁻ anions are marked in red, orange and dark blue, respectively. Hydrogen atoms are not shown.

Figure 5. Performance of a high-voltage LiNi_0.5Mn_1.5O₄|natural graphite battery.

Charge–discharge voltage curves of LiNi_0.5Mn_1.5O₄|graphite full cells using (a) a commercial 1.0 mol dm⁻³ LiPF₆/EC:DMC (1:1 by vol.) electrolyte and (b) lab-made superconcentrated 1:1.1 LiFSA/DMC electrolyte at a C/5 rate and 40 °C. The curves of 2nd, 10th, 50th and 100th cycle are shown. (c) Discharge capacity retention of the full cells at a C/5 rate. The inset shows EDS spectra on the graphite electrode surface (200 × 200 μm² area) after 8-day cycling tests, which is equivalent to the operating time of 100 and 20 cycles for the battery using the commercial and superconcentrated electrolytes, respectively. (d) Discharge capacity of the full cell at various C-rates and 25 °C. All charge-discharge cycling tests were conducted with a cutoff voltage of 3.5–4.8 V. 1C-rate corresponds to 147 mA g⁻¹ on the weight basis of the LiNi_0.5Mn_1.5O₄ electrode.
