. 2016 Oct;116(10):1921-9.
doi: 10.1007/s00421-016-3444-5. Epub 2016 Jul 29.

Does knee joint cooling change in vivo patellar tendon mechanical properties?

Luis M Alegre  1 , Michael Hasler  2 , Sebastian Wenger  2 , Werner Nachbauer  3 , Robert Csapo  4
Affiliations

Does knee joint cooling change in vivo patellar tendon mechanical properties?

Luis M Alegre et al. Eur J Appl Physiol. 2016 Oct.

Abstract

Purpose: This study aimed to assess the influence of knee joint cooling on the in vivo mechanical properties of the patellar tendon.

Methods: Twenty young, healthy women volunteered for the study. B-mode ultrasonography was used to record patellar tendon elongation during isometric ramp contraction of the knee extensors (5-7 s, 90° knee angle) and calculate tendon stiffness. Skin temperature was measured by infrared thermometry. Data were acquired before and after 30 min of local icing of the knee joint and compared by paired samples t-tests.

Results: After cold exposure, skin temperature as measured over the patellar tendon dropped by 16.8 ± 2.0 °C. Tendon stiffness increased from 2189 ± 551 to 2705 ± 902 N mm(-1) (+25 %, p = 0.007). Tendon strain decreased by 9 % (p = 0.004). A small, albeit significant reduction in maximum tendon force was observed (-3.3 %, p = 0.03).

Conclusions: Knee cooling is associated with a significant increase in patellar tendon stiffness. The observed tendon stiffening may influence the operating range of sarcomeres, possibly limiting the maximal force generation capacity of knee extensor muscles. In addition, a stiffer tendon might benefit rate of force development, thus countering the loss in explosiveness typically described for cold muscles.

Keywords: Cryotherapy; Material properties; Tendon deformation; Ultrasonography.

PubMed Disclaimer

Conflict of interest statement

The authors declare that there is no conflict of interest.

Figures

Fig. 1
Fig. 1

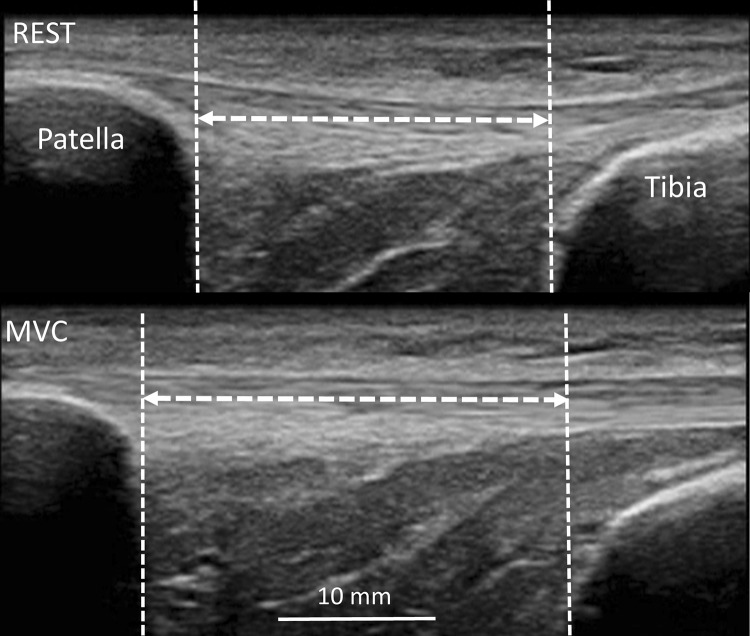

Measurement of patellar tendon elongation on the ultrasound images recorded during one maximal voluntary isometric contraction (MVC)
Fig. 2
Fig. 2

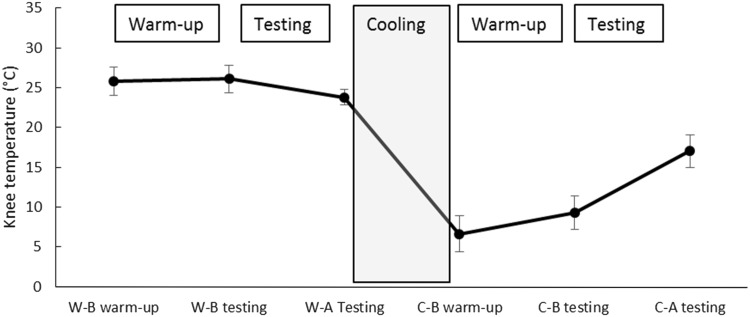

Changes in skin temperature over the patellar tendon throughout the experiment. W-B warm before, W-A warm after, C-B cold before, C-A cold after
Fig. 3
Fig. 3
Force-elongation curves as measured under warm and cold conditions. **p < 0.01; *p < 0.05
Fig. 4
Fig. 4

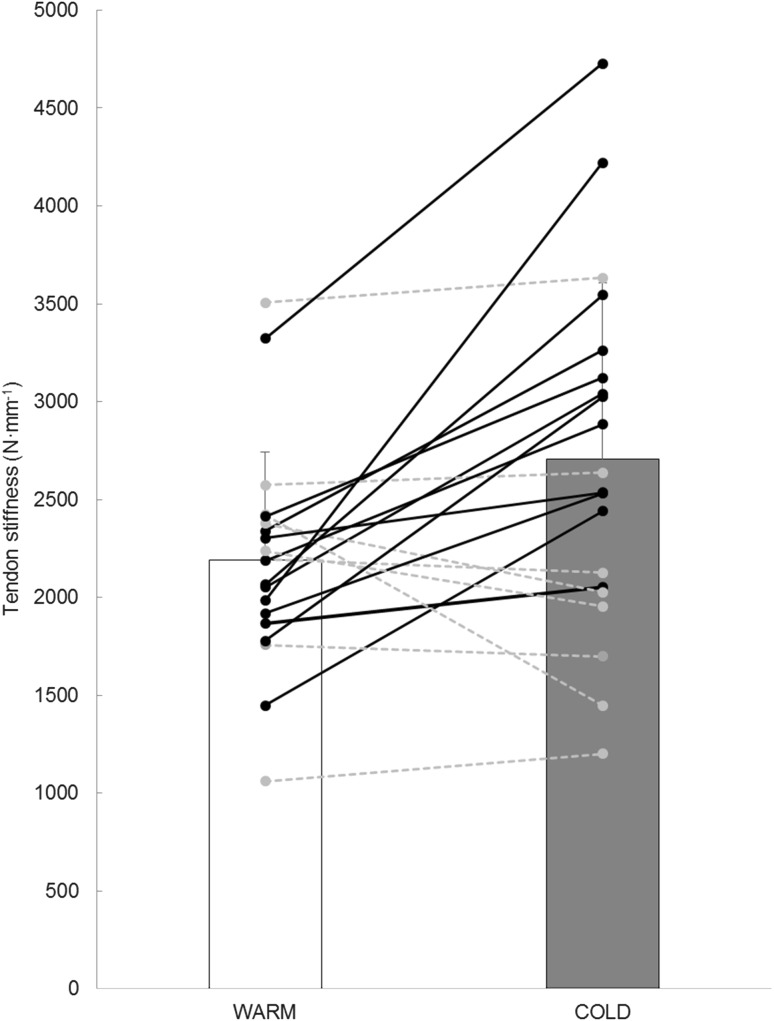

Individual values of patellar tendon stiffness as measured before and after knee cooling. Subjects showing increases greater than the typical measurement error (163 N mm−1) are shown in black, solid lines, while others are shown in grey, dashed lines. Bars show means ± SD
See this image and copyright information in PMC

References

    1. Albracht K, Arampatzis A. Exercise-induced changes in triceps surae tendon stiffness and muscle strength affect running economy in humans. Eur J Appl Physiol. 2013;113(6):1605–1615. doi: 10.1007/s00421-012-2585-4. - DOI - PubMed
    1. Alexander RM. Tendon elasticity and muscle function. Comp Biochem Physiol A Mol Integr Physiol. 2002;133(4):1001–1011. doi: 10.1016/S1095-6433(02)00143-5. - DOI - PubMed
    1. Ando R, Nosaka K, Inami T, Tomita A, Watanabe K, Blazevich AJ, Akima H. Difference in fascicle behaviors between superficial and deep quadriceps muscles during isometric contractions. Muscle Nerve. 2016;53(5):797–802. doi: 10.1002/mus.24905. - DOI - PubMed
    1. Arampatzis A, Karamanidis K, De Monte G, Stafilidis S, Morey-Klapsing G, Bruggemann GP. Differences between measured and resultant joint moments during voluntary and artificially elicited isometric knee extension contractions. Clin Biomech. 2004;19(3):277–283. doi: 10.1016/j.clinbiomech.2003.11.011. - DOI - PubMed
    1. Biewener AA, Roberts TJ. Muscle and tendon contributions to force, work, and elastic energy savings: a comparative perspective. Exerc Sport Sci Rev. 2000;28(3):99–107. - PubMed
