Review
. 2016 Aug 20;14(1):33.
doi: 10.1186/s12947-016-0076-1.

The efficacy of sonographic measurement of inferior vena cava diameter as an estimate of central venous pressure

William Ciozda  1 , Ilan Kedan  2 , Devin W Kehl  3 , Raymond Zimmer  2 , Raj Khandwalla  2 , Asher Kimchi  4
Affiliations
Review

The efficacy of sonographic measurement of inferior vena cava diameter as an estimate of central venous pressure

William Ciozda et al. Cardiovasc Ultrasound. .

Abstract

Background: Central venous pressure (CVP) and right atrial pressure (RAP) are important parameters in the complete hemodynamic assessment of a patient. Sonographic measurement of the inferior vena cava (IVC) diameter is a non-invasive method of estimating these parameters, but there are limited data summarizing its diagnostic accuracy across multiple studies. We performed a comprehensive review of the existing literature to examine the diagnostic accuracy and clinical utility of sonographic measurement of IVC diameter as a method for assessing CVP and RAP.

Methods: We performed a systematic search using PubMed of clinical studies comparing sonographic evaluation of IVC diameter and collapsibility against gold standard measurements of CVP and RAP. We included clinical studies that were performed in adults, used current imaging techniques, and were published in English.

Results: Twenty one clinical studies were identified that compared sonographic assessment of IVC diameter with CVP and RAP and met all inclusion criteria. Despite substantial heterogeneity in measurement techniques and patient populations, most studies demonstrated moderate strength correlations between measurements of IVC diameter and collapsibility and CVP or RAP, but more favorable diagnostic accuracy using pre-specified cut points. Findings were inconsistent among mechanically ventilated patients, except in the absence of positive end-expiratory pressure.

Conclusion: Sonographic measurement of IVC diameter and collapsibility is a valid method of estimating CVP and RAP. Given the ease, safety, and availability of this non-invasive technique, broader adoption and application of this method in clinical settings is warranted.

Keywords: Central venous pressure; Inferior vena cava; Right atrial pressure; Ultrasound.

PubMed Disclaimer

Figures

Fig. 1
Fig. 1

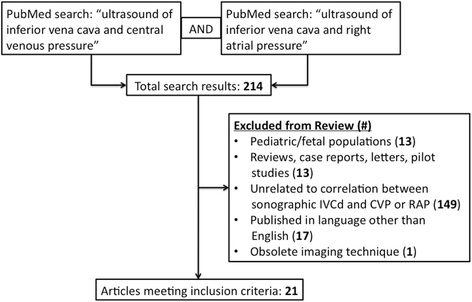

Study selection flowchart showing the structure of the PubMed search and exclusion criteria
See this image and copyright information in PMC

References

    1. Beigel R, Cercek B, Luo H, Siegel RJ. Noninvasive evaluation of right atrial pressure. J Am Soc Echocardiogr. 2013;26:1033–1042. doi: 10.1016/j.echo.2013.06.004. - DOI - PubMed
    1. Kido DK, King PD, Manzione JV, Simon JH. The role of catheters and guidewires in the production of angiographic thromboembolic complications. Investig Radiol. 1988;23(Suppl 2):S359–S365. doi: 10.1097/00004424-198811002-00009. - DOI - PubMed
    1. Kircher BJ, Himelman RB, Schiller NB. Noninvasive estimation of right atrial pressure from the inspiratory collapse of the inferior vena cava. Am J Cardiol. 1990;66:493–496. doi: 10.1016/0002-9149(90)90711-9. - DOI - PubMed
    1. Bodson L, Vieillard-Baron A. Respiratory variation in inferior vena cava diameter: surrogate of central venous pressure or parameter of fluid responsiveness? Let the physiology reply. Crit Care. 2012;16:181. doi: 10.1186/cc11824. - DOI - PMC - PubMed
    1. Natori H, Tamaki S, Kira S. Ultrasonographic evaluation of ventilatory effect on inferior vena caval configuration. Am Rev Respir Dis. 1979;120:421–427. - PubMed
