. 2016 Sep 6;16(9):1428.
doi: 10.3390/s16091428.

Noise Suppression on the Tunable Laser for Precise Cavity Length Displacement Measurement

Radek Šmíd  1 , Martin Čížek  2 , Břetislav Mikel  3 , Jan Hrabina  4 , Josef Lazar  5 , Ondřej Číp  6
Affiliations

Noise Suppression on the Tunable Laser for Precise Cavity Length Displacement Measurement

Radek Šmíd et al. Sensors (Basel). .

Abstract

The absolute distance between the mirrors of a Fabry-Perot cavity with a spacer from an ultra low expansion material was measured by an ultra wide tunable laser diode. The DFB laser diode working at 1542 nm with 1.5 MHz linewidth and 2 nm tuning range has been suppressed with an unbalanced heterodyne fiber interferometer. The frequency noise of laser has been suppressed by 40 dB across the Fourier frequency range 30-300 Hz and by 20 dB up to 4 kHz and the linewidth of the laser below 300 kHz. The relative resolution of the measurement was 10 - 9 that corresponds to 0.3 nm (sub-nm) for 0.178 m long cavity with ability of displacement measurement of 0.5 mm.

Keywords: Fabry-Perot cavity; displacement measurement; heterodyne interferometry; noise suppression; unbalance Michelson interferometer.

PubMed Disclaimer

Conflict of interest statement

The authors declare no conflict of interest. The founding sponsors had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, and in the decision to publish the results.

Figures

Figure 1
Figure 1
Schematics of the set-up of noise suppression of Distributed FeedBack (DFB) laser diode. 90/10 and 50/50 are fiber splitters, FM1 and FM2 are Faraday mirrors, AOM—acusto-optic modulator, PD—photodetector, DDS—direct digital synthesizer, BPF—band pass filter, RFSA—Radiofrequency Spectrum Analyzer, LPF—low pass filter.
Figure 2
Figure 2
Scheme of the set-up for measurement of displacement of the Fabry-Perot cavity with Zerodur spacer under the temperature stable condition. EOM-electro-optic modulator, AOM2-frequency shifting acousto-optic modulator, VCO-voltage-control oscillator, OI-optic isolator, FPD-fast photodetector, PD-R-refection signal photodetector, PD-T-transmission signal photodetector, PBS-polarization beam splitter, PD-photodetector, LPF-low pass filter.

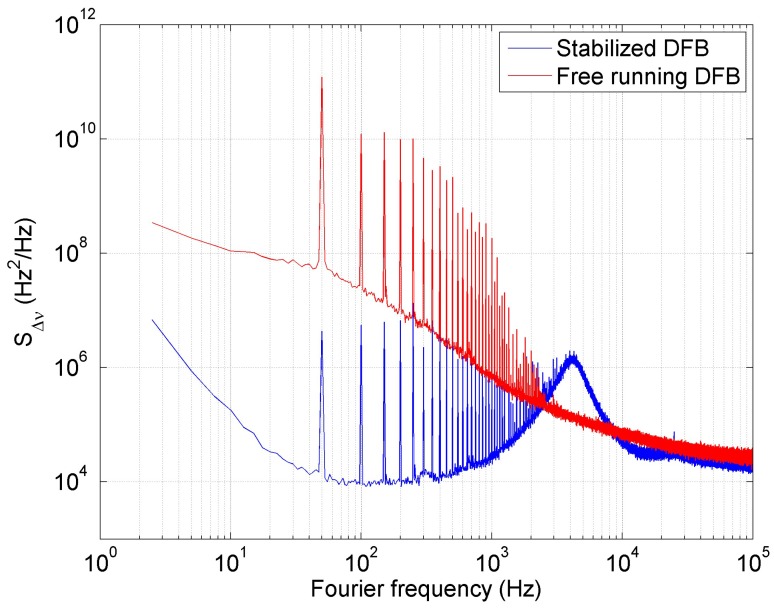

Figure 3
Figure 3
In-loop power spectral density of the frequency noise calculated from the RF spectrum measured on RF spectral analyzer Agilent N9000A (see RFSA in Figure 1).

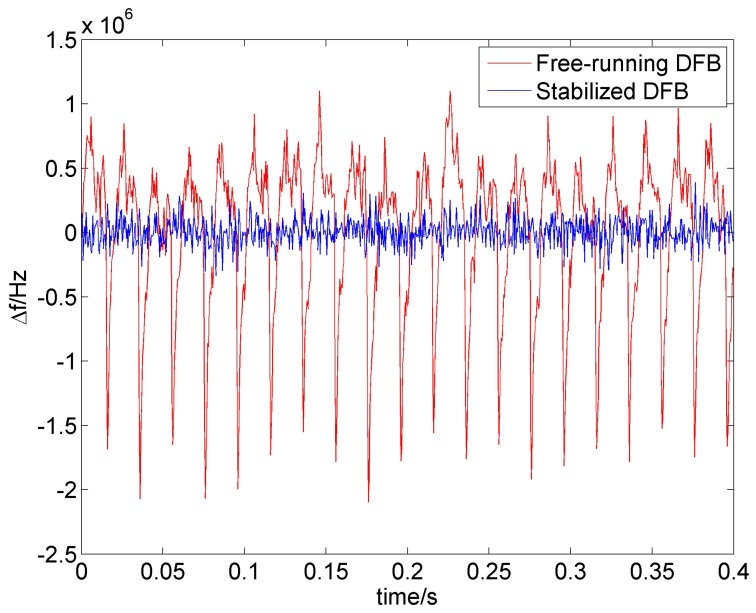

Figure 4
Figure 4
Temporal evolution of the beat frequency between the stabilized optical frequency comb and free-running DFB laser (red) and between the stabilized optical frequency comb and the noise suppressed DFB laser (blue).
See this image and copyright information in PMC

References

    1. Bay Z., Luther G.G., White J.A. Measurement of an Optical Frequency and the Speed of Light. Phys. Rev. Lett. 1972;29:189–192. doi: 10.1103/PhysRevLett.29.189. - DOI
    1. Šmíd R., Číp O., Lazar J. Precise length etalon controlled by stabilized frequency comb. Meas. Sci. Rev. 2008;8:114–117. doi: 10.2478/v10048-008-0027-6. - DOI
    1. Šmíd R., Číp O., Čížek M., Mikel B., Lazar J. Conversion of Stability of Femtosecond Mode-Locked Laser to Optical Cavity Length. IEEE Trans. Ultrason. Ferroelectr. Freq. Control. 2010;57:636–640. doi: 10.1109/TUFFC.2010.1459. - DOI - PubMed
    1. Číp O., Šmíd R., Čížek M., Buchta Z., Lazar J. Study of the thermal stability of Zerodur glass ceramics suitable for a scanning probe microscope frame. Cent. Eur. J. Phys. 2012;10:447–453. doi: 10.2478/s11534-011-0112-6. - DOI
    1. Lawall J.R. Fabry-Perot metrology for displacements up to 50 mm. J. Opt. Soc. Am. A. 2005;22:2786–2798. doi: 10.1364/JOSAA.22.002786. - DOI - PubMed
