Case Reports
. 2017 Jan;99(1):e24-e27.
doi: 10.1308/rcsann.2016.0283. Epub 2016 Sep 23.

Delayed diagnosis of central skull-base osteomyelitis with abscess: case report and learning points

Affiliations
Case Reports

Delayed diagnosis of central skull-base osteomyelitis with abscess: case report and learning points

G Chawdhary et al. Ann R Coll Surg Engl. 2017 Jan.

Abstract

Central skull-base osteomyelitis (CSBO) is a rare life-threatening infection, usually resulting from medial spread of necrotising otitis externa. Here, we describe a case with no identifiable source of infection, causing a delay in diagnosis. An 80-year-old man with Crohn's disease treated with mesalazine presented with collapse and tonic-clonic seizure. Computed tomography and magnetic resonance imaging showed a nasopharyngeal mass that was initially thought to be a neoplasm. Awaiting formal biopsy, he represented with collapse and repeat imaging showed features of abscess formation. Review of previous scans revealed skull-base erosion and the diagnosis was revised to skull-base osteomyelitis. This is the first reported case of CSBO associated with mesalazine use, an aminosalicylate used in Crohn's disease. It is only the second reported case with abscess formation. We discuss the learning points in making a timely diagnosis and examine the potential association of factors such as mesalazine use and abscess formation in this case.

Keywords: Abscess; Crohn’s disease; Mesalazine; Osteomyelitis; Skull base.

PubMed Disclaimer

Figures

Figure 1A
Figure 1A

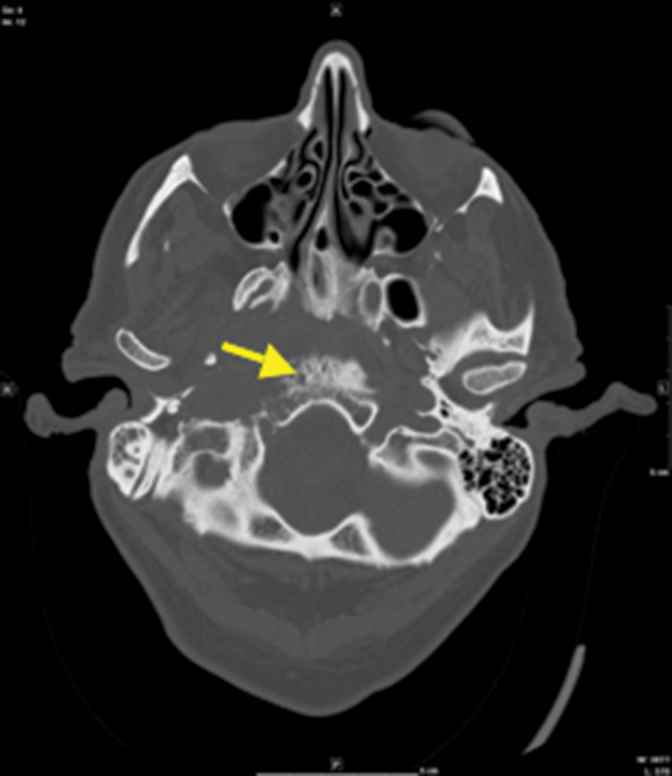

Axial computed tomography showing subtle clival erosion on the right side (arrow) which was not appreciated at the time of the examination
Figure 1B
Figure 1B

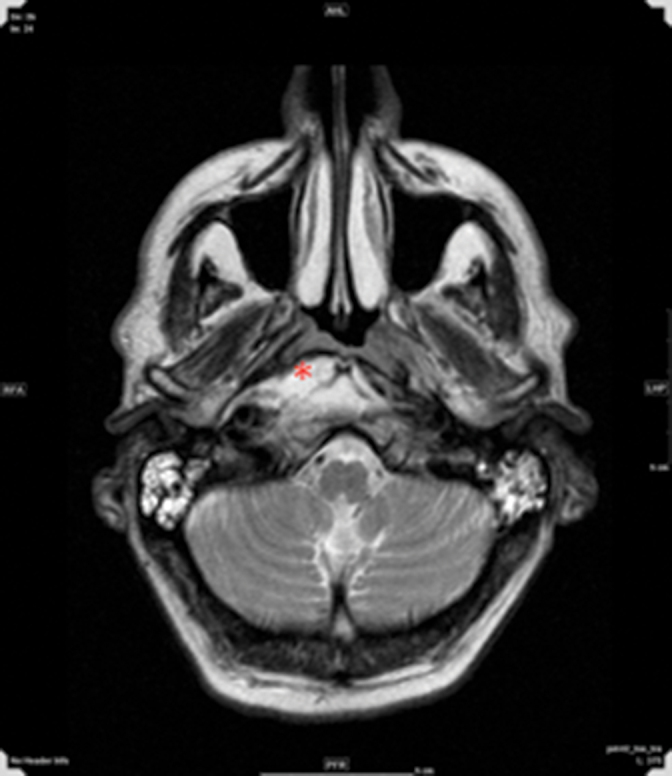

Axial T2 magnetic resonance imaging showing the inferior slices of the study and demonstrating a T2 hyperintense retropharyngeal/preclival mass (asterisk); bilateral middle ear and mastoid effusions are also present
Figure 2A
Figure 2A
Sagittal T1 magnetic resonance imaging showing loss of the normal T1 fat signal in the clivus (arrow); the preclival mass is again noted (arrowhead)
Figure 2B
Figure 2B

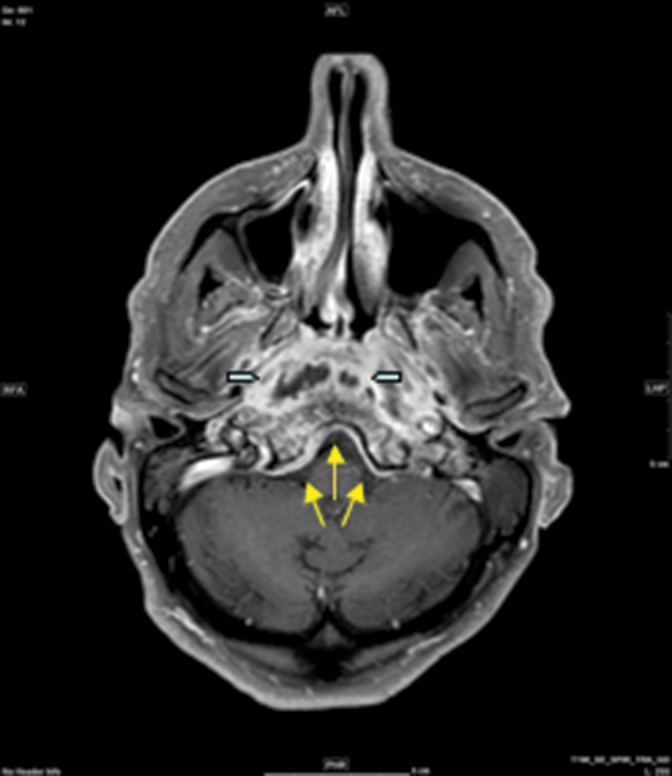

Fat-saturated axial T1 post IV gadolinium scan demonstrating a rim-enhancing mass in the preclival region consistent with an abscess (arrowheads); diffuse inflammatory change and enhancement is seen in the clivus and surrounding soft tissues, in keeping with central skull base osteomyelitis; note the abnormal retroclival dural enhancement (arrows)
Figure 3
Figure 3
An axial computed tomography guided biopsy was performed using a paramaxillary and subzygomatic approach
Figure 4
Figure 4
Fat-saturation axial T1 post IV gadolinium post-treatment scan showing a marked reduction in size of the preclival abscess with a residual rim-enhancing cleft seen on the right side (arrow); the clivus signal has now returned to normal and the dural enhancement has also resolved

References

    1. Johnson AK, Batra PS. Central skull base osteomyelitis: an emerging clinical entity. Laryngoscope 2014; : 1,083–1,087. - PubMed
    1. Joint Formulary Committee. British National Formulary. 68th ed London: BMJ Group and Pharmaceutical Press; 2014.
    1. Parmar HA, Sitoh YY. Diffusion-weighted imaging findings in central skull base osteomyelitis with pharyngeal abscess formation. Am J Roentgenol 2005; : 1,363–1,364. - PubMed
    1. Conterno LO, Turchi MD. Antibiotics for treating chronic osteomyelitis in adults. Cochrane Database Syst Rev 2013; : CD004439. - PMC - PubMed
    1. Courson AM, Vikram HR, Barrs DM. What are the criteria for terminating treatment for necrotizing (malignant) otitis externa? Laryngoscope 2014; : 361–362. - PubMed
