Skip to main page content
U.S. flag

An official website of the United States government

Dot gov

The .gov means it’s official.
Federal government websites often end in .gov or .mil. Before sharing sensitive information, make sure you’re on a federal government site.

Https

The site is secure.
The https:// ensures that you are connecting to the official website and that any information you provide is encrypted and transmitted securely.

Access keys NCBI Homepage MyNCBI Homepage Main Content Main Navigation
. 2016 Sep 30:7:13032.
doi: 10.1038/ncomms13032.

A ketone/alcohol polymer for cycle of electrolytic hydrogen-fixing with water and releasing under mild conditions

Ryo Kato  1 , Keisuke Yoshimasa  1 , Tatsuya Egashira  1 , Takahiro Oya  1 , Kenichi Oyaizu  1 , Hiroyuki Nishide  1
Affiliations

A ketone/alcohol polymer for cycle of electrolytic hydrogen-fixing with water and releasing under mild conditions

Ryo Kato et al. Nat Commun. .

Abstract

Finding a safe and efficient carrier of hydrogen is a major challenge. Recently, hydrogenated organic compounds have been studied as hydrogen storage materials because of their ability to stably and reversibly store hydrogen by forming chemical bonds; however, these compounds often suffer from safety issues and are usually hydrogenated with hydrogen at high pressure and/or temperature. Here we present a ketone (fluorenone) polymer that can be moulded as a plastic sheet and fixes hydrogen via a simple electrolytic hydrogenation at -1.5 V (versus Ag/AgCl) in water at room temperature. The hydrogenated alcohol derivative (the fluorenol polymer) reversibly releases hydrogen by heating (80 °C) in the presence of an aqueous iridium catalyst. Both the use of a ketone polymer and the efficient hydrogen fixing with water as a proton source are completely different from other (de)hydrogenated compounds and hydrogenation processes. The easy handling and mouldable polymers could suggest a pocketable hydrogen carrier.

PubMed Disclaimer

Conflict of interest statement

The authors declare no competing financial interests.

Figures

Figure 1
Figure 1. Hydrogen fixing and releasing by the fluorenone/fluorenol polymer.
(a) A sheet of the fluorenone and fluorenol hydrogel on a 5 g scale and the fluorenol sheet sealed up with a gas-barrier bag (after hydrogen releasing). (b) Schematic representation of hydrogen-fixing and -releasing cycle. (c) Preparation scheme of the fluorenone and fluorenol polymer.
Figure 2
Figure 2. Charge storage and electrolytic hydrogenation of the fluorenone polymer.
Charging/discharging curves of the fluorenone polymer at a rate of 10 C measured in the AN electrolyte. Inset: schematic image of charge propagation in the polymer layer and conversion plots of the fluorenone to fluorenol unit in the fluorenone polymer layer electrolytically reduced in the AN/water electrolyte. Theoretical capacity of the fluorenone polymer-coated electrode was 52 mC per 0.2 mg polymer. The dashed line indicates the theoretical conversion with the passed charge; the error bars for the s.d. calculated from five samples.
Figure 3

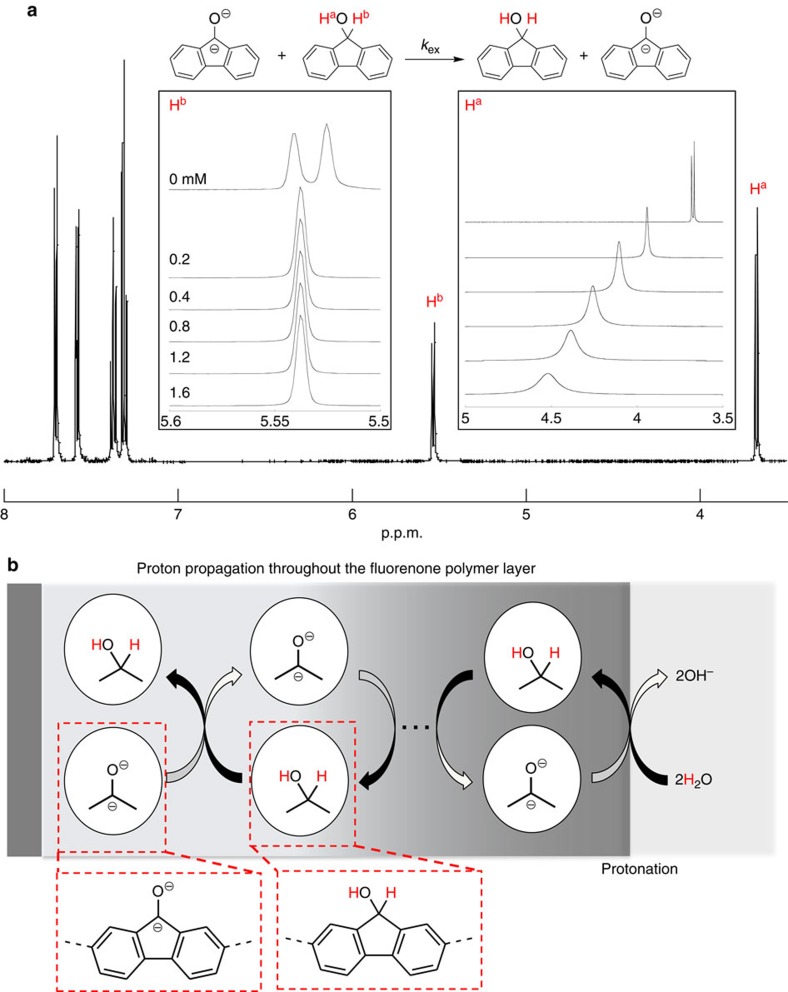

Figure 3. Proton exchange reaction of fluorenol/fluorenone dianion.
(a) 1H NMR measurements of fluorenol in the presence of the fluorenone dianion were conducted in AN-d3. Inset, expanded cyclopentane and hydroxyl proton spectra of fluorenol. (b) Schematic image of proton propagation in the polymer layer.
See this image and copyright information in PMC

References

    1. Armstrong R. C. et al.. The frontiers of energy. Nat. Energy 1, 1–8 (2016).
    1. Schlapbach L. & Züttel A. Hydrogen-storage materials for mobile applications. Nature 414, 353–358 (2001). - PubMed
    1. Steele B. C. H. & Heinzel A. Materials for fuel-cell technologies. Nature 414, 345–352 (2001). - PubMed
    1. Zheng J. et al.. Development of high pressure gaseous hydrogen storage technologies. Int. J. Hydrogen Energy 37, 1048–1057 (2012).
    1. Ströbel A., Garche J., Moseley P. T., Jörissen L. & Wolf G. Hydrogen storage by carbon materials. J. Power Sources 159, 781–801 (2006).
