. 2016 Oct 14;11(Suppl 2):32.
doi: 10.1186/s13013-016-0096-5. eCollection 2016.

Measuring anterior trunk deformity in scoliosis: development of asymmetry parameters using surface topography (a pilot study)

Patrick Knott  1 , Baron Lonner  2 , Mark Smith  3 , Erin Frommeyer  1 , Yuan Ren  3
Affiliations

Measuring anterior trunk deformity in scoliosis: development of asymmetry parameters using surface topography (a pilot study)

Patrick Knott et al. Scoliosis Spinal Disord. .

Abstract

Background: Clinicians who assess and treat patients for scoliosis typically use parameters that are all visible from the posterior view. Radiographs assess the internal spinal deformity, but do not directly evaluate body shape, either posterior or anterior. This is problematic, as the patient is most concerned about the way they appear in the mirror. An objective set of anterior measurements is needed to help quantify the anterior asymmetry that is present in scoliosis.

Methods: The design of this system of assessment was developed as a consensus of thinking from four points of view. A spine surgeon provided the musculoskeletal structural perspective. A plastic surgeon specializing in breast reconstruction provided the aesthetic and soft tissue perspective. A surface topography researcher provided the imaging perspective, and a scoliosis patient provided the self-perception and emotional perspective. Using an iterative process, a series of potential measurement parameters using surface topography measurements were considered, debated, and ultimately selected to be part of a system of measurement that provides an overall assessment of anterior trunk asymmetry.

Results: An anterior surface topography scan in the relaxed, standing position was taken of the scoliosis patient. The computer provides a 3D topographical model that is used to complete measurements that can be combined to achieve an Anterior Aesthetic Deformity Score. Shoulder parameters, including shoulder height difference and shoulder slope difference, make up 40 % of the total score. Breast asymmetry, including nipple height difference and sternal notch-to-nipple distance, make up 30 % of the total score. Waist asymmetry makes up the final 30 % of the score, providing an objective and quantifiable measure of anterior trunk deformity.

Conclusions: These measurements provide an objective, systematic evaluation of anterior trunk asymmetry that can be used in the assessment of patients with scoliosis. Clinical research should now be done to validate this system and show that it is reproducible in a variety of settings and patients.

Keywords: Anterior Trunk Asymmetry; Surface Topography; TAASQ.

PubMed Disclaimer

Figures

Fig. 1
Fig. 1

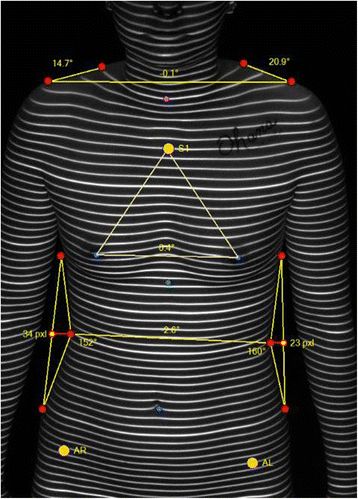

Anterior image with measurements in place
See this image and copyright information in PMC

References

    1. Tones M, Moss N, Polly DW., Jr A review of quality of life and psychosocial issues in scoliosis. Spine (Phila Pa 1976) 2006;31:3027–38. doi: 10.1097/01.brs.0000249555.87601.fc. - DOI - PubMed
    1. Auerbach JD, Lonner BS, Crerand CE, Shah SA, Flynn JM, Bastrom T, Penn P, Ahn J, Toombs C, Bharucha N, Bowe WP, Newton PO. Body image in patients with adolescent idiopathic scoliosis: validation of the Body Image Disturbance Questionnaire--Scoliosis Version. J Bone Joint Surg Am. 2014;96(8) doi: 10.2106/JBJS.L.00867. - DOI - PMC - PubMed
    1. Muth JL, Cash TF. Body-image attitudes: what difference does gender make? J Appl Soc Psychol. 1997;27:1438–52. doi: 10.1111/j.1559-1816.1997.tb01607.x. - DOI
    1. Sapountzi-Krepia DS, Valavanis J, Panteleakis GP, Zangana DT, Vlachojiannis PC, Sapkas GS. Perceptions of body image, happiness, and satisfaction in adolescents wearing a Boston brace for scoliosis treatment. J Adv Nurs. 2001;35(5):683–90. doi: 10.1046/j.1365-2648.2001.01900.x. - DOI - PubMed
    1. Normelli H, Sevastik JA, Ljung G, et al. The symmetry of the breasts in normal and scoliotic girls. Spine. 1986;11(7):749–52. doi: 10.1097/00007632-198609000-00016. - DOI - PubMed
