Effects of Sampling Conditions and Environmental Factors on Fecal Volatile Organic Compound Analysis by an Electronic Nose Device

Abstract

Prior to implementation of volatile organic compound (VOC) analysis in clinical practice, substantial challenges, including methodological, biological and analytical difficulties are faced. The aim of this study was to evaluate the influence of several sampling conditions and environmental factors on fecal VOC profiles, analyzed by an electronic nose (eNose). Effects of fecal sample mass, water content, duration of storage at room temperature, fecal sample temperature, number of freeze-thaw cycles and effect of sampling method (rectal swabs vs. fecal samples) on VOC profiles were assessed by analysis of totally 725 fecal samples by means of an eNose (Cyranose320^®). Furthermore, fecal VOC profiles of totally 1285 fecal samples from 71 infants born at three different hospitals were compared to assess the influence of center of origin on VOC outcome. We observed that all analyzed variables significantly influenced fecal VOC composition. It was feasible to capture a VOC profile using rectal swabs, although this differed significantly from fecal VOC profiles of similar subjects. In addition, 1285 fecal VOC-profiles could significantly be discriminated based on center of birth. In conclusion, standardization of methodology is necessary before fecal VOC analysis can live up to its potential as diagnostic tool in clinical practice.

Keywords: Cyranose320®; electronic nose; feces; sampling conditions; smell; standardization; volatile organic compound.

Figure 1

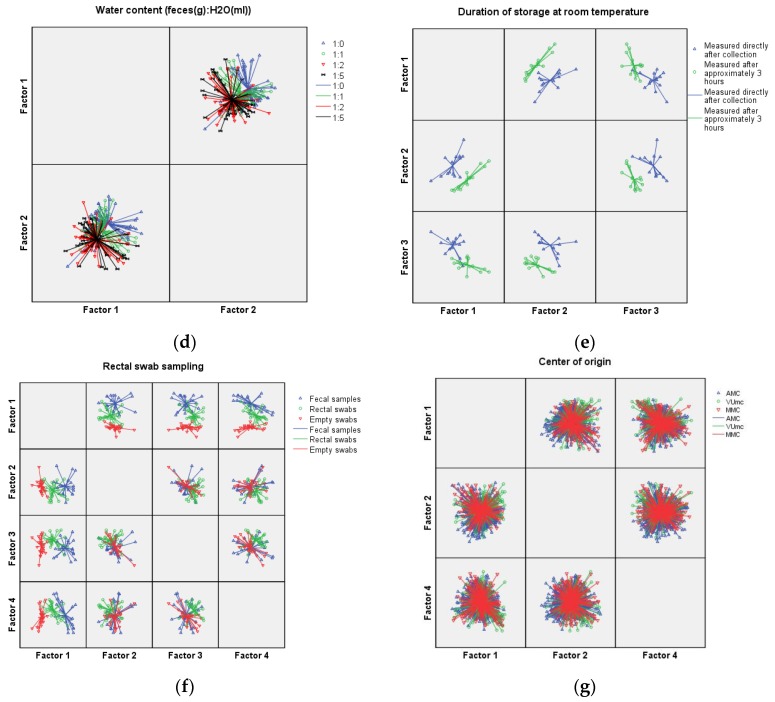

(a–g) Scatterplot for the discrimination by electronic nose based on difference in several variables, including: (a) sample mass; (b) number of freeze–thaw cycles; (c) sample temperature; (d) water content; (e) duration of storage at room temperature; (f) rectal swabbing; and (g) center of origin. Axes depicted are orthogonal linear recombinations of the raw sensor data by means of principle component analysis. Illustrated axes solely comprise principle components demonstrated to be statistically significant different for the variable concerned. Individual VOC profiles are illustrated as marked points. The intersection of the lines deriving from the individual profiles demonstrates the mean VOC profile of this specific variable. All evaluated sampling conditions have a significant influence on detected fecal VOC profile, only dilution from 1:2 to 1:5 did not affect outcome. Abbreviations: AMC = Academic medical center; MMC = Maxima Medical Center; VUmc = Vrije Universiteit medical center.

Figure 1

(a–g) Scatterplot for the discrimination by electronic nose based on difference in several variables, including: (a) sample mass; (b) number of freeze–thaw cycles; (c) sample temperature; (d) water content; (e) duration of storage at room temperature; (f) rectal swabbing; and (g) center of origin. Axes depicted are orthogonal linear recombinations of the raw sensor data by means of principle component analysis. Illustrated axes solely comprise principle components demonstrated to be statistically significant different for the variable concerned. Individual VOC profiles are illustrated as marked points. The intersection of the lines deriving from the individual profiles demonstrates the mean VOC profile of this specific variable. All evaluated sampling conditions have a significant influence on detected fecal VOC profile, only dilution from 1:2 to 1:5 did not affect outcome. Abbreviations: AMC = Academic medical center; MMC = Maxima Medical Center; VUmc = Vrije Universiteit medical center.
