. 2016 Dec 15:7:1829.
doi: 10.3389/fpls.2016.01829. eCollection 2016.

Non-destructive Assessment of Plant Nitrogen Parameters Using Leaf Chlorophyll Measurements in Rice

Syed Tahir Ata-Ul-Karim  1 , Qiang Cao  1 , Yan Zhu  1 , Liang Tang  1 , Muhammad Ishaq Asif Rehmani  2 , Weixing Cao  1
Affiliations

Non-destructive Assessment of Plant Nitrogen Parameters Using Leaf Chlorophyll Measurements in Rice

Syed Tahir Ata-Ul-Karim et al. Front Plant Sci. .

Abstract

Non-destructive assessment of plant nitrogen (N) status is essential for efficient crop production and N management in intensive rice (Oryza sativa L.) cropping systems. Chlorophyll meter (SPAD-502) has been widely used as a rapid, non-destructive and cost-effective diagnostic tool for in-season assessment of crop N status. The present study was intended to establish the quantitative relationships between chlorophyll meters readings, plant N concentration (PNC), N nutrition index (NNI), accumulated N deficit (AND), and N requirement (NR), as well as to compare the stability of these relationships at different vegetative growth stages in Japonica and Indica rice cultivars. Seven multi-locational field experiments using varied N rates and seven rice cultivars were conducted in east China. The results showed that the PNC and chlorophyll meters readings increased with increasing N application rates across the cultivars, growing seasons, and sites. The PNC and chlorophyll meters readings under varied N rates ranged from 2.29 to 3.21, 1.06 to 1.82 and 37.10 to 45.4 and 37.30 to 46.6, respectively, at TL and HD stages for Japonica rice cultivars, while they ranged from 2.25 to 3.23, 1.34 to 1.91 and 35.6 to 43.3 and 37.3 to 45.5 for Indica rice cultivars, respectively. The quantitative relationships between chlorophyll meters readings, PNC, NNI, AND, and NR established at different crop growth stages in two rice ecotypes, were highly significant with R2 values ranging from 0.69 to 0.93 and 0.71 to 0.86 for Japonica and Indica rice, respectively. The strongest relationships were observed for AND and NR at panicle initiation and booting stages in both rice ecotypes. The validation of the relationships developed in the present study with an independent data exhibited a solid model performance and confirmed their robustness as a reliable and rapid diagnostic tool for in-season estimation of plant N parameters for sustainable N management in rice. The results of this study will offer a suitable approach for managing N application precisely during the growth period of the rice crop in intensive rice cropping systems of east China.

Keywords: accumulated nitrogen deficit; chlorophyll meter; critical nitrogen; nitrogen nutrition index; nitrogen requirement; phenological stages; rice.

PubMed Disclaimer

Figures

FIGURE 1
FIGURE 1
Changes in plant nitrogen concentration (PNC) over growth progress under varied N rates in Japonica (J) and Indica (I) rice cultivars during 2010–2014. (A) LXY18, 2010; (B) WXJ14, 2010; (C) SY63, 2011; (D) SY63, 2012; (E) WYJ24, 2014; (F) YLY1, 2014. For X-axis: TL, tillering; SE, stem elongation; PI, panicle initiation; BT, booting; HD, heading.
FIGURE 2
FIGURE 2
Changes in chlorophyll meter reading over growth stages under varied N rates in Japonica (J) and Indica (I) cultivars during 2010–2014. (A) LXY18, 2010; (B) WXJ14, 2010; (C) SY63, 2011; (D) SY63, 2012; (E) WYJ24, 2014; (F) YLY1, 2014. For X-axis: TL, tillering; SE, stem elongation; PI, panicle initiation; BT, booting; HD, heading.
FIGURE 3
FIGURE 3
Quantitative relationships between chlorophyll meter reading and plant nitrogen concentration (PNC) at different growth stages in Japonica and Indica rice. (A) Tillering, (B) Stem elongation, (C) Panicle initiation, (D) Booting, (E) Heading.
FIGURE 4
FIGURE 4
Quantitative relationships between chlorophyll meter reading and nitrogen nutrition index (NNI) at different growth stages in Japonica and Indica rice. (A) Tillering, (B) Stem elongation, (C) Panicle initiation, (D) Booting, (E) Heading.
FIGURE 5
FIGURE 5
Quantitative relationships between chlorophyll meter reading and accumulated nitrogen deficit (AND) at different growth stages in Japonica and Indica rice. (A) Tillering, (B) Stem elongation, (C) Panicle initiation, (D) Booting, (E) Heading.
FIGURE 6
FIGURE 6
Quantitative relationships between chlorophyll meter reading and nitrogen requirement (NR) at different growth stages in Japonica and Indica rice. (A) Tillering, (B) Stem elongation, (C) Panicle initiation, (D) Booting, (E) Heading.
FIGURE 7
FIGURE 7

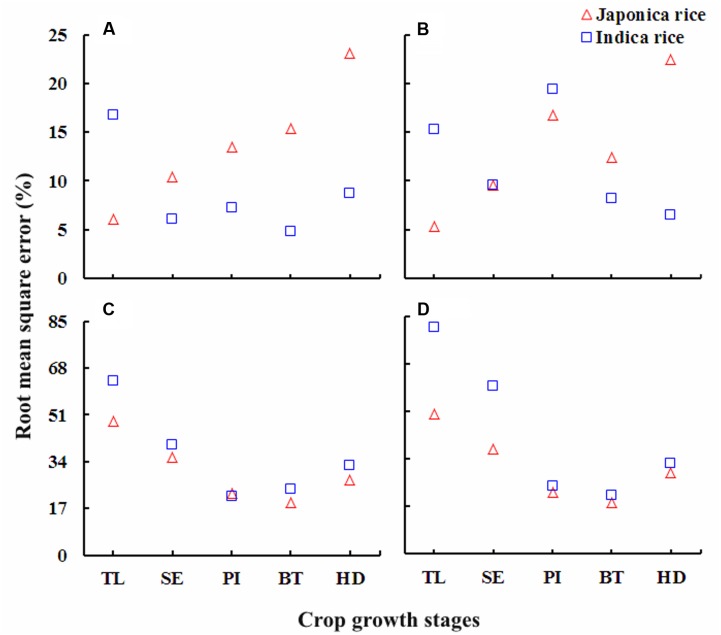

The RMSE (%) values for the validation of the quantitative relationships between, (A) chlorophyll meter reading and plant nitrogen concentration (PNC), (B) nitrogen nutrition index (NNI), (C) accumulated nitrogen deficit (AND) and (D) nitrogen requirement (NR) at different growth stages in Japonica and Indica rice. For X-axis: TL, tillering; SE, stem elongation; PI, panicle initiation; BT, booting; HD, heading.
See this image and copyright information in PMC

References

    1. Adhikari C., Bronson K., Panuallah G., Regmi A., Saha P., Dobermann A., et al. (1999). On-farm soil N supply and N nutrition in the rice–wheat system of Nepal and Bangladesh. Field Crops Res. 64 273–286. 10.1016/S0378-4290(99)00063-5 - DOI
    1. Ata-Ul-Karim S. T., Liu X., Lu Z., Yuan Z., Zhu Y., Cao W. (2016). In-season estimation of rice grain yield using critical nitrogen dilution curve. Field Crops Res. 195 1–8. 10.1016/j.fcr.2016.04.027 - DOI
    1. Ata-Ul-Karim S. T., Liu X., Lu Z., Zheng H., Cao W., Zhu Y. (2017). Estimation of nitrogen fertilizer requirement for rice crop using critical nitrogen dilution curve. Field Crops Res. 201 32–40. 10.1371/journal.pone.0104540 - DOI
    1. Ata-Ul-Karim S. T., Yao X., Liu X., Cao W., Zhu Y. (2013). Development of critical nitrogen dilution curve of Japonica rice in Yangtze River Reaches. Field Crops Res. 149 149–158. 10.1016/j.fcr.2013.03.012 - DOI
    1. Ata-Ul-Karim S. T., Yao X., Liu X., Cao W., Zhu Y. (2014a). Determination of critical nitrogen dilution curve based on stem dry matter. PLoS ONE 9:e104540 10.1371/journal.pone.0104540 - DOI - PMC - PubMed
