. 2017 Jan 5:7:40078.
doi: 10.1038/srep40078.

Natural ageing responses of duplex structured Mg-Li based alloys

C Q Li  1   2 , D K Xu  1 , B J Wang  1 , L Y Sheng  3 , Y X Qiao  4 , E H Han  1
Affiliations

Natural ageing responses of duplex structured Mg-Li based alloys

C Q Li et al. Sci Rep. .

Abstract

Natural ageing responses of duplex structured Mg-6%Li and Mg-6%Li-6%Zn-1.2%Y alloys have been investigated. Microstructural analyses revealed that the precipitation and coarsening process of α-Mg particles could occur in β-Li phases of both two alloys during ageing process. Since a certain amount of Mg atoms in β-Li phases were consumed for the precipitation of abundant tiny MgLiZn particles, the size of α-Mg precipitates in Mg-6%Li-6%Zn-1.2%Y alloy was relatively smaller than that in Mg-6%Li alloy. Micro hardness measurements demonstrated that with the ageing time increasing, the α-Mg phases in Mg-6%Li alloy could have a constant hardness value of 41 HV, but the contained β-Li phases exhibited a slight age-softening response. Compared with the Mg-6%Li alloy, the age-softening response of β-Li phases in Mg-6%Li-6%Zn-1.2%Y alloy was much more profound. Meanwhile, a normal age-hardening response of α-Mg phases was maintained. Tensile results indicated that obvious ageing-softening phenomenon in terms of macro tensile strength occurred in both two alloys. Failure analysis demonstrated that for the Mg-6%Li alloy, cracks were preferentially initiated at α-Mg/β-Li interfaces. For the Mg-6%Li-6%Zn-1.2%Y alloy, cracks occurred at both α-Mg/β-Li interfaces and slip bands in α-Mg and β-Li phases.

PubMed Disclaimer

Figures

Figure 1
Figure 1
Optical observations to the etched surfaces of: (a) as-extruded and (b) solid solution treated samples of Mg-6%Li alloy, (c) as-extruded and (d) solid solution treated samples of Mg-6%Li-6%Zn-1.2%Y alloy.
Figure 2
Figure 2
(a) Secondary electron and (b) backscattered electron images of the as-extruded Mg-6%Li-6%Zn-1.2%Y alloy; Images (c) and (d) are the SEM-EDS results of the marked areas of “C” and “D” in image (b).
Figure 3
Figure 3
Microstructural evolution of the Mg-6%Li alloy subjected to natural ageing for (a) 0 days, (b) 7 days, (c) 21 days, (d) 35 days, (e) 42 days and (f) 180 days; High magnification observations to the squared area are inserted.
Figure 4
Figure 4
Microstructural evolution of the Mg-6%Li-6%Zn-1.2%Y alloy subjected to natural ageing for (a) 0 days, (b) 7 days, (c) 21 days, (d) 35 days, (e) 42 days and (f) 180 days; High magnification observations to the squared area are inserted.
Figure 5
Figure 5
TEM morphologies and TEM-EDS elemental mappings of Mg-6%Li-6%Zn-1.2%Y alloy subjected to natural ageing for 7 days: (a) and (b) bright field images; The selected area diffraction patterns (SADPs) to the α-Mg precipitates is inserted in image (a); TEM-EDS elemental mappings of: (c) Mg, (d) Zn and (e) Y.

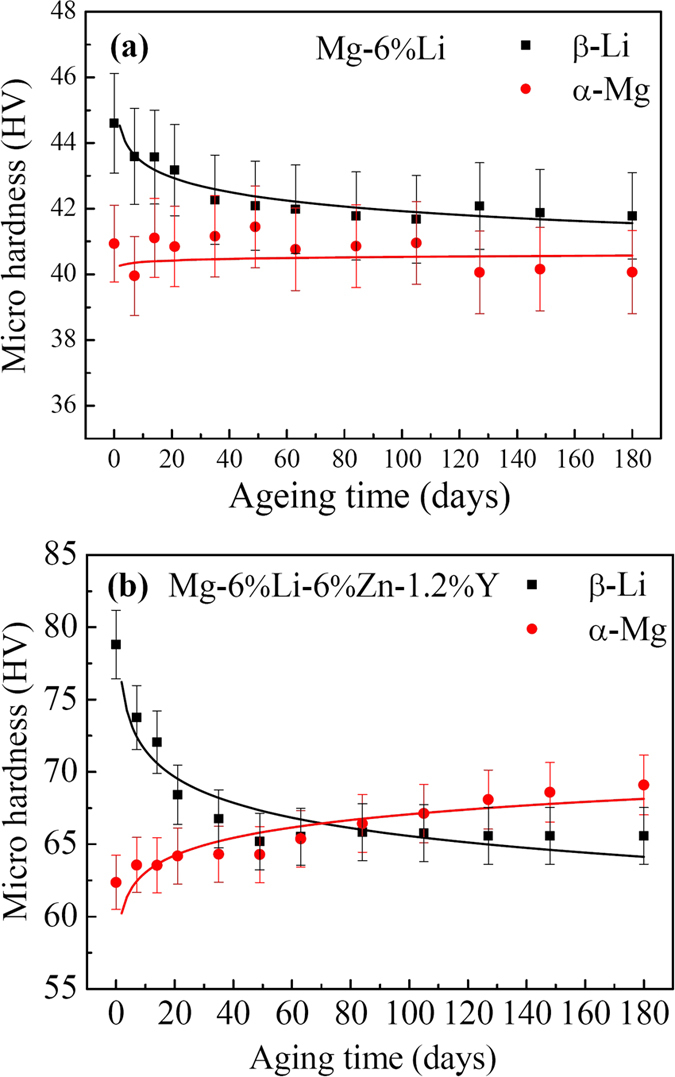

Figure 6
Figure 6
Micro hardness of β-Li and α-Mg phases versus natural ageing time curves for: (a) Mg-6%Li and (b) Mg-6%Li-6%Zn-1.2%Y alloys.
Figure 7
Figure 7
Tensile stress-strain curves of: (a) Mg-6%Li and (b) Mg-6%Li-6%Zn-1.2%Y alloys before and after natural ageing for 35 days.
Figure 8
Figure 8
Observations to side surfaces near the fracture sites of: (a) and (c) Mg-6%Li alloy before and after natural ageing for 35 days, (e) and (g) Mg-6%Li-6%Zn-1.2%Y alloy before and after natural ageing for 35 days. Images (b,d,f and h) are high magnification observations to the squared areas in images (a,c,e and g), respectively.
See this image and copyright information in PMC

References

    1. Takuda H., Kikuchi S., Yoshida N. & Okahara H. Tensile properties and press formability of a Mg-9Li-1Y alloy sheet. Mater. Trans. 44, 2266–2270 (2003).
    1. Xu D. K., Zu T. T., Yin M., Xu Y. B. & Han E. H. Mechanical properties of the icosahedral phase reinforced duplex Mg-Li alloy both at room and elevated temperatures. J. Alloys Compd. 582, 161–166 (2014).
    1. Kumar V., Gupta A., Lahiri D. & Balani K. Serrated yielding during nanoindentation of thermomechanically processed novel Mg-9Li-7Al-1Sn and Mg-9Li-5Al-3Sn-1Zn alloys. J. Phys. D: Appl. Phys. 46, 1–8 (2013).
    1. Mordike B. L. & Ebert T. Magnesium properties-applications-potential. Mater. Sci. Eng A. 302, 37–45 (2001).
    1. Wen Z., Wu C., Dai C. & Yang F. Corrosion behaviors of Mg and its alloys with different Al contents in a modified simulated body fluid. J. Alloys. Compd. 488, 392–399 (2009).
