Thermodynamics of manganese oxides: Sodium, potassium, and calcium birnessite and cryptomelane

Nancy Birkner  1   2   3 , Alexandra Navrotsky  4   2
Affiliations

Thermodynamics of manganese oxides: Sodium, potassium, and calcium birnessite and cryptomelane

Nancy Birkner et al. Proc Natl Acad Sci U S A. .

Abstract

Manganese oxides with layer and tunnel structures occur widely in nature and inspire technological applications. Having variable compositions, these structures often are found as small particles (nanophases). This study explores, using experimental thermochemistry, the role of composition, oxidation state, structure, and surface energy in the their thermodynamic stability. The measured surface energies of cryptomelane, sodium birnessite, potassium birnessite and calcium birnessite are all significantly lower than those of binary manganese oxides (Mn3O4, Mn2O3, and MnO2), consistent with added stabilization of the layer and tunnel structures at the nanoscale. Surface energies generally decrease with decreasing average manganese oxidation state. A stabilizing enthalpy contribution arises from increasing counter-cation content. The formation of cryptomelane from birnessite in contact with aqueous solution is favored by the removal of ions from the layered phase. At large surface area, surface-energy differences make cryptomelane formation thermodynamically less favorable than birnessite formation. In contrast, at small to moderate surface areas, bulk thermodynamics and the energetics of the aqueous phase drive cryptomelane formation from birnessite, perhaps aided by oxidation-state differences. Transformation among birnessite phases of increasing surface area favors compositions with lower surface energy. These quantitative thermodynamic findings explain and support qualitative observations of phase-transformation patterns gathered from natural and synthetic manganese oxides.

Keywords: birnessite; calorimetry; cryptomelane; manganese oxides; thermodynamics.

PubMed Disclaimer

Conflict of interest statement

The authors declare no conflict of interest.

Figures

Fig. 1.
Fig. 1.
XRD powder patterns of the tunnel structure phase, cryptomelane (K-cryptomelane) (A), and the birnessites (B), which are labeled as follows: A, sodium birnessite (Na-Birnessite); B, potassium birnessite (K-Birnessite); and C, calcium birnessite (Ca-Birnessite). The birnessite powder patterns are y-offset to improve readability. arb, arbitrary units.
Fig. 2.
Fig. 2.

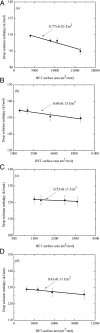

Water-corrected drop solution enthalpies versus molar surface area. Surface enthalpy of the hydrous surface is 0.77 ± 0.10 J/m2 for cryptomelane (A), 0.69 ± 0.13 J/m2 for sodium birnessite (B), 0.55 ± 0.11 J/m2 for potassium birnessite (C), and 0.41 ± 0.11 J/m2 for calcium birnessite (D).
Fig. 3.
Fig. 3.
Surface enthalpy (hydrous surface) versus Mn AOS. Values for sodium birnessite (Na0.09·MnO1.82·0.52H2O) (■), potassium birnessite (K0.21·MnO1.87·0.33H2O) (●), calcium birnessite (Ca0.12·MnO1.81·0.72H2O) (▲), and cryptomelane (K0.11·MnO1.94·0.37H2O) (◄) are from the present work. Samples of Ca–Mn–oxide nanosheets [Ca0.39MnO2.34·0.42H2O (▼)] and [Ca0.43MnO2.27·0.31H2O (♦)] are from N.B. et al. (6).
