Use of application containers and workflows for genomic data analysis

Abstract

Background: The rapid acquisition of biological data and development of computationally intensive analyses has led to a need for novel approaches to software deployment. In particular, the complexity of common analytic tools for genomics makes them difficult to deploy and decreases the reproducibility of computational experiments.

Methods: Recent technologies that allow for application virtualization, such as Docker, allow developers and bioinformaticians to isolate these applications and deploy secure, scalable platforms that have the potential to dramatically increase the efficiency of big data processing.

Results: While limitations exist, this study demonstrates a successful implementation of a pipeline with several discrete software applications for the analysis of next-generation sequencing (NGS) data.

Conclusions: With this approach, we significantly reduced the amount of time needed to perform clonal analysis from NGS data in acute myeloid leukemia.

Keywords: Big data; bioinformatics workflow; containerization; genomics.

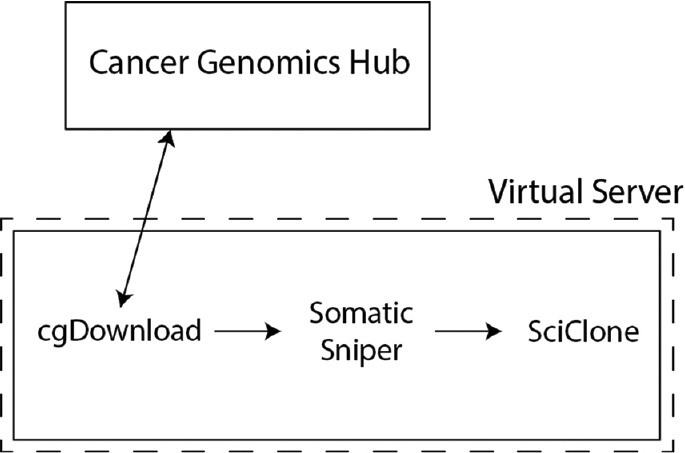

Figure 1

Serial workflow and architecture to download Cancer Genomics Hub data. To obtain next generation sequencing data from Cancer Genomics Hub, the cgDownload utility was used to transfer aligned whole genome and whole exome sequencing data. The SomaticSniper utility was then used to identify somatic variants and tumor clonality was predicted with SciClone. These utilities were all manually configured on a server running CentOS 6.7

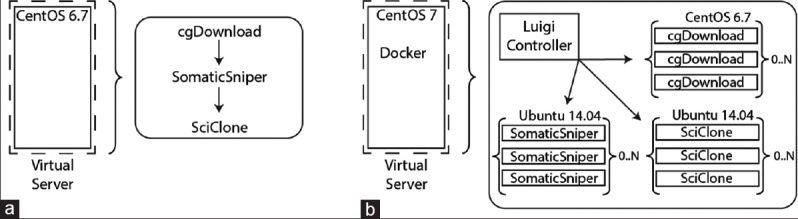

Figure 2

Comparison of standard application architecture and containerized architecture for clonal analysis. (a) When deployed in a virtual server, the analysis workflow was installed on CentOS 6.7 and had to be run serially due to limitations in software parallelization and local resources. Applications are launched manually in sequence to download NGS data, identify variants, and predict tumor clonality. (b) When configured in Docker containers and driven by a workflow manager, applications were automatically launched and able to scale based on available system resources. Each application was configured on its native operating system architecture within the container, as indicated in the figure

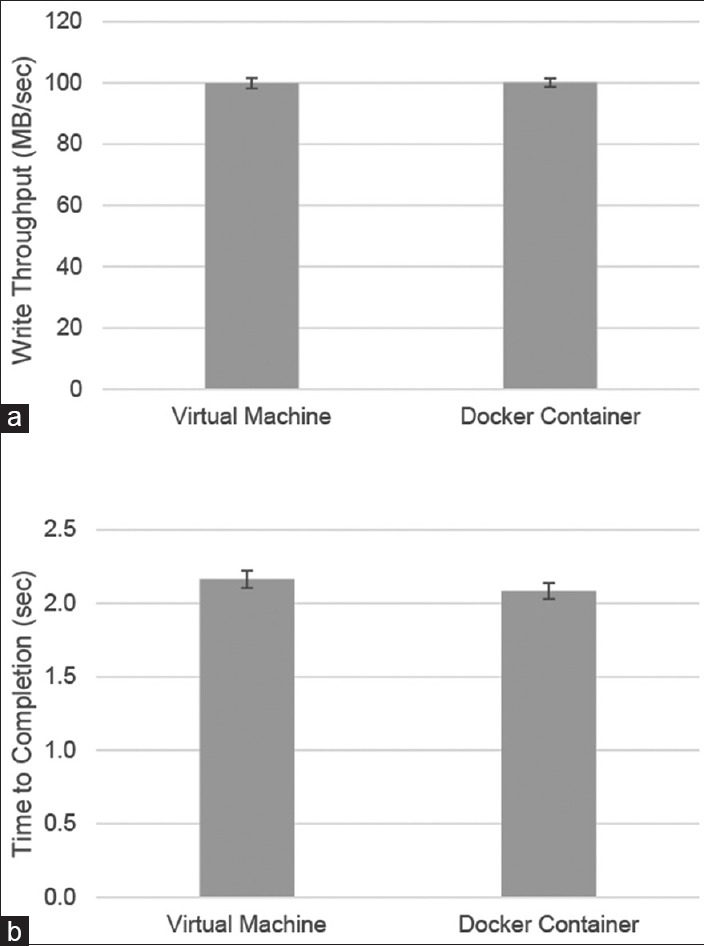

Figure 3

Disk throughput and processor efficiency of Docker containers. (a) The time needed to write a one-gigabyte file with the dd utility was similar in both a virtual machine and within a Docker container on the same host. (b) The calculation of 10,000 primes with the sysbench utility showed similar performance in a virtual machine and a Docker container on the same host

Figure 4

Illustration of parallelization improvements with a workflow-driven container architecture. (a) When performed serially, the download (white bars) and analysis (shaded bars) of a single pair of tumor and germline sequence on local hardware took approximately 4 h (bars drawn to scale). (b) When parallelized with a workflow manager and Docker containers, multiple specimens could be processed simultaneously to take advantage of all system resources, including network, memory, and processor capacity
