Styrene Purification by Guest-Induced Restructuring of Pillar[6]arene

Abstract

The separation of styrene (St) and ethylbenzene (EB) mixtures is important in the chemical industry. Here, we explore the St and EB adsorption selectivity of two pillar-shaped macrocyclic pillar[n]arenes (EtP5 and EtP6; n = 5 and 6). Both crystalline and amorphous EtP6 can capture St from a St-EB mixture with remarkably high selectivity. We show that EtP6 can be used to separate St from a 50:50 v/v St:EB mixture, yielding in a single adsorption cycle St with a purity of >99%. Single-crystal structures, powder X-ray diffraction patterns, and molecular simulations all suggest that this selectivity is due to a guest-induced structural change in EtP6 rather than a simple cavity/pore size effect. This restructuring means that the material "self-heals" upon each recrystallization, and St separation can be carried out over multiple cycles with no loss of performance.

Figure 1

Chemical structures: (a) St and EB; (b) EtP5 and EtP6. The internal cavity diameters of EtP5 and EtP6 are based on the inscribed circle of the regular pentagon and hexagon, respectively.

Figure 2

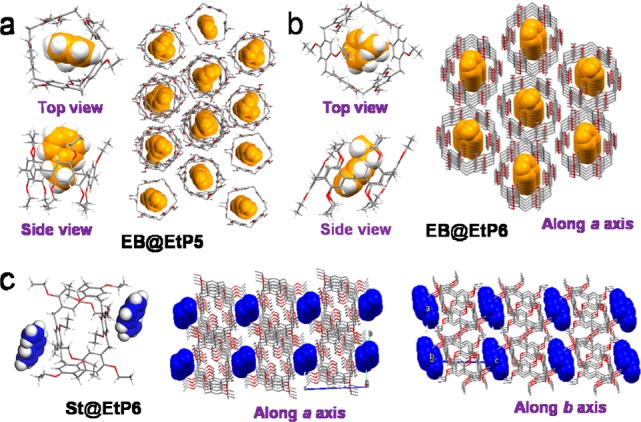

Single-crystal structures: (a) EB@EtP5; (b) EB@EtP6; and (c) St@EtP6. St is accommodated in 2D extrinsic channels between the pillararenes in St@EtP6.

Figure 3

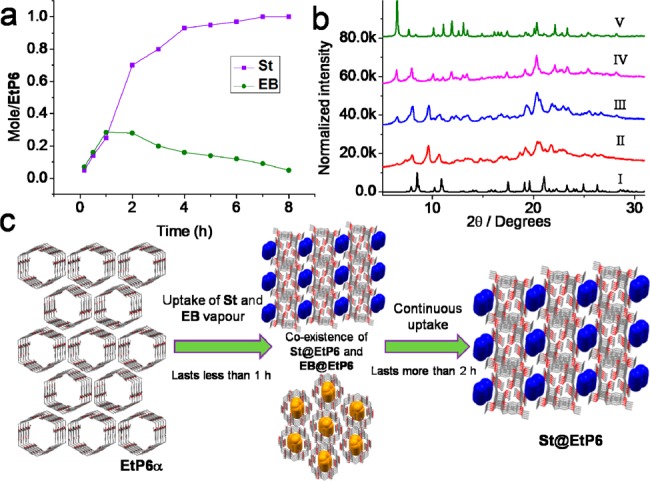

(a) Time-dependent EtP6α solid–vapor sorption plot for St-EB mixture vapor. (b) Time-dependent PXRD patterns of EtP6α: (I) simulated from single-crystal structure of EB@EtP6; after adsorption of St-EB mixture vapor for (II) 1 h, (III) 2 h, and (IV) 8 h; (V) simulated PXRD pattern from single-crystal structure of St@EtP6. (c) Representation of EtP6α structural changes upon uptake of St-EB mixture vapor.

Figure 4

(a) Time-dependent EB@EtP6α solid–vapor sorption plot for St-EB mixture vapor. (b) Time-dependent PXRD patterns of EB@EtP6: (I) original EB@EtP6; after adsorption of St-EB mixture vapor for (II) 1 h, (III) 2 h and (IV) 8 h; (V) simulated from single-crystal structure of St@EtP6. (c) Time-dependent St@EtP6α solid–vapor sorption plot for St-EB mixture vapor. (d) Time-dependent PXRD patterns of St@EtP6: (I) original St@EtP6; after adsorption of St-EB mixture vapor for (II) 1 h and (III) 8 h; (IV) simulated from single-crystal structure of St@EtP6. (e) Structural representation of the irreversible transformation between St@EtP6 and EB@EtP6 upon uptake of St-EB mixture vapor.

Figure 5
