Role of dynamic computed tomography scans in patients with congenital craniovertebral junction malformations

Abstract

Aim: To evaluate the role of dynamic computed tomography (CT) scan imaging in diagnosing craniovertebral junction (CVJ) instability in patients with congenital CVJ malformations.

Methods: Patients with symptomatic congenital CVJ malformations who underwent posterior fossa decompression and had a preoperative dynamic CT scan in flexion and extended position were included in this study. Measurements of the following craniometrical parameters were taken in flexed and extended neck position: Atlanto-dental interval (ADI), distance of the odontoid tip to the Chamberlain's line, and the clivus-canal angle (CCA). Assessment of the facet joints congruence was also performed in both positions. Comparison of the values obtained in flexion and extension were compared using a paired Student's t-test.

Results: A total of ten patients with a mean age of 37.9 years were included. In flexion imaging, the mean ADI was 1.76 mm, the mean CCA was 125.4° and the mean distance of the odontoid tip to the Chamberlain's line was + 9.62 mm. In extension, the mean ADI was 1.46 mm (P = 0.29), the mean CCA was 142.2° (P < 0.01) and the mean distance of the odontoid tip to the Chamberlain's line was + 7.11 mm (P < 0.05). Four patients (40%) had facetary subluxation demonstrated in dynamic imaging, two of them with mobile subluxation (both underwent CVJ fixation). The other two patients with a fixed subluxation were not initially fixed. One patient with atlantoaxial assimilation and C23 fusion without initial facet subluxation developed a latter CVJ instability diagnosed with a dynamic CT scan. Patients with basilar invagination had a lower CCA variation compared to the whole group.

Conclusion: Craniometrical parameters, as well as the visualization of the facets location, may change significantly according to the neck position. Dynamic imaging can provide additional useful information to the diagnosis of CVJ instability. Future studies addressing the relationship between craniometrical changes and neck position are necessary.

Keywords: Basilar invagination; Chiari malformation; Craniovertebral junction; Dynamic imaging; Treatment.

Figure 1

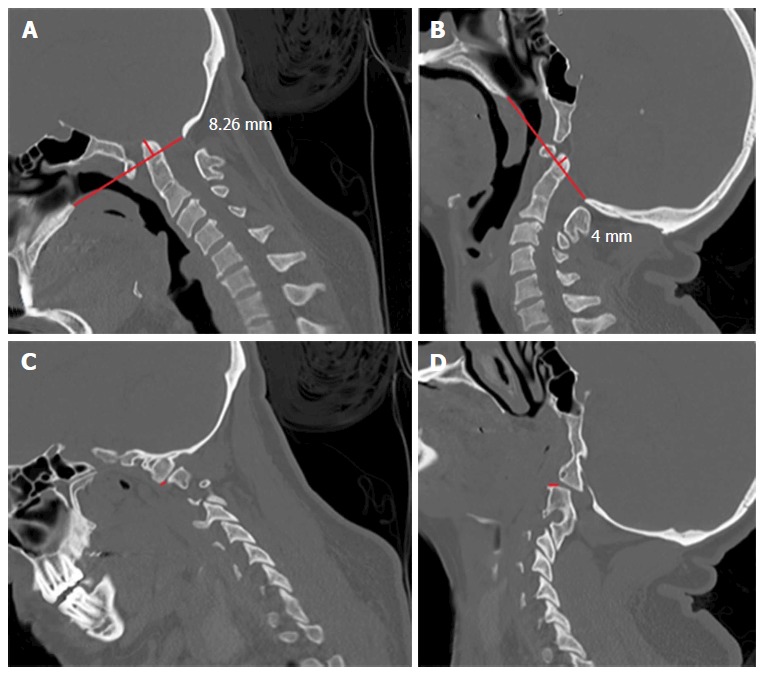

A 18-year-old woman with basilar invagination and tonsillar herniation of 7 mm. She also had atlas assimilation. A: Sagittal computed tomography (CT) scan in flexion shows the tip of the odontoid 8.26 mm above the Chamberlain’s line; B: Sagittal CT scan in extended position shows the tip of the odontoid 4 mm above the Chamberlain’s line; C: Sagittal CT scan showing anterior dislocation of the facet joint of C1 over C2 facetary of 2 mm; D: Sagittal CT scan showing posterior dislocation of the C1 facet joint over the facet of C2 of 3 mm, ranging 5 mm in dynamic exam. This patient underwent a craniocervical fusion concomitant to the posterior fossa decompression.

Figure 2

Dynamic sagittal computed tomography scan of 15-year-old boy, which had the diagnosis of a tonsilar herniation of 9.4 mm and basilar invagination. In both A and B positions, the facet dislocation of the C1 lateral mass posteriorly to the superior C2 joints was maintained (4 mm). We opted to perform only posterior fossa decompression without craniovertebral junction instrumentation, obtaining a good clinical improvement; C and D: Dynamic sagittal computed tomography scan imaging - a forty-six-year-old man, with tonsilar herniation of 7.44 mm. In both positions the facet dislocation of the C1 lateral mass over the C2 superior facet joint was 3.72 mm. We also performed only a posterior fossa decompression without fusion in this patient, with a good clinical outcome.

Figure 3

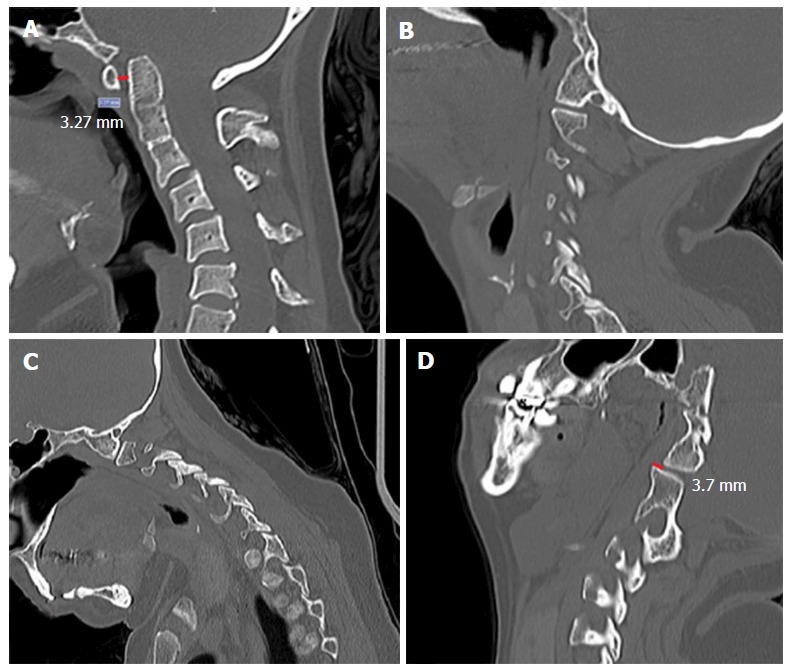

Forty-year-old woman with a tonsilar herniation of 5 mm and basilar invagination. Noted that she also had atlas assimilation and a congenital C23 fusion A, B and C: Pre-operative dynamic imaging, showing a atlanto-dental interval of 3.27 mm, but no signs of facet dislocation in flexion or in extension (B and C); D: Sagittal computed tomography scan obtained after some months after posterior fossa decompression showing an evident facet joints dislocation (the assimilated lateral mass of C1 was dislocated posteriorly over the superior facet joint of C2). She had some symptoms of dizziness and cervical pain when flexing the neck and an occipto-cervical fixation was proposed but the patient declined surgical treatment because she was not doing well with depression and mood disorders.
