Case Reports
. 2015 Jan 2;1(1):18-21.
doi: 10.1016/j.hrcr.2014.10.003. eCollection 2015 Jan.

Focal atrial fibrillation presenting in the origin of atrial tachycardia

Affiliations
Case Reports

Focal atrial fibrillation presenting in the origin of atrial tachycardia

Chin-Yu Lin et al. HeartRhythm Case Rep. .
No abstract available

Keywords: AF, atrial fibrillation; AT, atrial tachycardia; Atrial fibrillation; Atrial tachycardia; CS, coronary sinus; ECG, electrocardiogram; LA, left atrium; RA, right atrium; Radiofrequency ablation.

PubMed Disclaimer

Figures

Figure 1
Figure 1

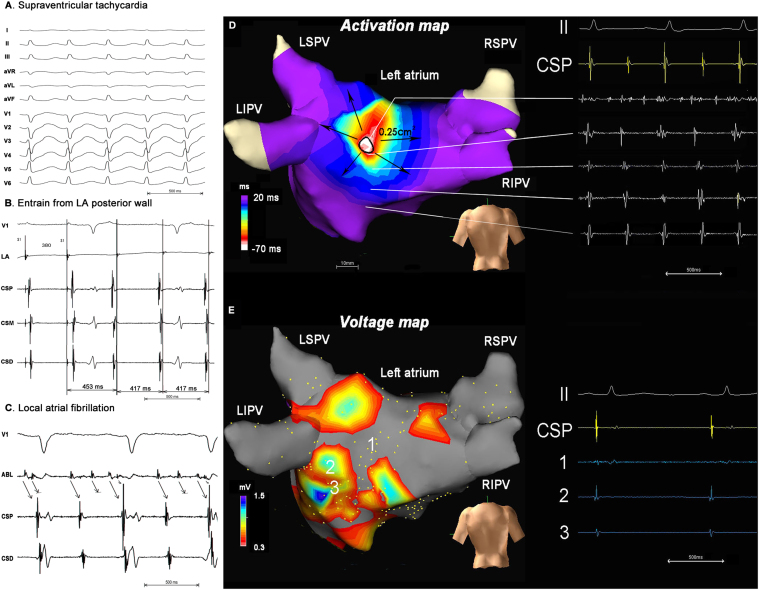

Electrocardiogram, intracardiac electrogram with entrainment, and 3-dimensional (3D) electroanatomic map of patient 1. A: The surface electrocardiogram. B: The electrogram of patient 1 shows atrial tachycardia. Entrainment was performed from the posterior wall of the LA with a postpacing interval of 453 ms. C: The electrogram recorded when the ablator tip in the atrial tachycardia origin site reveals fractionated irregular rhythm as atrial fibrillation with 2:1 and 3:1 conduction. D: The 3D atrial activation map reveals atrial activation starting rhythmically at a small area (0.25 cm2) from where it spread centrifugally (black arrows). The electrogram on the right side reveals a transition from atrial fibrillation in the central area to an organized atrial tachycardia. E: The 3D left atrial voltage map reveals a large low-voltage zone in the posterior wall. The electrogram on the right side reveals a local signal in sinus rhythm after ablation. ABL = tip of ablator; CS = coronary sinus; CSD = distal coronary sinus; CSM = middle coronary sinus; CSP = proximal coronary sinus; LA = left atrium; LIPV = left inferior pulmonary vein; LSPV = left superior pulmonary vein; RIPV = right inferior pulmonary vein; RSPV = right superior pulmonary vein.
Figure 2
Figure 2

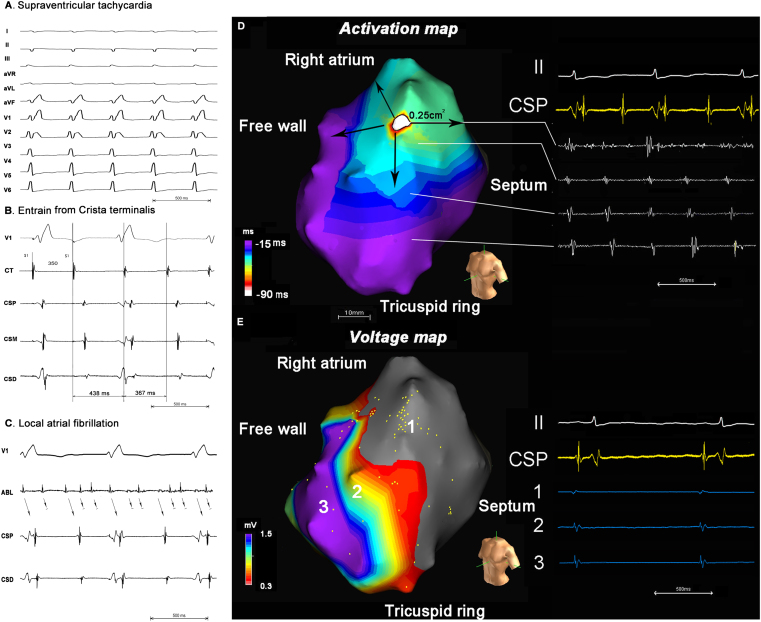

Electrocardiogram, intracardiac electrogram with entrainment, and 3-dimensional (3D) electroanatomic map of patient 2. A: The surface electrocardiogram. B: The electrogram of patient 2 shows atrial tachycardia. Entrainment was performed from the high crista terminalis with a postpacing interval of 438 ms. C: The electrogram recorded when the ablator tip in the atrial tachycardia origin site reveals fractionated irregular rhythm as atrial fibrillation with 2:1 and 3:1 conduction. D: The 3D atrial activation map reveals atrial activation starting rhythmically at a small area (0.25 cm2) from where it spreads centrifugally (black arrows). The electrogram on the right side reveals a transition from atrial fibrillation in the central area to an organized atrial tachycardia. E: The 3D right atrial voltage map reveals a moderate low-voltage zone in the septum. The electrogram on the right side reveals a local signal in sinus rhythm after ablation. ABL = tip of ablator; CS = coronary sinus; CSD = distal coronary sinus; CSM = middle coronary sinus; CSP = proximal coronary sinus; CT = crista terminalis; RA = right atrium

Similar articles

References

    1. Patel A., Markowitz S.M. Atrial tachycardia: mechanisms and management. Expert Rev Cardiovasc Ther. 2008;6:811–822. - PubMed
    1. Chen S.A., Chiang C.E., Yang C.J., Cheng C.C., Wu T.J., Wang S.P., Chiang B.N., Chang M.S. Sustained atrial tachycardia in adult patients: electrophysiological characteristics, pharmacological response, possible mechanisms, and effects of radiofrequency ablation. Circulation. 1994;90:1262–1278. - PubMed
    1. Chang H.Y., Lo L.W., Lin Y.J. Long-term outcome of catheter ablation in patients with atrial fibrillation originating from the superior vena cava. J Cardiovasc Electrophysiol. 2012;23:955–961. - PubMed
    1. Steven D., Roberts-Thomson K.C., Seiler J., Michaud G.F., John R.M., Stevenson W.G. Fibrillation in the superior vena cava mimicking atrial tachycardia. Circ Arrhythm Electrophysiol. 2009;2:e4–e7. - PubMed
    1. Shah D.C., Haissaguerre M., Jais P., Clementy J. High-resolution mapping of tachycardia originating from the superior vena cava: evidence of electrical heterogeneity, slow conduction, and possible circus movement reentry. J Cardiovasc Electrophysiol. 2002;13:388–392. - PubMed
