Comparative analysis of microbial diversity in two hot springs of Bakreshwar, West Bengal, India

Abstract

Various aspects of hot springs at Bakreshwar (Lat. 23°52'48″N; Long. 87°22'40″E) in West Bengal, India have been investigated since the middle of 20th century, but comprehending the complete diversity and the complexity of the microbial population therein has been in the continuing process. Some of these microorganisms are found to have immense industrial importance. Microbes generally exist in milieus of varying complexities and diversities. Attempting the usually employed cultivation-based techniques in experimentation with those microbes had confronted various limitations. To overcome these limitations a strategy based on high-throughput sequencing of 16S rRNA gene amplicon analysis was employed for studying the differential diversity and the detailed nature of microbial population of the two hot springs of Bakreshwar (54 °C & 65 °C). Paired-end libraries of amplified V-3 hyper-variable 16S rDNA fragments from sets of samples that varied in their contents, ranging from a single bacterium to highly complex communities were sequenced. The comparison revealed the differential aspects in the two hot spring waters; the samples at 54 °C showed the bacterial phylum Firmicutes (65.85%) and Synergistetes (27.24%) predominating and those from hot spring water at 65 °C showed the abundance of the phyla Firmicutes (96.10%) and Proteobacteria (3.36%). The presence of Archaea in the hot springs could not be ascertained.

Keywords: 16S rRNA; Hot springs; V-3.

Fig. 1

Flowchart representation of 16S library preparation protocol in different steps.

Fig. 2

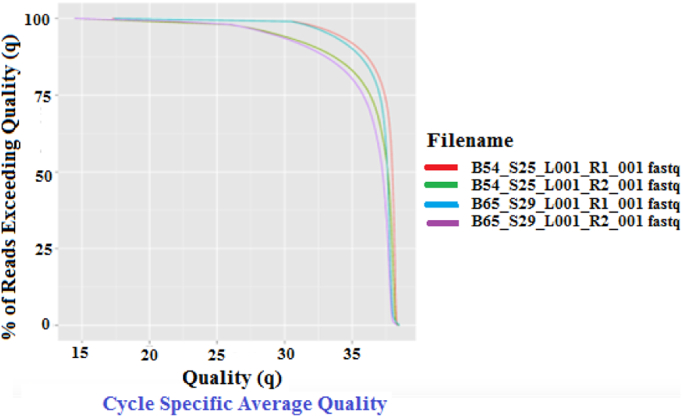

Read Quality Plot in Illumina MiSeq. This plot describes the average quality pattern by showing on the X-axis quality thresholds and on the Y-axis the percentage of reads that exceed that quality level.

Fig. 3

Amplification using V3 primers, overlapping reads merged to contigs & downstream analysis and visualization.

Fig. 4

Phylum level abundance in B54 and B65. (X-axis represents samples B54 and B65, Y-axis represents abundance of phylum, legend list of the phylums being represented on right side).

Fig. 5

A: Class distribution & abundance of B54 (hot spring 54 °C), distribution of class in R54, legend shows the different class in different representative colours. B: Same as Panel A but image generated from Krona. (For interpretation of the references to colour in this figure legend, the reader is referred to the web version of this article.)

Fig. 6

A: Class distribution & abundance of B65 (hot spring 65 °C), distribution of class in R65, legend shows the different class in different representative colours. B: Same as Panel A but image generated from Krona. (For interpretation of the references to colour in this figure legend, the reader is referred to the web version of this article.)
