Ultrasound-guided pericardiocentesis: a novel parasternal approach

Abstract

Objective: The aim of this study was to evaluate a novel pericardiocentesis technique using an in-plane parasternal medial-to-lateral approach with the use of a high-frequency probe in patients with cardiac tamponade.

Background: Echocardiography is pivotal in the diagnosis of pericardial effusion and tamponade physiology. Ultrasound guidance for pericardiocentesis is currently considered the standard of care. Several approaches have been described recently, which differ mainly on the site of puncture (subxiphoid, apical, or parasternal). Although they share the use of low-frequency probes, there is absence of complete control of needle trajectory and real-time needle visualization. An in-plane and real-time technique has only been described anecdotally.

Methods and results: A retrospective analysis of 11 patients (63% men, mean age: 37.7±21.2 years) presenting with cardiac tamponade admitted to the tertiary-care emergency department and treated with parasternal medial-to-lateral in-plane pericardiocentesis was carried out. The underlying causes of cardiac tamponade were different among the population. All the pericardiocentesis were successfully performed in the emergency department, without complications, relieving the hemodynamic instability. The mean time taken to perform the eight-step procedure was 309±76.4 s, with no procedure-related complications.

Conclusion: The parasternal medial-to-lateral in-plane pericardiocentesis is a new technique theoretically free of complications and it enables real-time monitoring of needle trajectory. For the first time, a pericardiocentesis approach with a medial-to-lateral needle trajectory and real-time, in-plane, needle visualization was performed in a tamponade patient population.

Fig. 1

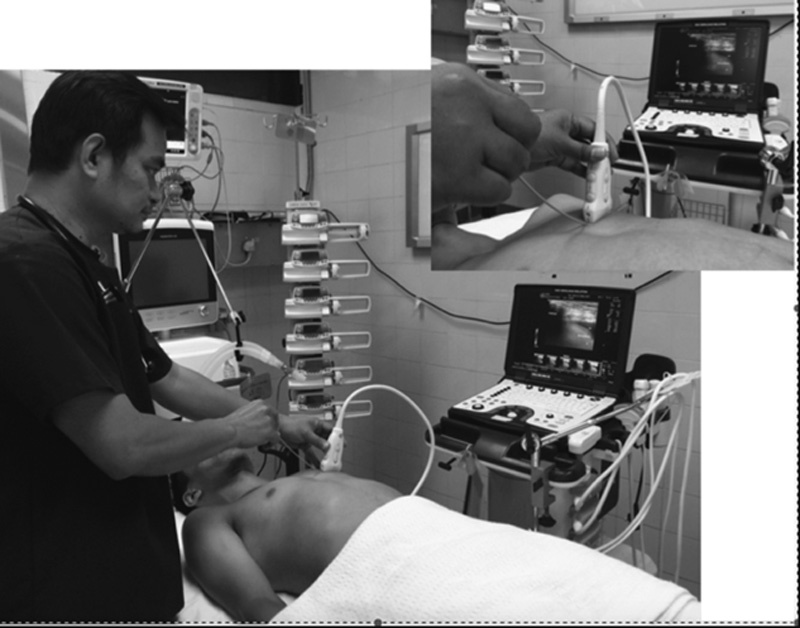

Ultrasound and patient position. The needle entry was inserted from medial-to-lateral on the patient’s left chest (small picture).

Fig. 2

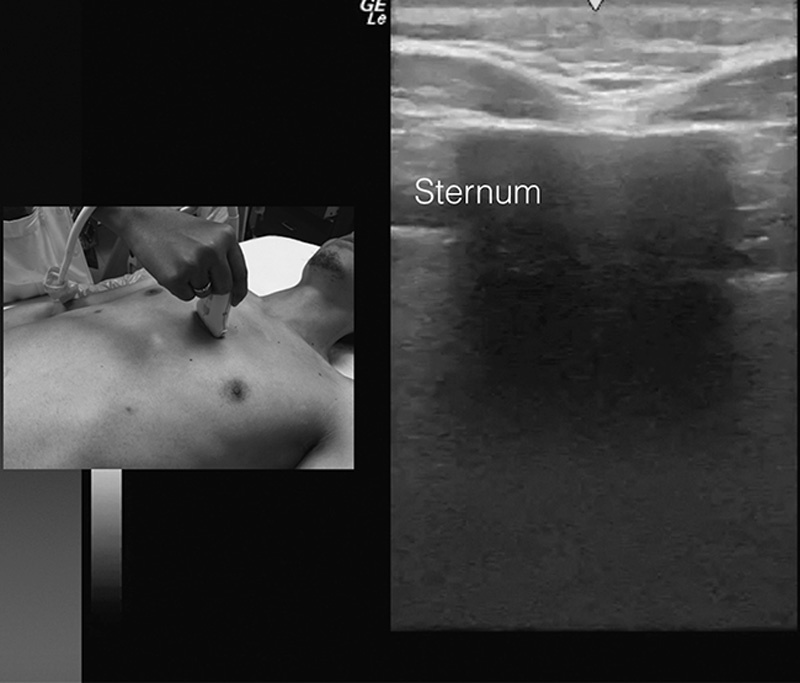

A high-frequency linear transducer was used to profile the transverse view of sternum bone.

Fig. 3

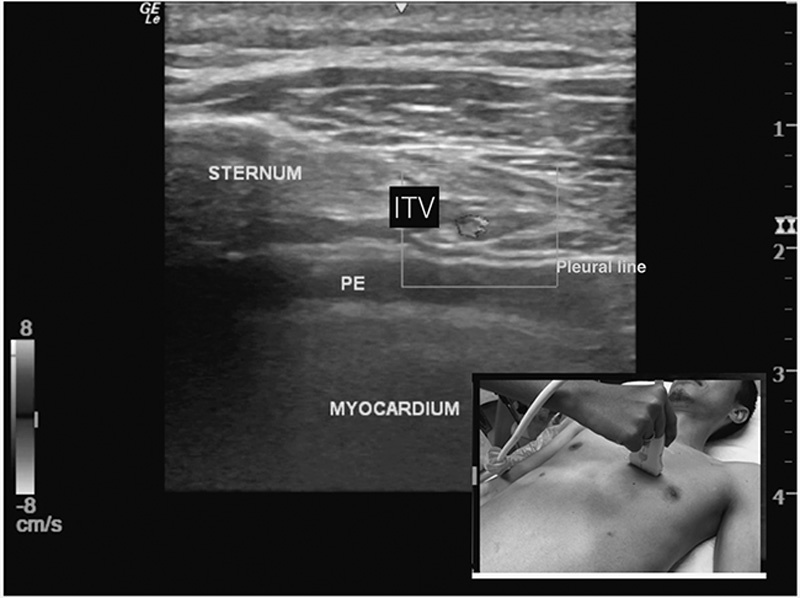

The transducer was then moved laterally to identify the internal thoracic artery vessel (ITV) interrogated with color Doppler and pleural line (with lung sliding), which is just lateral to the sternum. PE, pericardial effusion.

Fig. 4

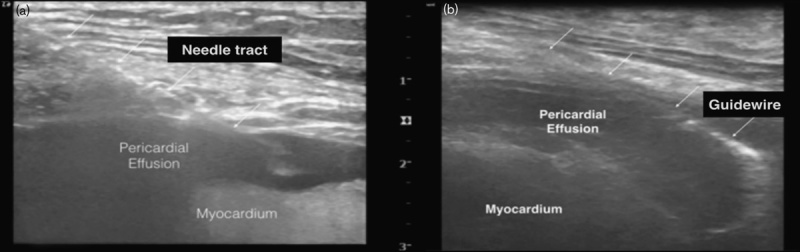

The needle tip was directed to penetrate the skin, intercostal muscle, and pericardial tissue under real-time ultrasound guidance (a) and a curved guide wire was advanced into the pericardial cavity (b).

Fig. 5

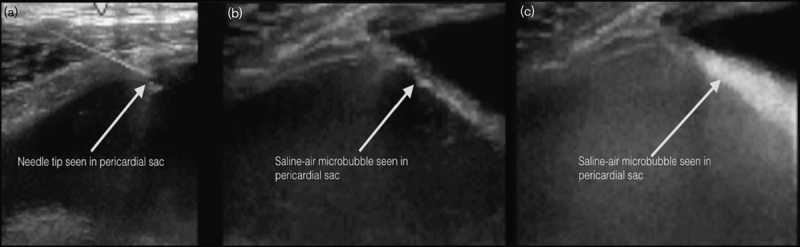

A parasternal sonographic image of the needle tip seen in the pericardial sac (a). A saline–air microbubble was then flushed through the needle, showing a ‘rocket flare’ appearance, which confirmed the needle tip placement in the pericardial space (a, c).
