. 2017:36:103-107.
doi: 10.1016/j.ijscr.2017.04.026. Epub 2017 May 15.

Capitellar fracture with bony avulsion of the lateral collateral ligament in a child: Case report

M Fuad  1 , A Elmhiregh  2 , A Motazedian  3 , M Bakdach  3
Affiliations

Capitellar fracture with bony avulsion of the lateral collateral ligament in a child: Case report

M Fuad et al. Int J Surg Case Rep. 2017.

Abstract

Introduction: Isolated capitellar fracture is a rare injury accounting for 1% of all elbow fractures Bryan and Morrey (1985) and Poynton et al. (1998). In children, a fall on an outstretched hand, before the fusion of the epiphysis, usually leads to lateral condyle physeal fractures. Very few cases of capitellar fractures in the paediatric population have been reported.

Presentation of case: Our patient, a 9-year-old girl presented with a capitellar fracture and lateral collateral ligament (LCL) avulsion of her left elbow. A type IV capitellar fracture, indicated by the double arc sign on the radiogram, was confirmed with 3-dimensional computed tomography. The patient underwent open reduction through a lateral approach and fixation with 2 Herbert's screws. The lateral collateral ligament (LCL) avulsion was repaired with 2 suture anchors. Early mobilization and rehabilitation were started soon after the surgery. Follow-up radiography showed union of the fracture with no signs of osteonecrosis.

Discussion: Capitellum fracture in children is easily overlooked due to its rarity. And hereby, meticulous history, clinical examination and proper radiological views with high index of suspicion is crucial in order diagnose these injuries. Our patient had type IV capitellar fracture with lateral collateral ligament avulsion. Principles of management of these intra articular fractures include accurate reduction, stable fixation and early mobilization. We used an extensile lateral approach to expose, reduce and fix the fracture. LCL avulsion was fixed with 2 suture anchors.

Conclusion: Capitellum fractures are rare injuries in children. Careful evaluation and proper stable fixation are the cornerstones of good functional results.

Keywords: Capitellum; Case report; Fracture; Lateral collateral ligament avulsion; Paediatric.

PubMed Disclaimer

Figures

Fig. 1
Fig. 1
Plane xray and CT scan reconstruction view of the child’s elbow showing the capitillar injury.
Fig 2
Fig 2
Clinical picture of intra-operative finding and postoperative radiograph.
Fig. 3
Fig. 3

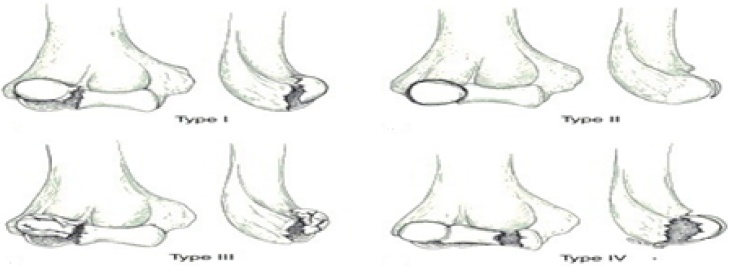

Bryan and Morgan classification.
See this image and copyright information in PMC

Similar articles

See all similar articles

Cited by

References

    1. Bryan R., Morrey B. Fractures of the distal humerus. In: Morrey B., editor. The Elbow and Its Disorders. WB Saunders; Philadelphia: 1985. pp. 325–333.
    1. Dubberley J.H., Faber K.J., Macdermid J.C., Patterson S.D., King G.J. Outcome after open reduction and internal fixation of capitellar and trochlear fractures. J. Bone Jt. Surg. 2006;88:46–54. - PubMed
    1. Pogliacomi F., Concari G., Vaienti E. Hahn-Steinthal fracture: report of two cases. Acta Biomed. 2005;76:178–184. - PubMed
    1. Clough T.M., Jago E.R., Sidhu D.P. Fractures of the capitellum: a new method of fixation using a maxillofacial plate. Clin. Orthop. Relat. Res. 2001;(March (384)):232–236. - PubMed
    1. Marion J., Faysse R. Fracture of the capitellum. Rev. Chir. Orthop. 1962;48:484–490.
