Observational Study
. 2017 Mar 30;48(1):25-31.

Variability between Clarke's angle and Chippaux-Smirak index for the diagnosis of flat feet

Cristina Gonzalez-Martin  1 , Salvador Pita-Fernandez  2 , Teresa Seoane-Pillado  2 , Beatriz Lopez-Calviño  2 , Sonia Pertega-Diaz  2 , Vicente Gil-Guillen  3
Affiliations
Observational Study

Variability between Clarke's angle and Chippaux-Smirak index for the diagnosis of flat feet

Cristina Gonzalez-Martin et al. Colomb Med (Cali). .

Abstract
in English, Spanish

Background: The measurements used in diagnosing biomechanical pathologies vary greatly. The aim of this study was to determine the concordance between Clarke's angle and Chippaux-Smirak index, and to determine the validity of Clarke's angle using the Chippaux-Smirak index as a reference.

Methods: Observational study in a random population sample (n= 1,002) in A Coruña (Spain). After informed patient consent and ethical review approval, a study was conducted of anthropometric variables, Charlson comorbidity score, and podiatric examination (Clarke's angle and Chippaux-Smirak index). Descriptive analysis and multivariate logistic regression were performed.

Results: The prevalence of flat feet, using a podoscope, was 19.0% for the left foot and 18.9% for the right foot, increasing with age. The prevalence of flat feet according to the Chippaux-Smirak index or Clarke's angle increases significantly, reaching 62.0% and 29.7% respectively. The concordance (kappa I) between the indices according to age groups varied between 0.25-0.33 (left foot) and 0.21-0.30 (right foot). The intraclass correlation coefficient (ICC) between the Chippaux-Smirak index and Clarke's angle was -0.445 (left foot) and -0.424 (right foot). After adjusting for age, body mass index (BMI), comorbidity score and gender, the only variable with an independent effect to predict discordance was the BMI (OR= 0.969; 95% CI: 0.940-0.998).

Conclusion: There is little concordance between the indices studied for the purpose of diagnosing foot arch pathologies. In turn, Clarke's angle has a limited sensitivity in diagnosing flat feet, using the Chippaux-Smirak index as a reference. This discordance decreases with higher BMI values.

Introducción: Existe una gran variabilidad en las mediciones para el diagnóstico de la patología biomecánica. El objetivo de este estudio fue determinar la concordancia entre el ángulo de Clarke y el índice de Chippaux-Smirak, para determinar la validez del ángulo de Clarke utilizando como referencia el índice de Chippaux-Smirak.

Métodos: Se realizó un estudio observacional en una muestra aleatoriamente seleccionada (n=1,002) en A Coruña (España). Tras el consentimiento informado del paciente y la aprobación del comité de ética, se estudiaron variables, antropométricas, índice de comorbilidad de Charlson y un examen podológico (ángulo de Clarke, índice de Chippaux-Smirak). Se realizó un estudio descriptivo y un análisis multivariado de regresión logística.

Resultados: La prevalencia de pie plano utilizando el podoscopio fue de 19.0% (pie izquierdo) y 18.9% (pie derecho), incrementándose con la edad.La prevalencia de pie plano según el índice Chippaux-Smirak o el ángulo de Clarke se incrementan considerablemente llegando a 62.0% y 29.7%.La concordancia (kappa I) entre los índices según grupos de edad oscila entre 0.25-0.33 (pie izquierdo) y 0.21-0.30 (pie derecho). El coeficiente de correlación intraclase (CCI) entre el índice de Chippaux-Smirak y el ángulo de Clarke es -0.445 (pie izquierdo) y 0.424 (pie derecho). Tras ajustar por edad, índice de masa corporal (IMC), score de comorbilidad y sexo la única variable con un efecto independiente para predecir discordancia es el IMC (OR= 0.969; IC 95%: 0.940-0.998).

Conclusiones: La concordancia entre los índices estudiados para el diagnóstico de la patología del arco plantar es reducida. Existe a su vez una reducida sensibilidad del ángulo de Clarke para el diagnóstico de pie plano, utilizando como referencia el índice de Chippaux-Smirak. Esta discordancia disminuye con valores más altos de IMC.

Keywords: Anthropometry; Chippaux-Smirak index; Clarke's angle; Flatfoot; Foot; Footprint; Pedigraph; Podiatry; Sensitivity and Specificity.

PubMed Disclaimer

Conflict of interest statement

Conflicts of interests: The authors declare that they have no competing interests

Figures

Figure 1

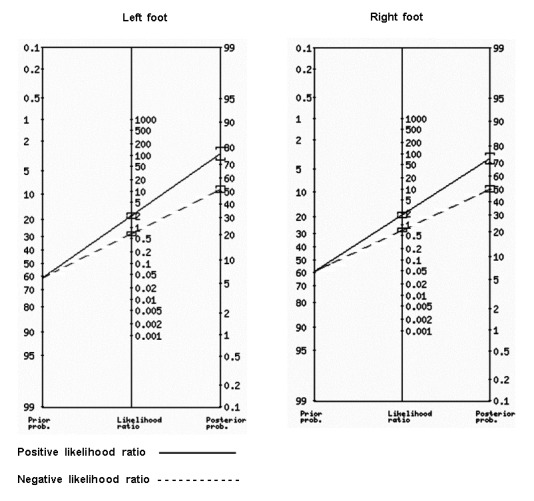

Figure 1. Positive and negative likelihood ratio for the diagnosis of flat feet by foot
See this image and copyright information in PMC

References

    1. Hajjaj FM, Salek MS, Basra MK, Finlay AY. Non-clinical influences on clinical decision-making a major challenge to evidence-based practice. J R Soc Med. 2010;103(5):178–187. - PMC - PubMed
    1. Rome K, Ashford RL, Evans A. Non-surgical interventions for paediatric pes planus. Cochrane Database Syst Rev. 2010;2010(7):CD006311–CD006311. - PubMed
    1. Schwartz L, Britten RH, Thompson LR. Studies in physical development and posture. I. The effect of exercise on the physical condition and development of adolescent boys. Public Health Bulletin. 1928;179:124–124.
    1. Shiang TY, Lee SH, Lee SJ, Chu WC. Evaluating different footprint parameters as a predictor of arch height. IEEE Eng Med Biol Mag. 1998;17(6):62–66. - PubMed
    1. Xiong S, Goonetilleke RS, Witana CP, Weerasinghe TW, Au EY. Foot arch characterization a review, a new metric, and a comparison. J Am Podiatr Med Assoc. 2010;100(1):14–24. - PubMed
