. 2017 Jun 23;13(1):15.
doi: 10.1186/s13005-017-0149-x.

Facial soft tissue response to maxillo-mandibular advancement in obstructive sleep apnea syndrome patients

Julio Cifuentes  1 , Christian Teuber  2 , Alfredo Gantz  1 , Ariel Barrera  1 , Gholamreza Danesh  3 , Nicolas Yanine  1 , Carsten Lippold  4
Affiliations

Facial soft tissue response to maxillo-mandibular advancement in obstructive sleep apnea syndrome patients

Julio Cifuentes et al. Head Face Med. .

Abstract

Background: Facial profile soft tissue changes after orthognathic surgery are crucial for surgery success. This retrospective study evaluated soft tissue changes after maxillo-mandibular Advancement and counter clockwise rotation surgery in obstructive sleep apnea syndrome patients.

Methods: Thirty-seven obstructive sleep apnea syndrome patients (30 male, 7 female, mean age 35.8 years) whose underwent maxillo-mandibular-advancement and counter clockwise rotation surgery were studied after two intervals of time, presurgical, postsurgical and follow up (1–6 months and 1–5 years) using Dolphing Imaging Software. The soft tissue changes that were evaluated included Glabela, nasal projection, Subnasale, superior incisor, superior lip, inferior incisor, inferior lip, soft tissue B’ point and soft tissue Pogonion. Points were measured from true vertical line on the horizontal plane according to Arnett soft tissue profile analysis. Wilcoxon test was applied for testing differences between T0 (pre surgical), T1 (1–6 months postsurgical) and T2 (1–5 years postsurgical).

Results: Cephalometric points changed to more aesthetic parameters. The largest advancements took place in the mandible, due to patients’ anatomic characteristics and treatment planning, whose were measured at cephalometric points B′ (9,05 mm) and Pog’ (11,92 mm) at T0–T2. In all patients aesthetics goals were accomplished.

Conclusion: This study showed that maxillo-mandibular advancement and counter clockwise rotation surgery is an effective treatment for OSAS, with good aesthetic results.

Keywords: Facial soft tissue change; Maxillo-Mandibular Advancement; Obstructive sleep apnoea syndrome.

PubMed Disclaimer

Figures

Fig. 1
Fig. 1
Extraoral photograph of a sample patient before maxillo-mandibular advancement surgery
Fig. 2
Fig. 2
Lateral cephalograph of a sample patient before maxillo-mandibular advancement surgery
Fig. 3
Fig. 3
Extraoral photograph of a sample patient after maxillo-mandibular advancement surgery
Fig. 4
Fig. 4
Lateral cephalograph of a sample patient after maxillo-mandibular advancement surgery
Fig. 5
Fig. 5

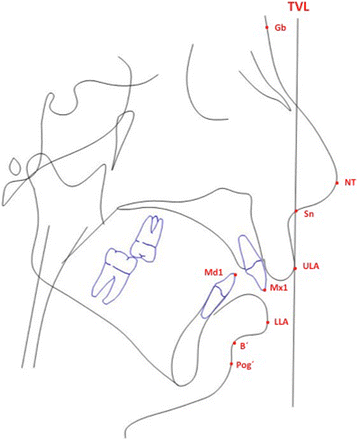

Facial lateral soft tissue cephalometric anaylsis according to Arnett et al. used in this study [11]
Fig. 6
Fig. 6
Sample of a cephamolmetric radiograph of the lateral soft tissue facial analysis
See this image and copyright information in PMC

References

    1. Guilleminault C, Tilkian A, Dement WC. The sleep apnea syndromes. Annu Rev Med. 1976;27:465–484. doi: 10.1146/annurev.me.27.020176.002341. - DOI - PubMed
    1. Schendel S, Powell N, Jacobson R. Maxillary, mandibular, and chin advancement: treatment planning based on airway anatomy in obstructive sleep apnea. J Oral Maxillofac Surg. 2011;69:663–676. doi: 10.1016/j.joms.2010.11.010. - DOI - PubMed
    1. National Commission on Sleep Disorders Research. Report of the National Commission on Sleep Disorders Research. Superintendent of Documents, US Government Printing Office, Washington, DC; 1992 (Department of Health and Human Services Publication 92).
    1. Caples SM, Rowley JA, Prinsell JR, Pallanch JF, Elamin MB, Katz SG, et al. Surgical modifications of the upper airway for obstructive sleep apnea in adults: a systematic review and meta-analysis. Sleep Med Rev. 2010;33:1396–1407. - PMC - PubMed
    1. Holty JE, Guilleminault C. Maxillomandibular advancement for the treatment of obstructive sleep apnea: a systematic review and meta-analysis. Sleep Med Rev. 2010;14:287–297. doi: 10.1016/j.smrv.2009.11.003. - DOI - PubMed
