. 2017 Aug 23;18(1):89.
doi: 10.1186/s10194-017-0799-x.

Altered insula-default mode network connectivity in fibromyalgia: a resting-state magnetoencephalographic study

Fu-Jung Hsiao  1   2 , Shuu-Jiun Wang  1   2   3   4 , Yung-Yang Lin  1   2   3   4 , Jong-Ling Fuh  1   3   4 , Yu-Chieh Ko  3   5 , Pei-Ning Wang  1   3   4 , Wei-Ta Chen  6   7   8   9
Affiliations

Altered insula-default mode network connectivity in fibromyalgia: a resting-state magnetoencephalographic study

Fu-Jung Hsiao et al. J Headache Pain. .

Abstract

Background: Fibromyalgia (FM) is a disabling chronic pain syndrome with unknown pathophysiology. Functional magnetic resonance imaging studies on FM have suggested altered brain connectivity between the insula and the default mode network (DMN). However, this connectivity change has not been characterized through direct neural signals for exploring the embedded spectrotemporal features and the pertinent clinical relevance.

Methods: We recorded the resting-state magnetoencephalographic activities of 28 patients with FM and 28 age- and sex-matched controls, and analyzed the source-based functional connectivity between the insula and the DMN at 1-40 Hz by using the minimum norm estimates and imaginary coherence methods. We also measured the connectivity between the DMN and the primary visual (V1) and somatosensory (S1) cortices as intrapatient negative controls. Connectivity measurement was further correlated with the clinical parameters of FM.

Results: Compared with the controls, patients with FM reported more tender points (15.2±2.0 vs. 5.9±3.7) and higher total tenderness score (TTS; 29.1±7.0 vs. 7.7±5.5; both p < 0.001); they also had decreased insula-DMN connectivity at the theta band (4-8 Hz; left, p = 0.007; right, p = 0.035), but displayed unchanged V1-DMN and S1-DMN connectivity (p > 0.05). When patients with FM and the controls were combined together, the insula-DMN theta connectivity was negatively correlated with the number of tender points (left insula, r = -0.428, p = 0.001; right insula, r = -0.4, p = 0.002) and TTS score (left insula, r = -0.429, p = 0.001; right insula, r = -0.389, p = 0.003). Furthermore, in patients with FM, the right insula-DMN connectivity at the beta band (13-25 Hz) was negatively correlated with the number of tender points (r = -0.532, p = 0.004) and TTS (r = -0.428, p = 0.023), and the bilateral insula-DMN connectivity at the delta band (1-4 Hz) was negatively correlated with FM Symptom Severity (left: r = -0.423, p = 0.025; right: r = -0.437, p = 0.020) and functional disability (Fibromyalgia Impact Questionnaire; left: r = -0.415, p = 0.028; right: r = -0.374, p = 0.050).

Conclusions: We confirmed the frequency-specific reorganization of the insula-DMN connectivity in FM. The clinical relevance of this connectivity change may warrant future studies to elucidate its causal relationship and potential as a neurological signature for FM.

Keywords: Default mode network; Fibromyalgia; Functional connectivity; Insula; Magnetoencephalography (MEG); Resting state.

PubMed Disclaimer

Conflict of interest statement

Competing interests

FJ Hsiao, YY Lin, YC Ko, PN Wang and WT Chen report no disclosures. SJ Wang has served on the advisory boards of Allergan, and Eli Lilly Taiwan. He has received honoraria as a moderator from local companies (Taiwan branches) of Pfizer, Eli Lilly and Esai. JL Fuh is a member of the scientific advisory board of Novartis, and has received research support from the Taiwan National Science Council and Taipei-Veterans General Hospital.

Publisher’s Note

Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Figures

Fig. 1
Fig. 1
Functional connectivity between the insula (Ins) and default mode network (DMN) at the delta (1–4 Hz), theta (4–8 Hz), alpha (8–13 Hz), beta (13–25 Hz), and gamma (25–40 Hz) bands, assessed using resting-state magnetoencephalography brain activity and compared between controls and patients with fibromyalgia (FM). L, left; R, right; MF, medial frontal; LT, lateral temporal; MT, medial temporal; PCC, posterior cingulate cortex; IP, inferior parietal; PCu, precuneus. *, p < 0.05; **, p < 0.01
Fig. 2
Fig. 2
Correlation of the insula–default mode network (DMN) connectivity at the theta band (4–8 Hz) with the (a) number of tender points (0–18) and (b) total tenderness scores (0–54) in all participants (patients with FM and the controls)
Fig. 3
Fig. 3

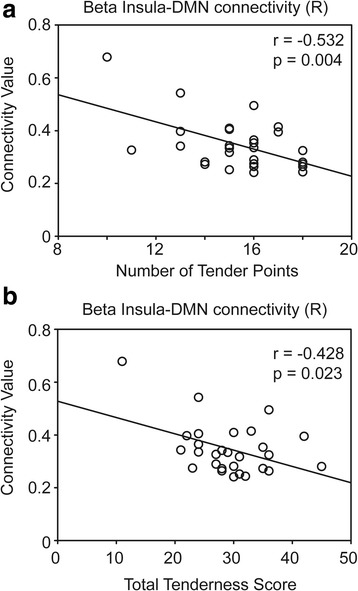

Correlation of the right insula–default mode network (DMN) connectivity at the beta band (13–25 Hz) with the (a) number of tender points (0–18) and (b) total tenderness scores (0–54) of patients with FM
Fig. 4
Fig. 4
Correlation of insula–default mode network (DMN) connectivity at the delta band (1–4 Hz) with the (a) Symptom Severity Scale (0–12) and (b) revised Fibromyalgia Impact Questionnaire (FIQR; 0–100) scores
See this image and copyright information in PMC

References

    1. Hauser W, Ablin J, Fitzcharles MA, Littlejohn G, Luciano JV, Usui C, Walitt B. Fibromyalgia. Nat Rev Dis Primers. 2015;1:15022. doi: 10.1038/nrdp.2015.22. - DOI - PubMed
    1. Wolfe F, Clauw DJ, Fitzcharles MA, Goldenberg DL, Hauser W, Katz RS, Mease P, Russell AS, Russell IJ, Winfield JB. Fibromyalgia criteria and severity scales for clinical and epidemiological studies: a modification of the ACR preliminary diagnostic criteria for fibromyalgia. J Rheumatol. 2011;38:1113–1122. doi: 10.3899/jrheum.100594. - DOI - PubMed
    1. Cook DB, Lange G, Ciccone DS, Liu WC, Steffener J, Natelson BH. Functional imaging of pain in patients with primary fibromyalgia. J Rheumatol. 2004;31:364–378. - PubMed
    1. Gracely RH, Petzke F, Wolf JM, Clauw DJ. Functional magnetic resonance imaging evidence of augmented pain processing in fibromyalgia. Arthritis Rheum. 2002;46:1333–1343. doi: 10.1002/art.10225. - DOI - PubMed
    1. Lopez-Sola M, Pujol J, Wager TD, Garcia-Fontanals A, Blanco-Hinojo L, Garcia-Blanco S, Poca-Dias V, Harrison BJ, Contreras-Rodriguez O, Monfort J, Garcia-Fructuoso F, Deus J. Altered functional magnetic resonance imaging responses to nonpainful sensory stimulation in fibromyalgia patients. Arthritis Rheumatol. 2014;66:3200–3209. doi: 10.1002/art.38781. - DOI - PMC - PubMed
