. 2017 Jul-Sep;17(3):301-309.
doi: 10.4103/jips.jips_79_17.

A comparative study to check fracture strength of provisional fixed partial dentures made of autopolymerizing polymethylmethacrylate resin reinforced with different materials: An in vitro study

Parikshit Gupt  1 , Archana Nagpal  2 , Rupandeep Kaur Samra  2 , Ramit Verma  2 , Jasjeet Kaur  2 , Surbhi Abrol  2
Affiliations

A comparative study to check fracture strength of provisional fixed partial dentures made of autopolymerizing polymethylmethacrylate resin reinforced with different materials: An in vitro study

Parikshit Gupt et al. J Indian Prosthodont Soc. 2017 Jul-Sep.

Abstract

Aim: The purpose of the study was to evaluate the fracture strength of provisional fixed partial dentures made of autopolymerizing polymethylmethacrylate (PMMA) resin using different types of reinforcement materials to determine the best among them.

Materials and methods: Fifty samples were made (10 samples for each group) with autopolymerizing PMMA resin using reinforcement materials (stainless steel wire: looped and unlooped and glass fiber: loose and unidirectional) as 3-unit posterior bridge. The test specimens were divided into five groups depending on the reinforcing material as Group I, II, III, IV, and V; Group I: PMMA unreinforced (control group), Group II: PMMA reinforced with stainless steel wire (straight ends), Group III: PMMA reinforced with stainless steel wire (looped ends), Group IV: PMMA reinforced with unidirectional glass fibers, and Group V: PMMA reinforced with randomly distributed glass fibers. Universal testing machine was used to evaluate and compare the fracture strength of samples. Comparison of mean ultimate force and ultimate stress was done employing one-way analysis of variance and Tukey's post hoc tests.

Results: The highest and lowest mean ultimate force and mean ultimate stress were of Group IV and I, respectively. Tukey's post hoc honestly significant difference multiple comparison for mean ultimate force and stress shows the increase in strength to be statistically significant (P < 0.05) except for the samples reinforced with randomly distributed glass fibers (P > 0.05).

Conclusion: Unidirectional glass fibers showed the maximum strength, which was comparable to mean values of both stainless steel wire groups. Low cost and easy technique of using stainless steel wire make it the material of choice over the unidirectional glass fiber for reinforcement in nonesthetic areas where high strength is required.

Keywords: Autopolymerizing polymethylmethacrylate resin; fracture; glass fibers; stress stainless steel.

PubMed Disclaimer

Conflict of interest statement

There are no conflicts of interest.

Figures

Figure 1
Figure 1
Master metal die with 3-unit metal bridge
Figure 2
Figure 2
Wax pattern of master die with rests on buccal and lingual side
Figure 3
Figure 3

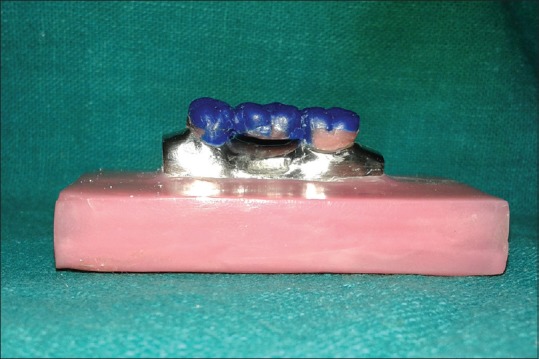

Wax pattern of 3-unit bridge on master die
Figure 4
Figure 4
Stainless steel wire configuration with straight ends
Figure 5
Figure 5
Stabilizing stainless steel wire with straight ends using autopolymerizing polymethylmethacrylate resin
Figure 6
Figure 6
Stainless steel wire configuration with looped ends
Figure 7
Figure 7

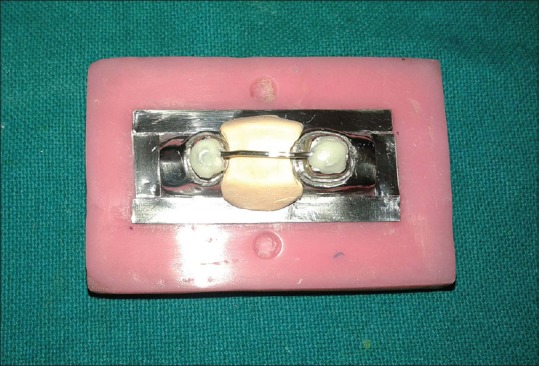

Stabilizing stainless steel wire with looped ends using autopolymerizing polymethylmethacrylate resin
Figure 8
Figure 8
Unidirectional glass fibers treated with monomer
Figure 9
Figure 9
Stabilizing unidirectional glass fiber using autopolymerizing polymethylmethacrylate resin
Figure 10
Figure 10
Loose glass fibers treated with silane coupling agent
Figure 11
Figure 11
Loose glass fibers treated with monomer
Figure 12
Figure 12
Samples of all groups of autopolymerizing polymethylmethacrylate resin
Figure 13
Figure 13
Test sample loaded under universal testing machine
Graph 1
Graph 1
Graphical representation of mean ultimate force in various groups
Graph 2
Graph 2
Graphical representation of mean ultimate stress in various groups
See this image and copyright information in PMC

References

    1. Viswambaran M, Kapri A, D’Souza D, Kumar M. An evaluation of fracture resistance of interim fixed partial denture fabricated using polymethylmethacrylate and reinforced by different fibres for its optimal placement: An in vitro study. Med J Armed Forces India. 2011;67:343–7. - PMC - PubMed
    1. Cheng CJ, Lin CL, Shan YF. Multifactorial analysis of variables influencing the fracture strength of repair joints for provisional restorative materials using the statistically based Taguchi method. J Dent Sci. 2010;5:90–9.
    1. Alla RK, Sajjan S, Alluri VR, Ginjupalli K, Upadhya N. Influence of fiber reinforcement on the properties of denture base resins. J Biomater Nanobiotechnol. 2013;4:91–7.
    1. Vojdani M, Khaledi AA. Transverse strength of reinforced denture base resin with metal wire and e-glass fibers. J Dent. 2006;3:167–72.
    1. Vallittu PK, Lassila VP. Reinforcement of acrylic resin denture base material with metal or fibre strengtheners. J Oral Rehabil. 1992;19:225–30. - PubMed
