Correlative mass spectrometry imaging, applying time-of-flight secondary ion mass spectrometry and atmospheric pressure matrix-assisted laser desorption/ionization to a single tissue section

Abstract

Rationale: Mass spectrometry imaging (MSI) is a powerful tool for mapping the surface of a sample. Time-of-flight secondary ion mass spectrometry (TOF-SIMS) and atmospheric pressure matrix-assisted laser desorption/ionization (AP-MALDI) offer complementary capabilities. Here, we present a workflow to apply both techniques to a single tissue section and combine the resulting data for the example of human colon cancer tissue.

Methods: Following cryo-sectioning, images were acquired using the high spatial resolution (1 μm pixel size) provided by TOF-SIMS. The same section was then coated with a para-nitroaniline matrix and images were acquired using AP-MALDI coupled to an Orbitrap mass spectrometer, offering high mass resolution, high mass accuracy and tandem mass spectrometry (MS/MS) capabilities. Datasets provided by both mass spectrometers were converted into the open and vendor-independent imzML file format and processed with the open-source software MSiReader.

Results: The TOF-SIMS and AP-MALDI mass spectra show strong signals of fatty acids, cholesterol, phosphatidylcholine and sphingomyelin. We showed a high correlation between the fatty acid ions detected with TOF-SIMS in negative ion mode and the phosphatidylcholine ions detected with AP-MALDI in positive ion mode using a similar setting for visualization. Histological staining on the same section allowed the identification of the anatomical structures and their correlation with the ion images.

Conclusions: This multimodal approach using two MSI platforms shows an excellent complementarity for the localization and identification of lipids. The spatial resolution of both systems is at or close to cellular dimensions, and thus spatial correlation can only be obtained if the same tissue section is analyzed sequentially. Data processing based on imzML allows a real correlation of the imaging datasets provided by these two technologies and opens the way for a more complete molecular view of the anatomical structures of biological tissues.

Figure 1

Workflow for correlative mass spectrometry imaging [Color figure can be viewed at wileyonlinelibrary.com]

Figure 2

TOF‐SIMS mass spectra in positive ion mode (A) and negative ion mode (B). AP‐MALDI‐MS mass spectrum in positive ion mode in a mass range of m/z 700–900 (C) and AP‐MALDI‐MS/MS product ion spectrum of m/z 741.53061 assigned to [SM(34:1) + K]⁺ with the characteristic product ions also shown (D). The lipids identified were assigned based on accurate mass. RMS values were calculated for AP‐MALDI acquisition

Figure 3

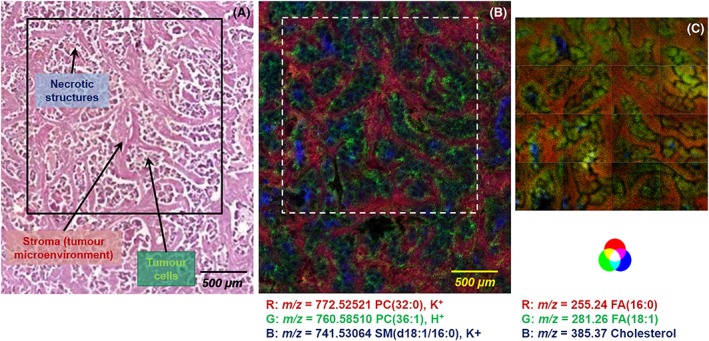

Human colon cancer tissue section. Optical image of the infiltrated submucosa corresponding to the region imaged by AP‐MALDI‐MS. The black square corresponds to the region imaged by TOF‐SIMS (A). AP‐MALDI‐MS image RGB overlay in positive ion mode: [PC(32:0) + K]⁺ at m/z 772.52521 ± 0.31 ppm (red), [PC(36:1) + H]⁺ at m/z 760.58510 ± 0.27 ppm (green) and [SM(d18:1/16:0) + K]⁺ at m/z 741.51061 ± 0.20 ppm (blue) (B). Overlay of adjacent juxtaposition of 16 TOF‐SIMS images in negative ion mode in the RGB system: carboxylates [FA(16:0) − H]⁻ at m/z 255.24 (red) and [FA(18:1) − H]⁻ at m/z 281.26 (green), and cholesterol [C₂₇H₄₇O − H]⁻ at m/z 385.37 (blue) (C) [Color figure can be viewed at wileyonlinelibrary.com]

Figure 4

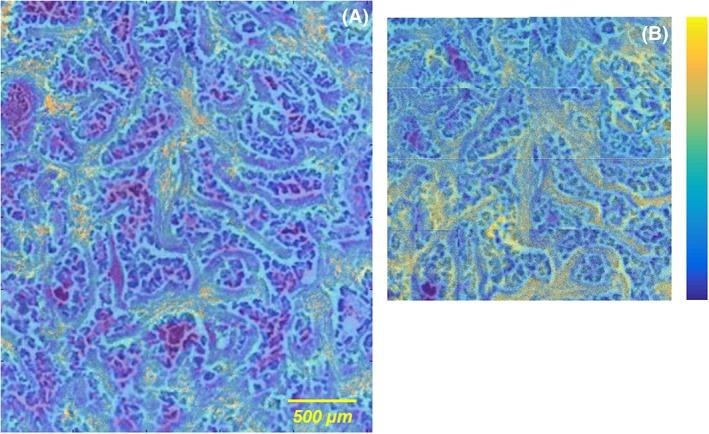

Co‐registration of hematoxylin and eosin staining with the AP‐MALDI ion image of the [PC(32:0) + K]⁺ (A) and the TOF‐SIMS ion image of the [FA(16:0) − H]⁻ (B) using the “parula” colormap [Color figure can be viewed at wileyonlinelibrary.com]
