. 2017 Nov 7:15:1035-1042.
doi: 10.1016/j.dib.2017.10.071. eCollection 2017 Dec.

Experimental data on load test and performance parameters of a LENZ type vertical axis wind turbine in open environment condition

Seralathan Sivamani  1 , Micha Premkumar T  1 , Mohammed Sohail  1 , Mohan T  1 , Hariram V  1
Affiliations

Experimental data on load test and performance parameters of a LENZ type vertical axis wind turbine in open environment condition

Seralathan Sivamani et al. Data Brief. .

Abstract

Performance and load testing data of a three bladed two stage LENZ type vertical axis wind turbine from the experiments conducted in an open environment condition at Hindustan Institute of Technology and Science, Chennai (location 23.2167°N, 72.6833°E) are presented here. Low-wind velocity ranging from 2 to 11 m/s is available everywhere irrespective of climatic seasons and this data provides the support to the researchers using numerical tool to validate and develop an enhanced Lenz type design. Raw data obtained during the measurements are processed and presented in the form so as to compare with other typical outputs. The data is measured at different wind speeds prevalent in the open field condition ranging from 3 m/s to 9 m/s.

Keywords: Lenz type; Open environment measurement; Performance; Two-stage; Vertical axis wind turbine.

PubMed Disclaimer

Figures

Fig. 1
Fig. 1
Dimensional detail of the Lenz type airfoil blade.
Fig. 2
Fig. 2

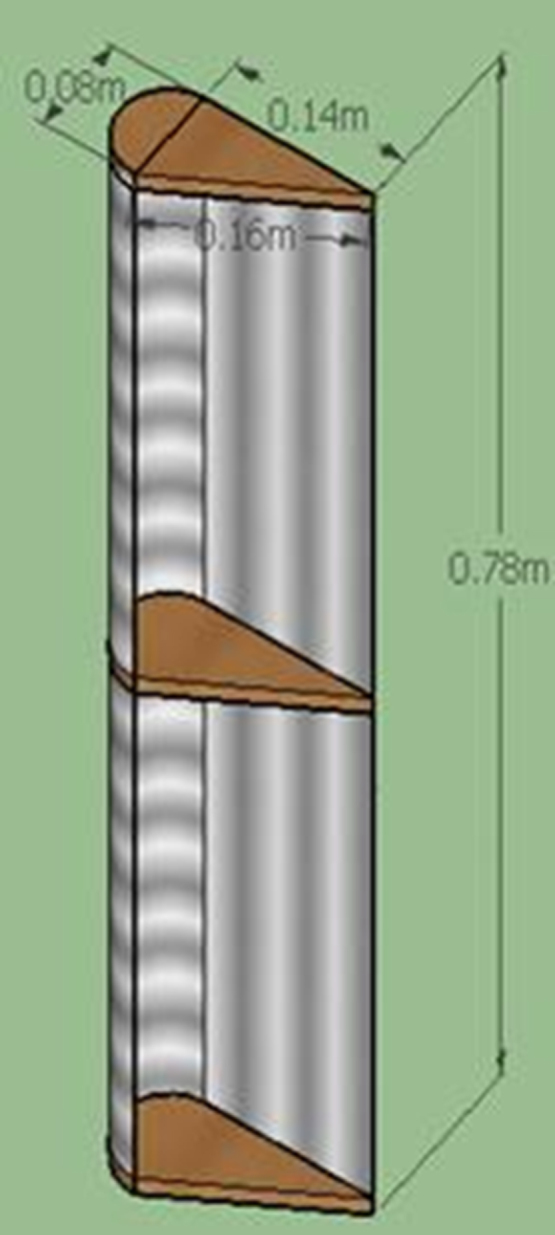

Schematic Lenz type blade.
Fig. 3
Fig. 3

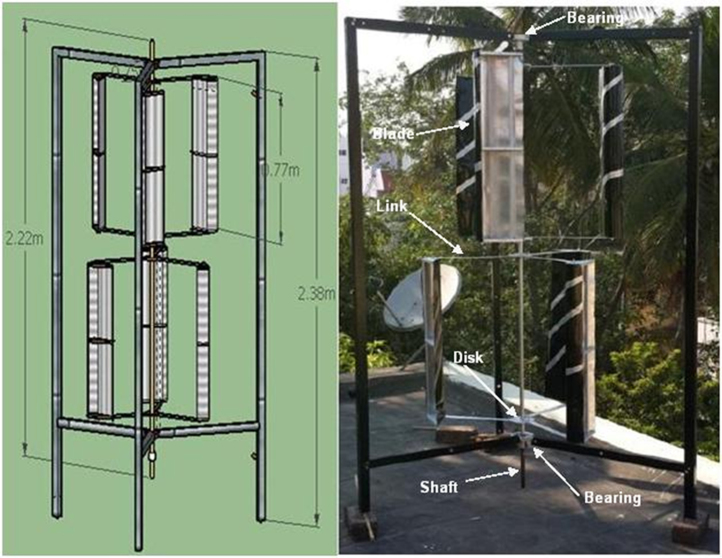

Schematic arrangement of the experimental Lenz type VAWT set up.
Fig. 4
Fig. 4

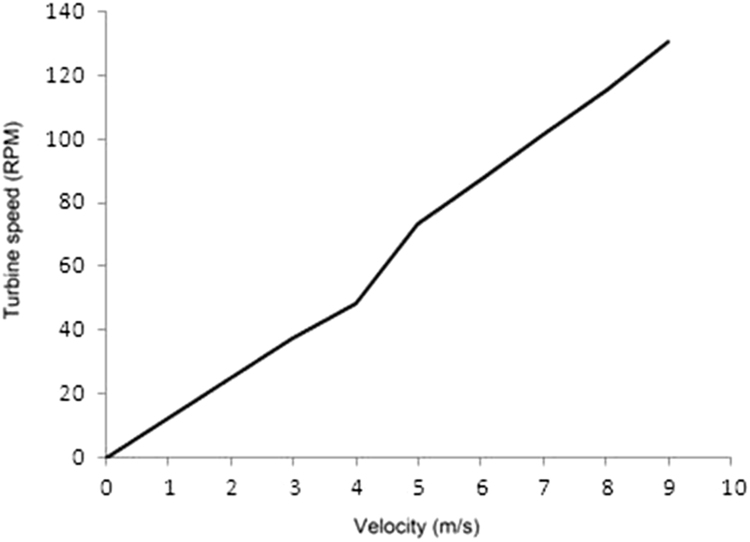

Wind turbine rotational speeds of Lenz type with wind velocity.
Fig. 5
Fig. 5

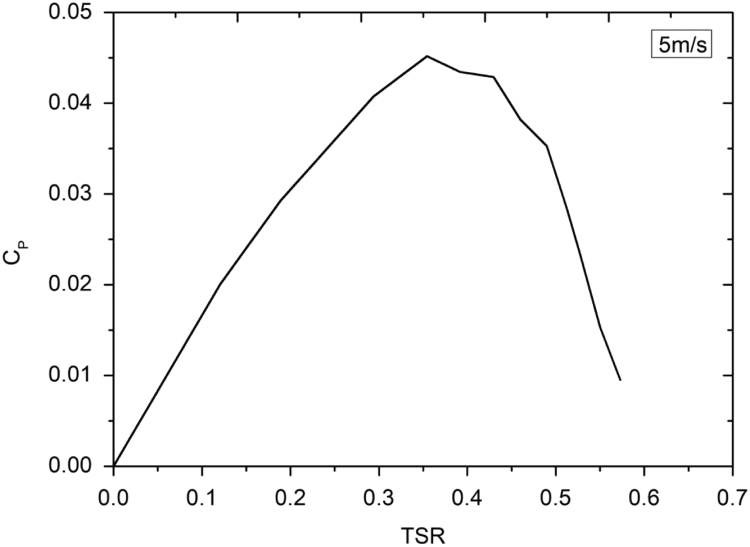

Variation of coefficient of power with tip speed ratio at wind velocity of 5 m/s.
Fig. 6
Fig. 6

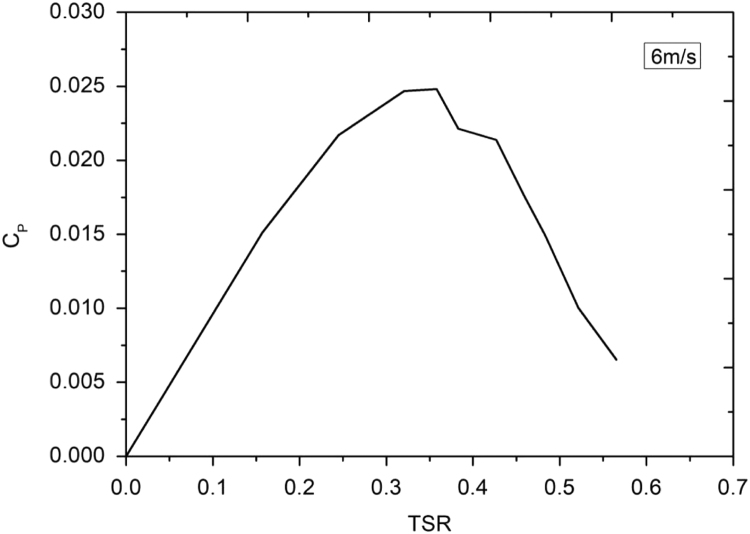

Variation of coefficient of power with tip speed ratio at wind velocity of 6 m/s.
Fig. 7
Fig. 7

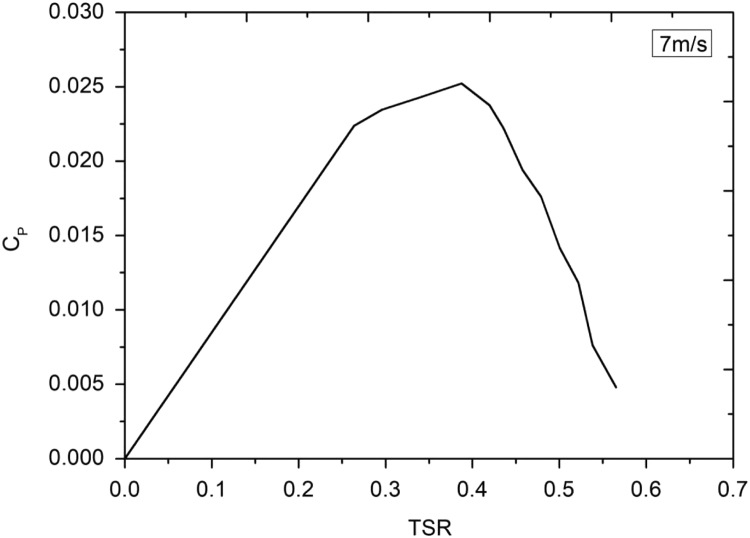

Variation of coefficient of power with tip speed ratio at wind velocity of 7 m/s.
Fig. 8
Fig. 8

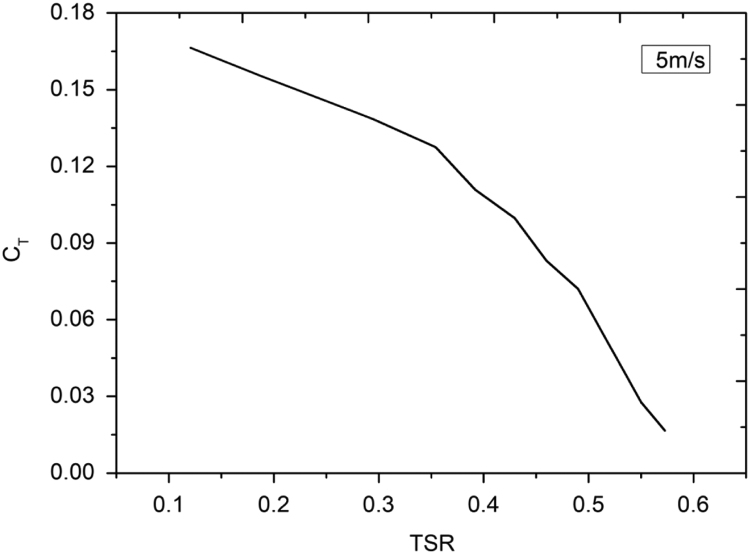

Variation of coefficient of torque with tip speed ratio at wind velocity of 5 m/s.
Fig. 9
Fig. 9
Variation of coefficient of torque with tip speed ratio at wind velocity of 6 m/s.
Fig. 10
Fig. 10
Variation of coefficient of torque with tip speed ratio at wind velocity of 7 m/s.
See this image and copyright information in PMC

References

    1. Deori Bitubishop, Barman Subroto, Das Suraz, Hussian Mukhtar, Basumatary Sachi Mohan, Sharma Kaushal Kumar. Experimental study on the performance of Lenz vertical axis wind turbine. J. Mater. Sci. Mech. Eng. 2015;2(9):62–64.
    1. H.P. Gohil, S.T. Patel, Design procedure for Lenz type vertical axis wind turbine for urban domestic application, International Journal for Scientific Research and Development, 2(3), pp. 1609–1613.
    1. Irwin John. Wind turbine blade CAD models used as scaffolding technique to teach design engineers. Eng. Des. Graph. J. 2013;77(2):17. (pages)
    1. E. Lenz, Lenz2 Turbine, 〈http://www.Windstuff.com/main/lenz2_turbine.htm〉.
    1. Menet J.L. A double strap Savonius rotor for local production of electricity: a design study. Renew. Energy. 2004;29(11):1843–1862.
