A review of biomarkers in peri-miniscrew implant crevicular fluid (PMICF)

Abstract

Background: The temporary anchorage devices (TADs) which include miniscrew implants (MSIs) have evolved as useful armamentarium in the management of severe malocclusions and assist in complex tooth movements. Although a multitude of factors is responsible for the primary and secondary stability of miniscrew implants, contemporary research highlights the importance of biological interface of MSI with bone and soft tissue in augmenting the success of implants. The inflammation and remodeling associated with MSI insertion or loading are reflected through biomarkers in peri-miniscrew implant crevicular fluid (PMICF) which is analogous to the gingival crevicular fluid. Analysis of biomarkers in PMICF provides indicators of inflammation at the implant site, osteoclast differentiation and activation, bone resorption activity and bone turnover. The PMICF for assessment of these biomarkers can be collected non-invasively via paper strips, periopaper or micro capillary pipettes and analysed by enzyme-linked immunosorbent assay (ELISA) or immunoassays. The markers and mediators of inflammation have been previously studied in relation to orthodontic tooth movement include interleukins (IL-1β, IL-2, IL-6 and IL-8), growth factors and other proteins like tumour necrosis factor (TNF-α), receptor activator of nuclear factor kappa-B ligand (RANKL), chondroitin sulphate (CS) and osteoprotegerin (OPG). Studies have indicated that successful and failed MSIs have different concentrations of biomarkers in PMICF. However, there is a lack of comprehensive information on this aspect of MSIs. Therefore, a detailed review was conducted on the subject.

Results: A literature search revealed six relevant studies: two on IL-1β; one on IL-2, IL-6 and IL-8; one on TNF-α; one on CS; and one on RANKL/OPG ratio. One study showed an increase in IL-1β levels upon MSI loading, peak in 24 hours (h), followed by a decrease in 21 days to reach baseline in 300 days. A 6.87% decrease in IL-2 levels was seen before loading and a 5.97% increase post-loading. IL-8 showed a 6.31% increase after loading and IL-6 increased by 3.08% before MSI loading and 15.06% after loading. RANKL/OPG ratio increased in loaded compared to unloaded MSIs.

Conclusions: Cytokines (mainly ILs and TNF-α) and RANKL/OPG ratio showed alteration in PMICF levels upon loading of MSIs as direct or indirect anchorage.

Keywords: Biomarker; IL-1β, IL-2, IL-6, IL-8; OPG; Orthodontic tooth movement (OTM); Peri-miniscrew implant crevicular fluid (PMICF); RANKL; TNF-α.

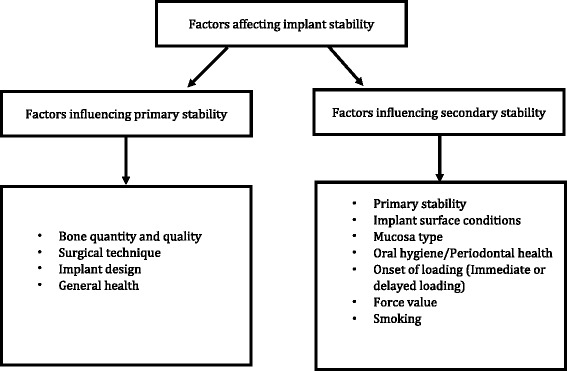

Fig. 1

Factors affecting implant stability
