Advances in stereotactic navigation for pelvic surgery

Abstract

Background: Stereotactic navigation could improve the quality of surgery for rectal cancer. Critical challenges related to soft tissue stereotactic pelvic navigation include the potential difference in patient anatomy between intraoperative lithotomy and preoperative supine position for imaging. The objective of this study was to determine the difference in patient anatomy, sacral tilt, and skin fiducial position between these different patient positions and to investigate the feasibility and optimal set-up for stereotactic pelvic navigation.

Methods: Four consecutive human anatomical specimens were submitted to repeated CT-scans in a supine and several degrees of lithotomy position. Patient anatomy, sacral tilt, and skin fiducial position were compared by means of an image computing platform. In two specimens, a 10-degree wedge was introduced to reduce the natural tilt of the sacrum during the shift from supine to lithotomy position. A simulation of laparoscopic and transanal surgical procedures was performed to assess the accuracy of the stereotactic navigation.

Results: An up-to-supracentimetric change in patient anatomy was noted between different patient positions. This observation was minimized through the application of a wedge. When switching from supine to another position, sacral retroversion occurred independent of the use of a wedge. There was considerable skin fiducial motion between different positions. Accurate stereotactic navigation was obtained with the least registration error (1.9 mm) when the position of the anatomical specimen was registered in a supine position with straight legs, without pneumoperitoneum, using a conventional CT-scan with an identical specimen positioning.

Conclusion: The change in patient anatomy is small during the sacral tilt induced by positional changes when using a 10-degree wedge, allowing for an accurate stereotactic surgical navigation. This opens up new promising opportunities to increase the quality of surgery for rectal cancer cases where it is difficult or impossible to identify and dissect along the anatomical planes.

Keywords: Anatomy; Computer-assisted; Neuronavigation; Operative; Rectal neoplasms; Stereotaxis techniques; Surgery; Surgical procedures.

Fig. 1

Different patient’s positions were investigated: supine, straight legs (A); Supine, hip abduction 60° (B); Hip flexion 45°, hip abduction 70° (C); Hip flexion 90°, hip abduction 80° (D); sagittal view without wedge (E); sagittal view with 10-degree wedge (F). Pneumoperitoneum as variable is not shown in this figure

Fig. 2

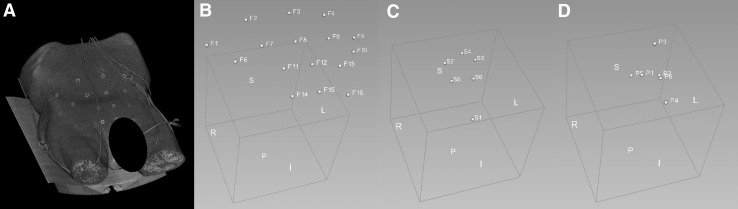

Markers were manually placed in the center of the skin fiducials in each CT-scan by using an image computing platform (3D Slicer) (B). The other markers S1-6 (C) and P1-6 (D) were placed at the anatomical landmarks as depicted in Table 2

Fig. 3

The sacral tilt angle is defined as the angle between the plane made up by S3–S5 and the vertical plane

Fig. 4

The distances between S4 and the six points, P1-P6, are depicted for the 3rd human anatomic specimen with (A) or without the wedge (B). The majority of the boxplots show a relative smaller width when using the 10-degree wedge as compared to when no wedge is used
